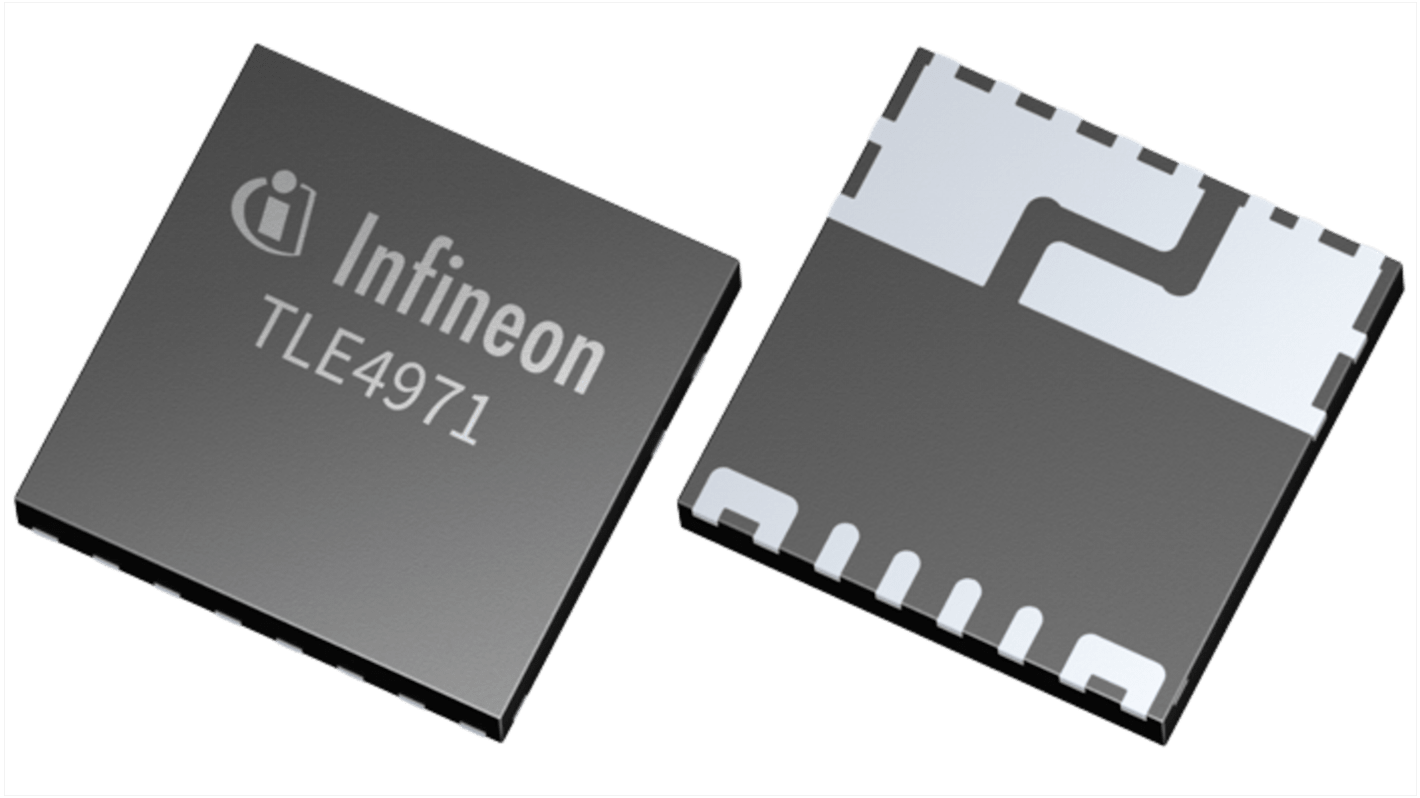

Infineon TLE4971A120N5UE0001XUMA1, Current Sensor 8-Pin, PG-TISON-8-5
- RS庫存編號:
- 266-7104
- 製造零件編號:
- TLE4971A120N5UE0001XUMA1
- 製造商:
- Infineon
2493 現貨庫存，可於3工作日發貨。
已增加
單價 个
HK$58.43
| 單位 | Per unit |
| 1 - 9 | HK$58.43 |
| 10 - 99 | HK$52.71 |
| 100 - 249 | HK$50.27 |
| 250 - 499 | HK$43.64 |
| 500 + | HK$41.67 |
- RS庫存編號:
- 266-7104
- 製造零件編號:
- TLE4971A120N5UE0001XUMA1
- 製造商:
- Infineon
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
XENSIV™ - TLE4971-A120N5-U-E0001 high precision coreless current sensor with analog interface, UL certified device
The Infineon XENSIV TLE4971-A120N5-E0001 is a new automotive qualified pre-programmed 120A sensor. It serves the unique ±120A measurement rage, the highest for current sensors with integrated current rail in a small SMD body. Due to the coreless magnetic current sensing principle, saturation or hysteresis effects commonly known from sensors using flux concentration techniques are avoided. The analog interface and two dedicated fast over-current detection pins with a reaction time of less than 1μs ensures a safe operation of systems.
Infineon's well-established and robust Hall technology enables accurate and highly linear measurement of AC and DC currents with a full measurement range up to ±120A full scale range. All negative effects (saturation, hysteresis) commonly known from sensors using flux concentration techniques are avoided.
The digitally assisted analog concept of TLE4971 offers superior stability over temperature and lifetime thanks to the proprietary digital stress and temperature compensation. The differential measurement principle allows great stray field suppression for operation in harsh environments up to 125°C.
We offer two derivatives:
•TLE4971-A120N5-U-E0001 with 120A measurement range, UL certified device
•TLE4971-A120N5-E0001 with 120A measurement range
Summary of Features
•Integrated current rail with typical 220μΩ insertion resistance enables ultra-low power loss
•SMD package with very small form factor, 8x8mm for easy integration and board area saving
•Single supply voltage, 3.1V to 3.5V
•Highly accurate, scalable, DC & AC current sensing
•Typical bandwidth of 210kHz
•Excellent stability of offset over temperature and lifetime
•High robustness to voltage slew rates up to 10V/ns
•Galvanic functional isolation up to 1150V peak VIORM. Partial discharge capability of at least 1200V. 4mm clearance and creepage.
•Differential sensor principle ensures superior magnetic stray field suppression
•Two independent fast Over-Current Detection (OCD) pins with configurable thresholds enable protection mechanisms for power circuitry (typical 0,7μs)
•TS: -40…+125°C
•AEC-Q100 grade 1 qualified
•Pre-calibrated sensor
Potential Applications
•On board charger (OBC)
•Electrical drives (up to 690V)
•Auxiliary drives
•Photovoltaic inverter
•EV-chargers
•General purpose inverters
•Power supplies
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Offset Voltage | 1.5V |
| Package Type | PG-TISON-8-5 |
| Pin Count | 8 |
| Mounting Type | Surface Mount |
