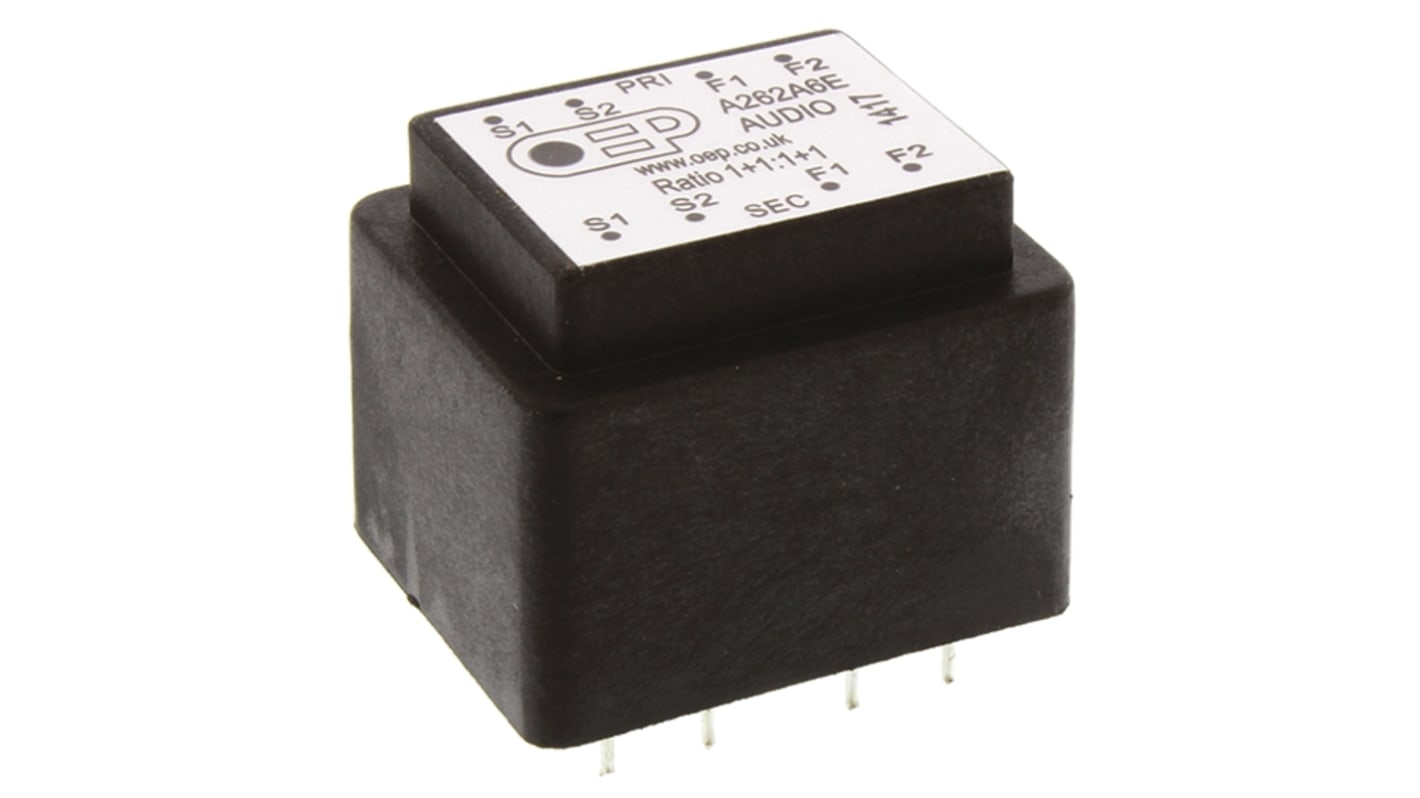

Through Hole Audio Transformer 150Ω 100mW Hz @ 300, 1mW Hz @ 30

  • RS庫存編號 210-6431
  • 製造零件編號 A262A6E
  • 製造商 OEP
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

High Performance Encapsulated AF, PCB Mount

From OEP, a range of high performance, industry standard PCB mounting audio frequency transformers. The dual primary and secondary windings of these frequency transformers provide a wide range of impedance matching ratios to suit many input, interstage and output applications.

Features and Benefits:

• Industry standard 0•1in. grid spacing
• Resin encapsulated in glass filled nylon case
• Foil interwinding screen
• Optional Mu-metal, a nickel-iron alloy, screening can (stock no. 210-6469)

The OEP Audio Frequency Transformer range also includes:

210-6403 is a 3.75Ω, 6.3+6.3:1+1 PCB mount audio transformer
210-6419 is a 600Ω, 1+1:2+2 PCB mount audio transformer
210-6425 is a 600Ω, 1+1:6.45+6.45 PCB mount audio transformer
210-6431 is a 150Ω, 1+1:1+1 PCB mount audio transformer
210-6447 is a 600Ω, 1+1:1+1 PCB mount audio transformer
210-6469 is an optional Mu-metal, nickel-iron alloy screening can

//media.rs-online.com/t_line/L217781-01.gif
規格
Attribute Value
Primary Impedance 150Ω
Secondary Impedance 150Ω
Primary DC Resistance 15Ω
Power Rating 1mW Hz @ 30, 100mW Hz @ 300
Secondary DC Resistance 20Ω
Dimensions 28 x 22 x 23mm
Mounting Type Through Hole
Termination Type Pin
Depth 23mm
Length 28mm
Width 22mm
Turns Ratio 1+1:1+1
Maximum Operating Frequency 30kHz
Minimum Operating Frequency 30Hz
139 現貨庫存,可於3工作日發貨。
單價 個
HK$ 111.58
(不含稅)
單位
Per unit
1 - 9
HK$111.58
10 - 24
HK$110.93
25 - 49
HK$90.59
50 - 249
HK$89.93
250 +
HK$89.28
