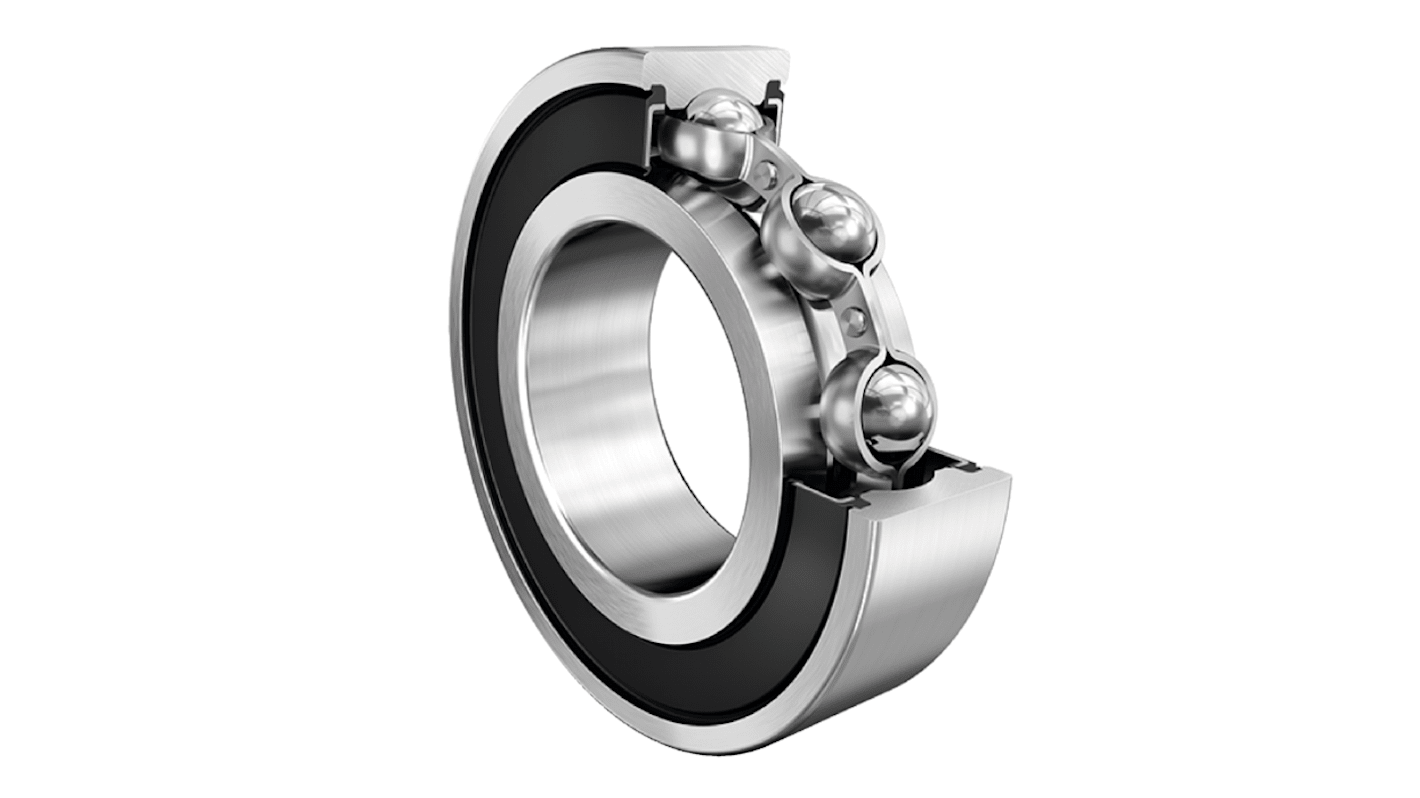

FAG 6015-2RSR-C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 75mm I.D, 115mm O.D
- RS庫存編號:
- 260-0425
- 製造零件編號:
- 6015-2RSR-C3
- 製造商:
- FAG
- RS庫存編號:
- 260-0425
- 製造零件編號:
- 6015-2RSR-C3
- 製造商:
- FAG
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- DE
產品詳細資訊
The FAG deep groove ball bearing has 75 mm bore diameter and 20 mm width with 15.8 calculation factor.
Operating temperature -20 to 100 °C
規格
Attribute | Value |
|---|---|
| Inside Diameter | 75mm |
| Outside Diameter | 115mm |
| Race Width | 20mm |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing |
| Sealing Arrangement | Both Sides Sealed |
| Bearing Clearance | C3 |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
| Number of Rows | 1 |
| Static Load Rating | 33.5kN |
| Dynamic Load Rating | 42kN |
| Bore Type | Parallel |
| Bearing Series | 0 Extra Light |
| Race Type | Plain |
| Partial Bearing Code | 6015 |
