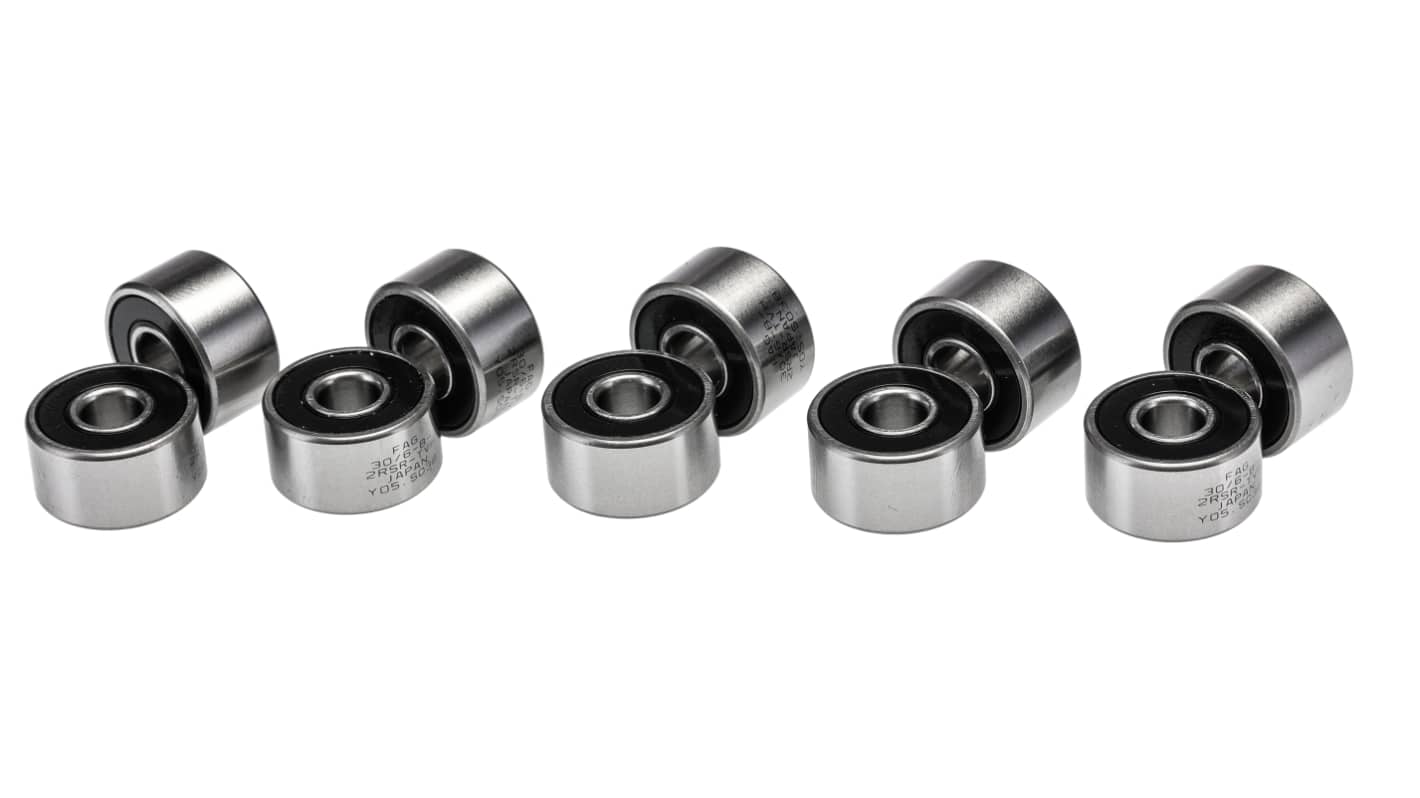

FAG 30/6-B-2RSR-TVH-HLC Double Row Angular Contact Ball Bearing- Both Sides Sealed 6mm I.D, 17mm O.D

RS庫存編號:: 260-0792
製造零件編號:: 30/6-B-2RSR-TVH-HLC
製造商:: FAG

FAG 30/6-B-2RSR-TVH-HLC Double Row Angular Contact Ball Bearing- Both Sides Sealed 6mm I.D, 17mm O.D

查看所有Ball Bearings

Price 个（每托盘 10 ）**

HK$286.43

100 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

即時庫存查詢

單位	每單位	每包**
10 +	HK$286.43	HK$2,864.30

** 參考價格

RS庫存編號:: 260-0792
製造零件編號:: 30/6-B-2RSR-TVH-HLC
製造商:: FAG

Datasheet - 30/6-B-2RSR-TVH-HLC

Schaeffler 0 Extra Light Series Angular Contact Ball Bearing, 6mm Inside Diameter, 17mm Outside Diameter - 30/6-B-2RSR-TVH-HLC

This angular contact ball bearing is a highly effective solution for various applications in electronics industries. With a bore diameter of 6mm and an outer diameter of 17mm, this double row ball bearing is designed for enhanced stability and performance. Featuring sealed arrangements on both sides, it ensures increased longevity by protecting against contamination.

Features & Benefits

• Double row design improves load distribution and stability
• Sealed ball bearings prevent ingress of dirt and moisture
• Steel ball bearings enhance durability and load capacity
• High dynamic load rating of 3.05kN supports demanding applications
• Polyamide cage reduces friction for efficient operation
• Operates effectively in temperatures ranging from -20°C to 100°C

Applications

• Used for precise positioning in automated machinery
• Employed in electric motors requiring high load capacity
• Suitable for in robotics for smooth motion
• Utilised in conveyor systems to enhance operational reliability

What are the load ratings associated with this bearing?

The bearing provides a basic dynamic load rating of 3.05kN and a static load rating of 1.4kN, making it suitable for various heavy-duty applications involving rotational movement.

How does the sealing arrangement benefit operational longevity?

The dual sealing arrangement effectively protects against contamination, thereby minimising wear and prolonging the bearing's service life under challenging conditions.

What specifications should be considered for proper installation?

It's essential to ensure that the shaft shoulder has a minimum diameter of 8mm and the housing shoulder does not exceed 15mm to facilitate correct mounting of the bearing.

What type of lubrication is recommended for optimal performance?

While the bearing is sealed, periodic lubrication may still be necessary depending on the application and operational environment. Consult specific operational guidelines for detailed advice.

What is the significance of the contact angle in this bearing?

The 25° contact angle assists in optimising load handling capabilities, allowing for greater thrust loads and improving performance in angular contact applications.

Attribute	Value
Inside Diameter	6mm
Outside Diameter	17mm
Race Width	9mm
Ball Bearing Type	Double Row Angular Contact Ball Bearing
Sealing Arrangement	Both Sides Sealed
Bearing Clearance	CN
Material	Steel
Ball Material	Steel
Cage Material	Polyamide
Number of Rows	2
Static Load Rating	1.4kN
Dynamic Load Rating	3.05kN
Bore Type	Parallel
Bearing Series	0 Extra Light
Partial Bearing Code	30/6
Race Type	Plain
