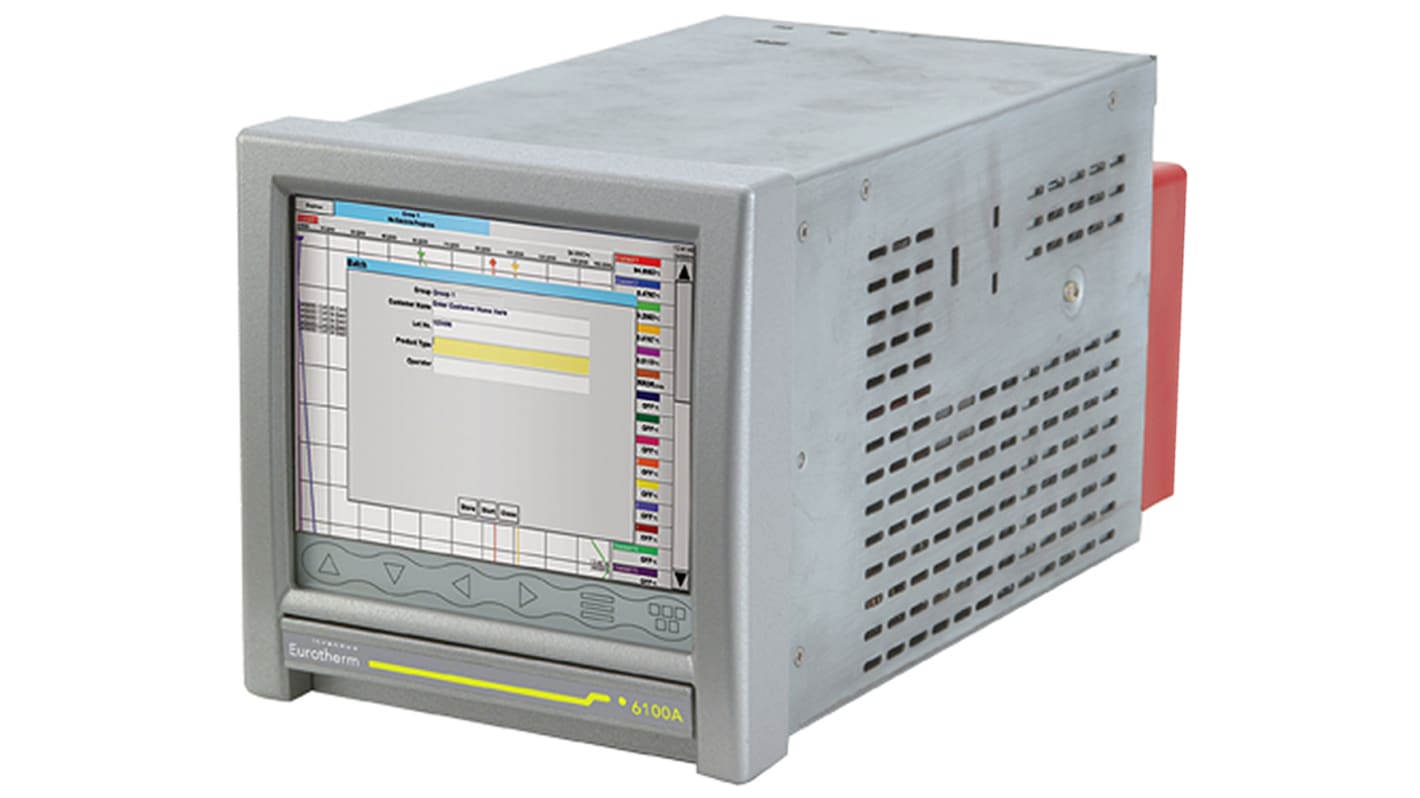

Eurotherm 6100A, 18 Channel, Paperless Chart Recorder Measures Current, Millivolt, Resistance, Voltage

  • RS庫存編號 812-3915
  • 製造零件編號 6100A/U18/PANEL/NOLCK/06GROUP/BATCH
  • 製造商 Eurotherm
COO (Country of Origin): PL

6100A Series - Paperless Graphic Chart Recorder

The 6100A Chart Recorder offers unrivalled input accuracy with a 125ms total sample rate for up to 18 input channels. Input channels are freely configurable to suit your process requirements. Each instrument has an intuitive, touch screen display to enable operators to clearly view process data in varying formats.

All have onboard Flash data storage capability, Ethernet communication and choice of Compact Flash or SD Card. Data is stored in a tamper resistant binary format that can be used for secure, long term records of your process.

5.5" 1/4VGA touchscreen display
Custom graphic displays
Secure data recording
Up to 18 universal input channels
Adaptive recording
Math functions, totalizers, timers, counters
Time synchronization (SNTP)
Electronic signatures
Security Manager
Batch functionality: 812-3902 & 812-3915
Audit Trail functionality: 812-3906 & 812-3918

Attribute Value
Chart Type Paperless
Parameter Measured Current, Millivolt, Resistance, Voltage
Maximum Current Measurement 20mA
Maximum Voltage Measurement 10V
Maximum Resistance Measurement 6 kΩ
Recorder Input Type Thermocouple
Number of Inputs 18
Number of Outputs 3
IP Rating IP66
Model Number p 6100A
Best Current Measurement Accuracy 0.1 %
Battery Life 1 yr
Weight 3kg
Height 144mm
Dimensions 144 x 246.5 x 144mm
Resistance Measurement Resolution 148mΩ
Maximum Operating Voltage 265V ac
Length 144mm
Power Source Battery
Width 246.5mm
Battery Type Lithium, Poly-Carbonmonofluoride
Best Voltage Measurement Accuracy 0.1 %
Minimum Operating Voltage 85V ac
