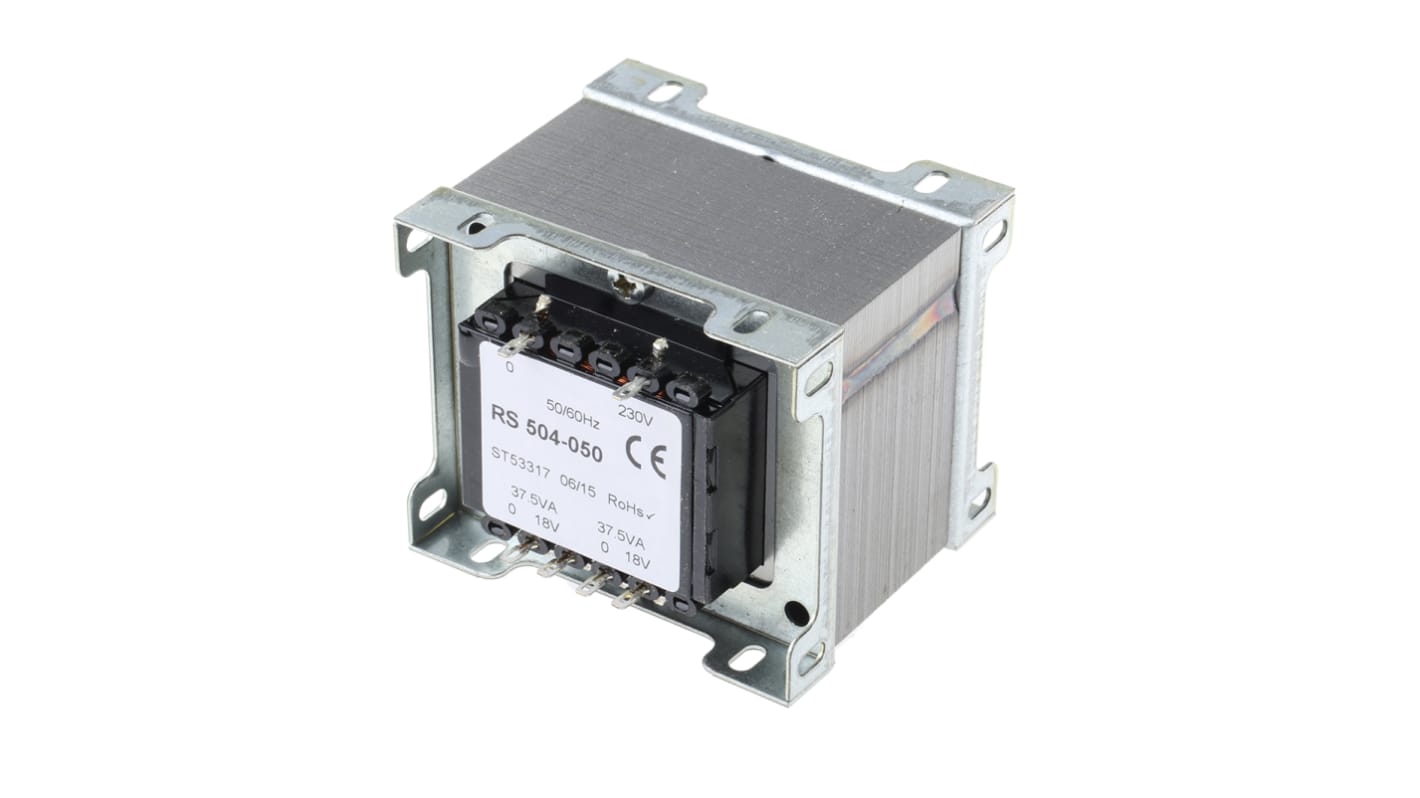

RS PRO 75VA 2 Output Chassis Mounting Transformer, 18V ac, IEC 61558-2-6
- RS庫存編號:
- 504-050
- 製造商:
- RS PRO
當前暫無庫存，可於2024/5/10發貨，3 工作日送達。
已增加
單價 个
HK$495.55
| 單位 | Per unit |
| 1 - 9 | HK$495.55 |
| 10 - 24 | HK$464.32 |
| 25 - 49 | HK$460.17 |
| 50 - 249 | HK$459.49 |
| 250 + | HK$378.17 |
- RS庫存編號:
- 504-050
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- PL
產品詳細資訊
Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA
Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA(503-928)
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA(503-928)
Approvals
8888
Standards
BS3535; EN 60 742
規格
Attribute | Value |
|---|---|
| Primary Voltage Rating | 230V ac |
| Secondary Voltage Rating | 18V ac |
| Power Rating | 75VA |
| Number of Outputs | 2 |
| Mounting Type | Chassis |
| Length | 79mm |
| Width | 75mm |
| Depth | 65mm |
| Dimensions | 79 x 75 x 65mm |
| Fixing Hole Diameter | 4.7 x 7.9mm |
| Weight | 1.5kg |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Standards Met | IEC 61558-2-6 |
