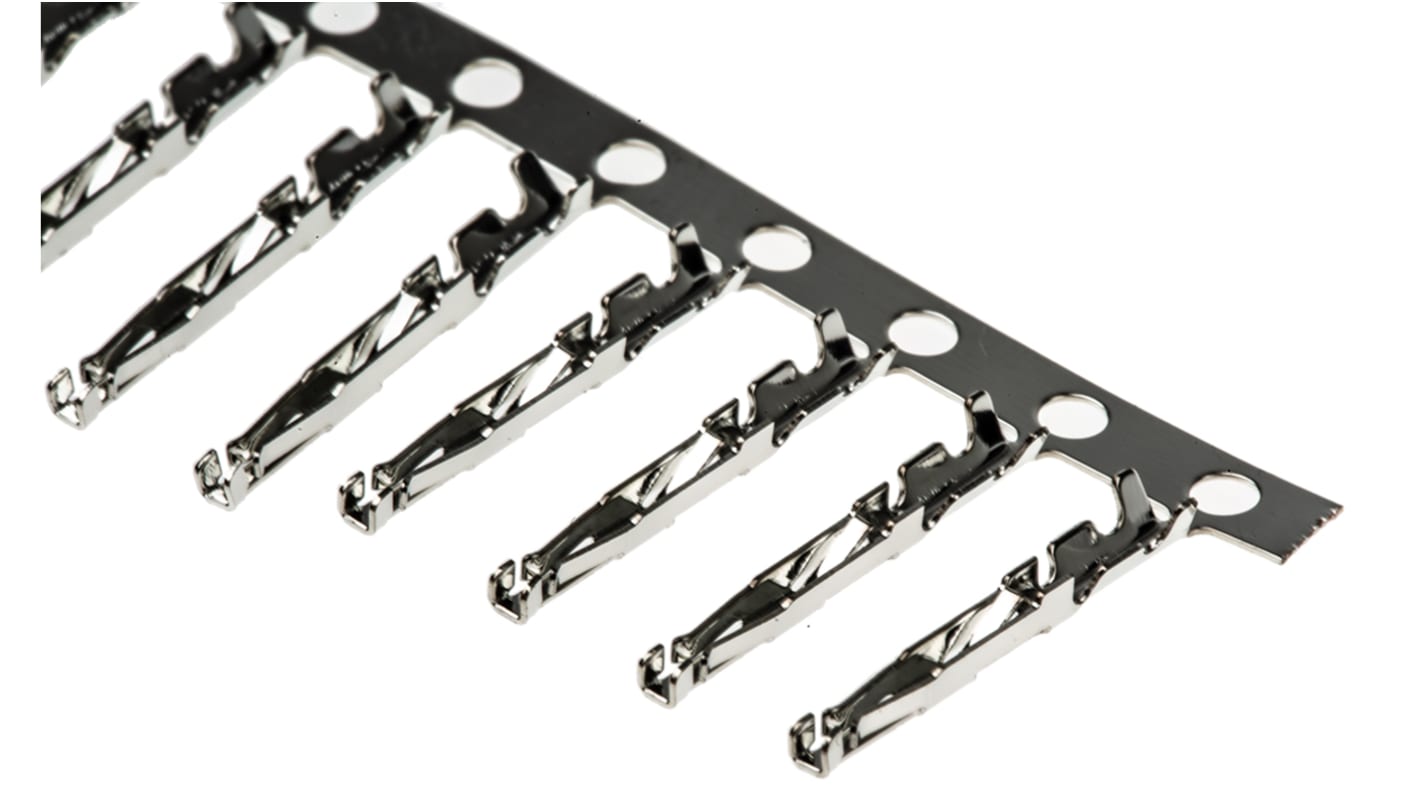

RS PRO MDC Series, 1A Female Crimp Contact for use with MDR Series Connector, Wire size 24 → 28 AWG

  • RS庫存編號 183-1811
  • 製造商 RS PRO
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): TW
產品詳細資訊

Panel Socket Shell

Flange mounting
Solder tags for ground connection
Moulded PBT body
Tin plated phosphor bronze crimp and poke home contacts (order separately). Accept 24, 26, 28 awg conductors
Voltage rating 50V ac/dc
Current rating 1A withstand
Voltage 500V for 1 minute
Contact resistance <30mΩ
Panel socket contacts stock no. 183-1811

Note

Great care must be taken when using the recommended crimp tool (stock No. 210-5012 ), in that the contact body is not over-crimped.

//media.rs-online.com/t_line/L183176-01.gif

Mini-Din

Connectors and moulded leads, available in the mini-DIN style configuration commonly used in communication and computer applications. Their small physical size and high contact density make them very suitable for transmitting shielded data signals.

規格
Attribute Value
Gender Female
Wire Size 24 → 28 AWG
Termination Method Crimp
Series MDC
For Use With MDR Series Connector
Current Rating 1A
Length 15.2mm
Contact Plating Tin
Voltage Rating 50 V ac/dc
Contact Material Phosphor Bronze
Maximum Contact Resistance 30mΩ
Minimum Operating Temperature -40°C
Maximum Operating Temperature +160°C
Mounting Type Chassis Mount
10570 現貨庫存,可於3工作日發貨。
單價 /個 (每包:10個)
HK$ 1.736
(不含稅)
單位
Per unit
Per Pack*
10 - 90
HK$1.736
HK$17.36
100 - 490
HK$1.645
HK$16.45
500 - 2490
HK$1.589
HK$15.89
2500 - 4990
HK$1.546
HK$15.46
5000 +
HK$1.493
HK$14.93
* 參考價格
