產品概覽和技術數據資料表
法例與合規
產品詳細資訊

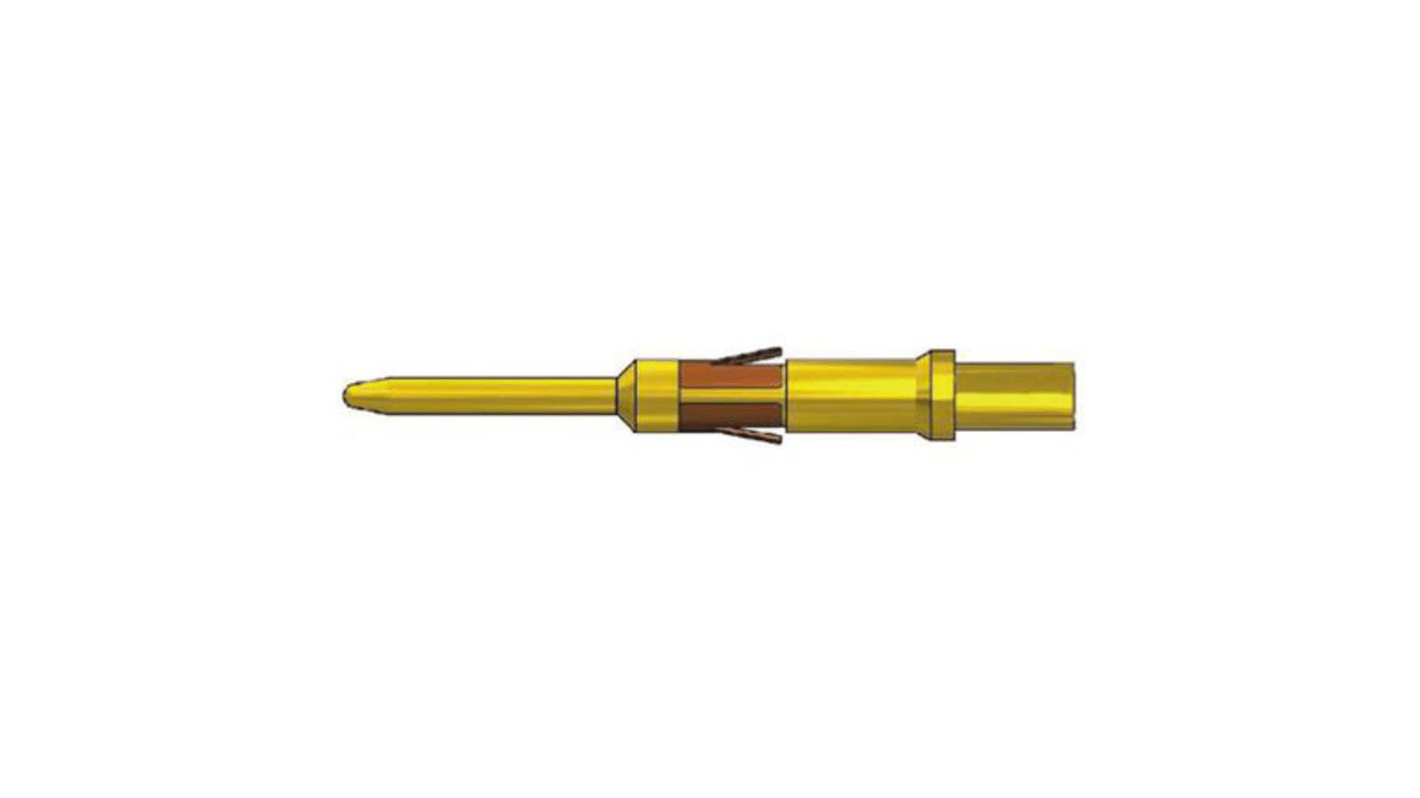

AB Connectors ABCIRP Connector Contacts
A comprehensive range of male and female connector contacts suitable for use with the ABCIRP range of MIL-C-5015 derived square flange receptacle mount connectors and cable mount plug connectors.
Copper alloy contacts
Industry standard F80 design
Beryllium copper retention clip
Industry standard F80 design
Beryllium copper retention clip
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
AB Connectors, ABCIRP Connector Range
規格
Attribute | Value |
---|---|
Gender | Male |
Contact Size | 16 |
Wire Size | 0.93 → 1.5 mm² |
Termination Method | Crimp |
Series | ABCIRP |
For Use With | ABCIRP Series |
Current Rating | 13A |
Length | 31.75mm |
Contact Plating | Gold |
Contact Material | Copper Alloy |
Minimum Operating Temperature | -55°C |
Mounting Type | Cable Mount |
Maximum Operating Temperature | +125°C |
