Bourns 4.7 mH 0.2 A Common Mode Choke 0.70Ω
- RS庫存編號:
- 172-8528
- 製造零件編號:
- DR331-475BE
- 製造商:
- Bourns
10500 現貨庫存，可於3工作日發貨。
已增加
單價 个（每带 1500 ）
HK$3.785
| 單位 | Per unit | Per Reel* |
| 1500 - 6000 | HK$3.785 | HK$5,677.50 |
| 7500 + | HK$3.709 | HK$5,563.50 |
| * 參考價格 | ||
- RS庫存編號:
- 172-8528
- 製造零件編號:
- DR331-475BE
- 製造商:
- Bourns
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

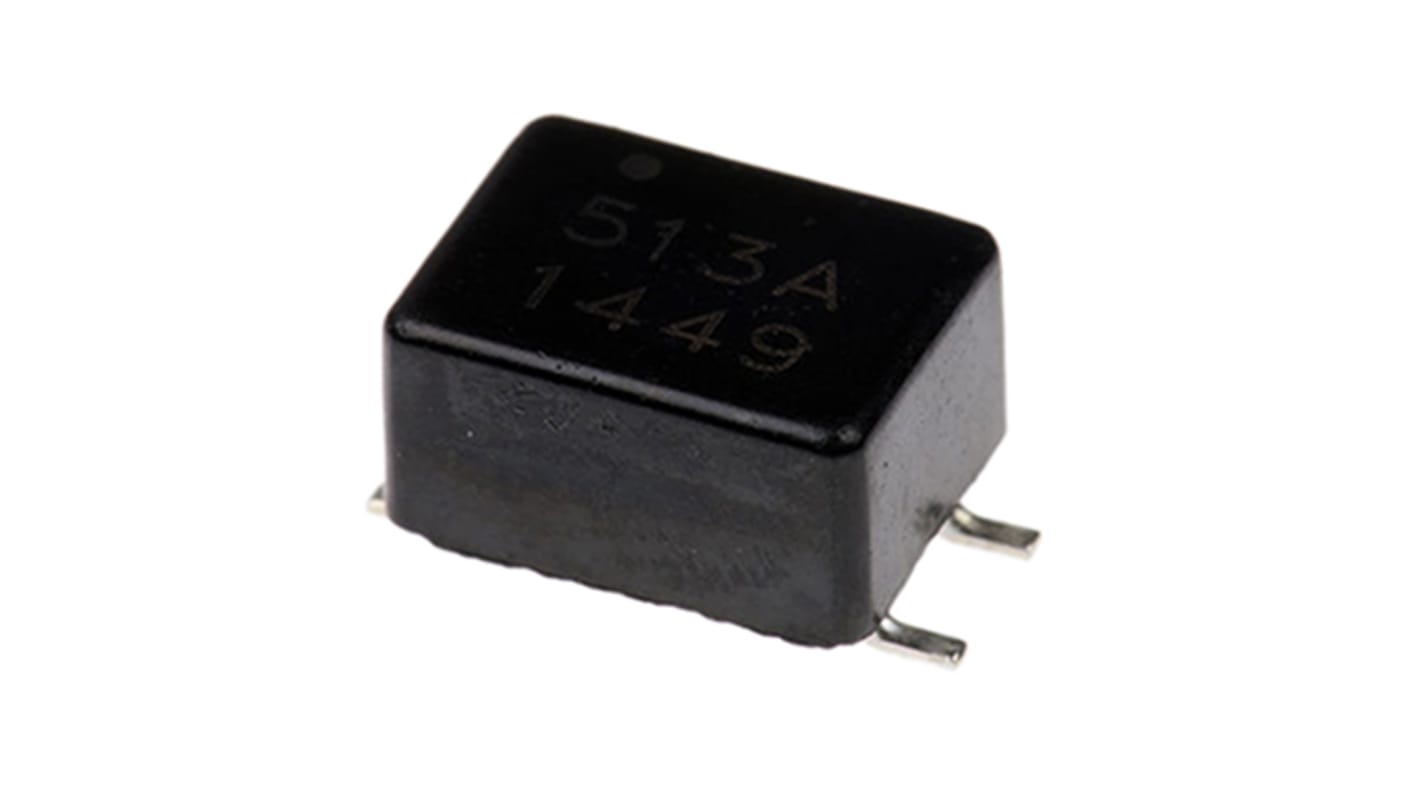

Bourns DR331 Series SMD Common Mode Chokes
RoHS compliant
Bifilar or sector windings
Wide frequency range over 1000MHz
Rated current 0.2 to 0.5A
Open construction is more economical than DR332 Series
Applications in the suppression of EMI in data and signal lines
Bifilar or sector windings
Wide frequency range over 1000MHz
Rated current 0.2 to 0.5A
Open construction is more economical than DR332 Series
Applications in the suppression of EMI in data and signal lines
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Bourns SMD Common Mode Chokes
規格
Attribute | Value |
|---|---|
| Inductance | 4.7 mH |
| Series | DR331 |
| Test Frequency | 100 KHz |
| DC Resistance | 0.70Ω |
| Maximum Current | 0.2 A |
| Dimensions | 7.3 x 5.4 x 4.7mm |
| Operating Temperature Range | -40°C → +135°C |
| Mounting Type | Axial |
| Termination Style | Solder Pad |
| Length | 7.3mm |
| Maximum Operating Temperature | +135°C |
| Minimum Operating Temperature | -40°C |
| Depth | 5.4mm |
| Height | 4.7mm |
