- RS庫存編號:
- 774-0553
- 製造零件編號:
- B82787C0104H002
- 製造商:
- EPCOS
- RS庫存編號:
- 774-0553
- 製造零件編號:
- B82787C0104H002
- 製造商:
- EPCOS
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

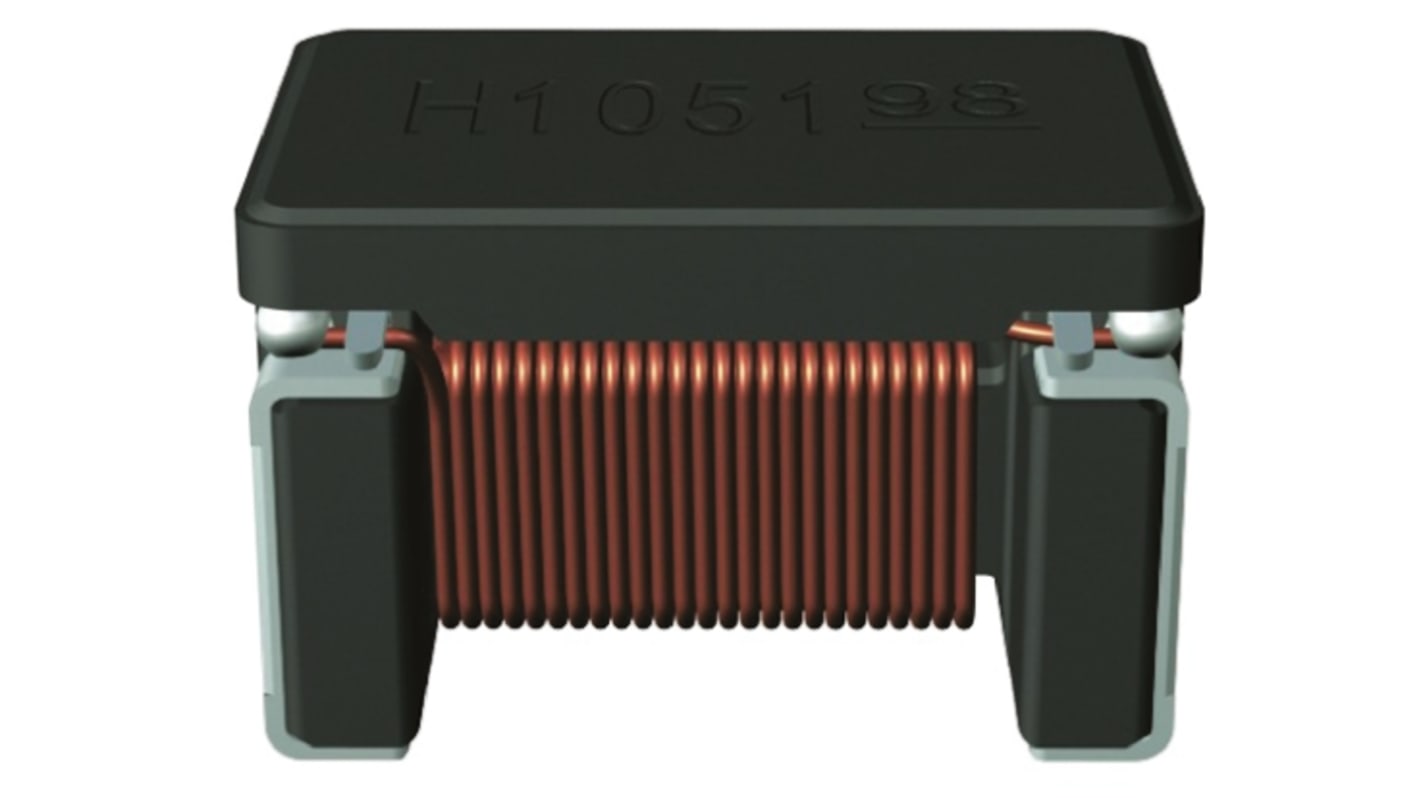

Epcos 1812 ACT45B Series Common Mode Chokes
From Epcos, these ACT45B series common mode chokes are for data and signal line applications. The ACT45Bs are current-compensated double choke chokes with a ferrite core and are designed for Automotive CAN bus system applications. They are suitable for lead-free re-flow soldering as referenced in JEDEC J-STD 020D.
Features and Benefits:
Common-mode chokes, EIA 1812
Enamel copper wire winding
Winding welded to terminals
Qualified to AEC-Q200
RoHS-compatible
Enamel copper wire winding
Winding welded to terminals
Qualified to AEC-Q200
RoHS-compatible
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Epcos SMD Common Mode Chokes
規格
Attribute | Value |
---|---|
Inductance | 100 μH |
Series | ACT45B |
Impedance | 2000 Ω |
Test Frequency | 10 MHz |
DC Resistance | 2Ω |
Maximum Current | 150 mA |
Dimensions | 4.5 x 3.2 x 2.8mm |
Operating Temperature Range | -40 → +150 °C |
Automotive Standard | AEC-Q200 |
Mounting Type | Surface Mount |
Termination Style | Surface Mount |
Package/Case | SMD |
Length | 4.5mm |
Depth | 3.2mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +150°C |
Height | 2.8mm |
