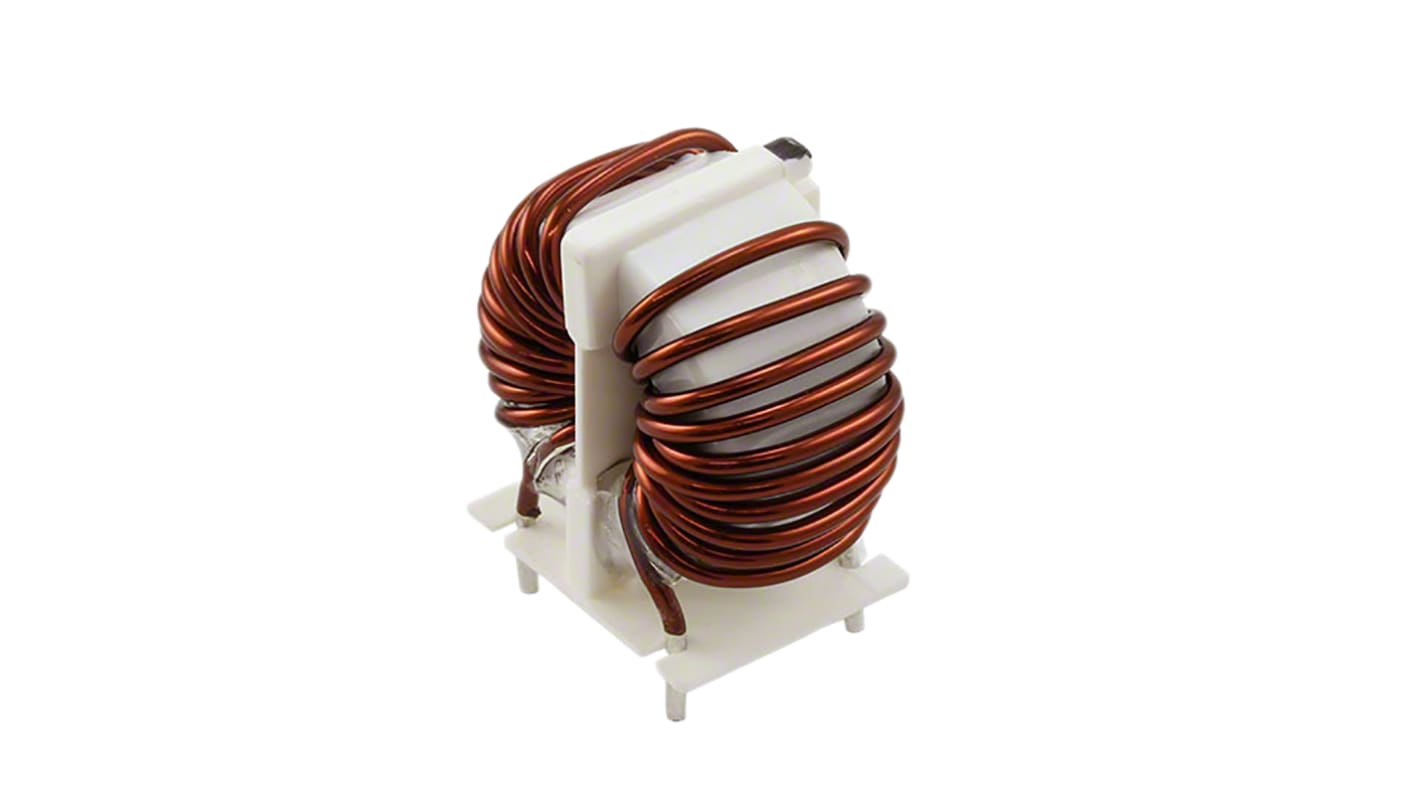

KEMET 500 μH 15 A Common Mode Choke 8mΩ
- RS庫存編號:
- 863-3771P
- 製造零件編號:
- SC-15-05J
- 製造商:
- KEMET
- RS庫存編號:
- 863-3771P
- 製造零件編號:
- SC-15-05J
- 製造商:
- KEMET
法例與合規
產品詳細資訊
Kemet SC-J Series Terminal Base Type Common Mode Chokes
Kemet SC Coils, SC-J Terminal Base Type AC line filters, are suitable for use as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available.
Rated currents up to 18 A
DC resistances as low as 7 mΩ
Inductances up to 8 mH
DC resistances as low as 7 mΩ
Inductances up to 8 mH
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Inductance | 500 μH |
| Series | SC-J |
| Test Frequency | 100 KHz |
| DC Resistance | 8mΩ |
| Maximum Current | 15 A |
| Dimensions | 34 x 23 x 33mm |
| Operating Temperature Range | -25°C → +120°C |
| Mounting Type | Through Hole |
| Termination Style | Solder Pad |
| Length | 34mm |
| Height | 33mm |
| Maximum Operating Temperature | +120°C |
| Depth | 23mm |
| Minimum Operating Temperature | -25°C |
