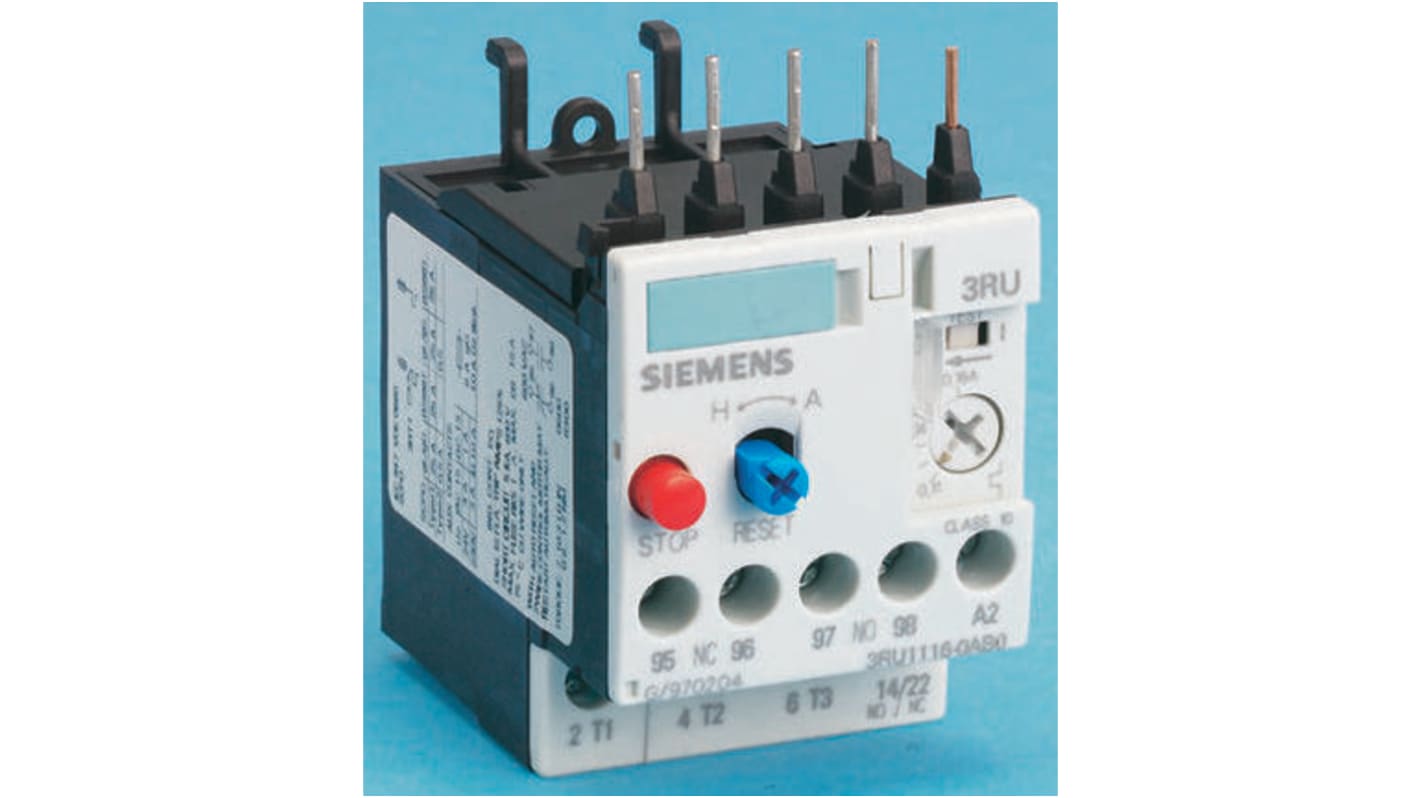

Siemens 3RU Overload Relay 1NO + 1NC, 0.7 → 1 A F.L.C, 1 A Contact Rating, 0.25 kW, 3P, Sirius Classic
- RS庫存編號:
- 243-6811
- 製造零件編號:
- 3RU1116-0JB0
- 製造商:
- Siemens
此產品已停售
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
- RS庫存編號:
- 243-6811
- 製造零件編號:
- 3RU1116-0JB0
- 製造商:
- Siemens
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
Overload Relays – 3RU11 Range
Trip Class 10
Coil and auxiliary contact repeat terminals
Trip fault indication
Manual/auto reset
Single phase differential protection
Temperature compensated trip: -20°C to +60°C
Coil and auxiliary contact repeat terminals
Trip fault indication
Manual/auto reset
Single phase differential protection
Temperature compensated trip: -20°C to +60°C
Note
The width and height measurements of the overload relays are dependent on the contactor they are used on.
Standards
IEC947, VDE0990, EN60947
Warning
This product is in obsolescence mode and is due for discontinuation by the manufacturer. We recommend that you review the alternative highlighted by the manufacturer. Alternatively, refer to the cross reference list in the Technical Reference section which highlights the upgrade path for your current generation of products.
Approvals
UL, CSA
規格
Attribute | Value |
|---|---|
| FLC Motor Rating | 0.7 → 1 A |
| Contact Current Rating | 1 A |
| Range | Sirius Classic |
| Pole Configuration | 3P |
| Series | 3RU |
| Mounting Style | Direct Contactor |
| Power Rating | 0.25 kW |
| Normal State Configuration | NO/NC |
| Reset Method | Automatic, Manual |
| Terminal Type | Screw |
| Number Of Auxiliary Contacts | 2 |
| Width | 45mm |
| Depth | 78mm |
| Length | 87mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -20 → +70 °C |
| Contact Voltage Rating | 690 V ac |
