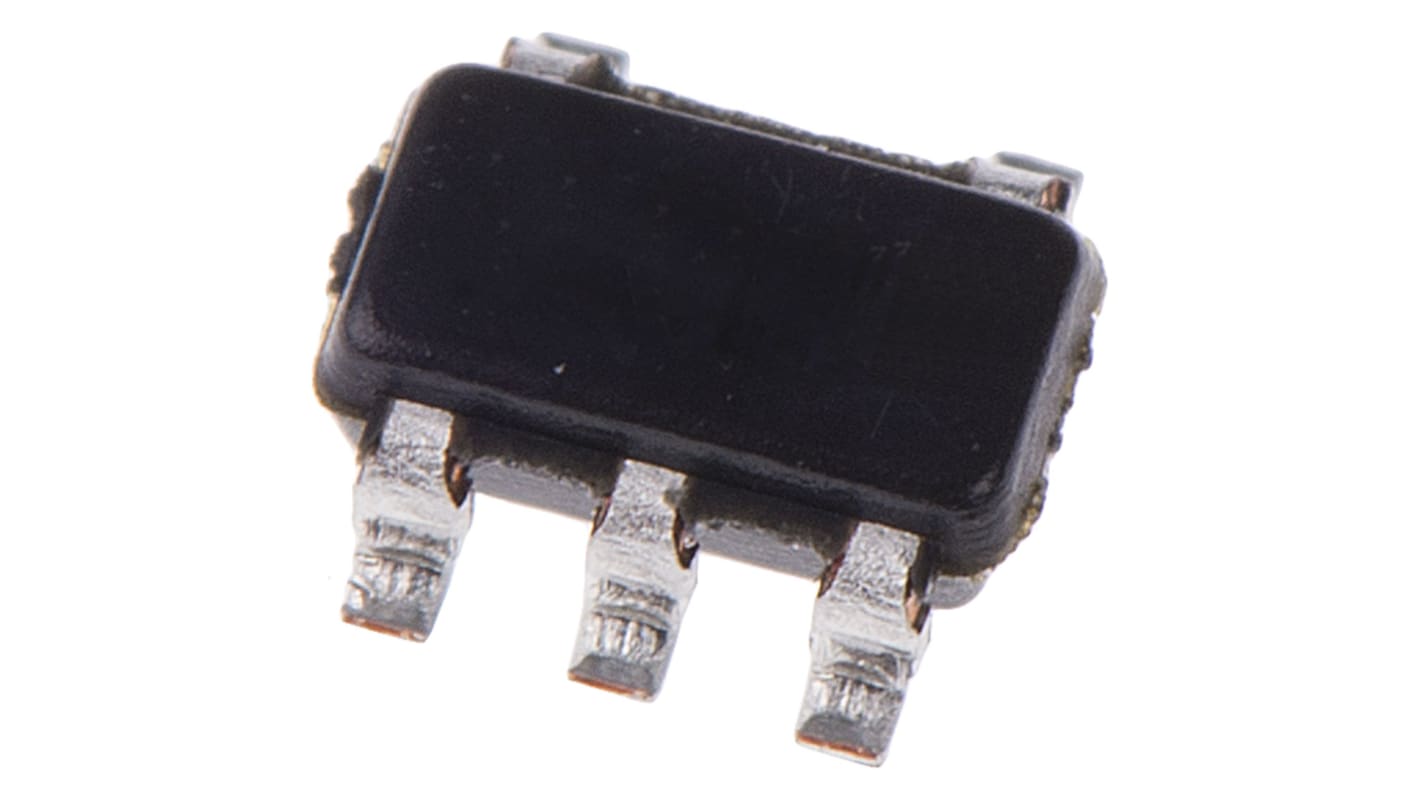

INA139NA/250 Texas Instruments, Current Monitor Single 5-Pin SOT-23
- RS庫存編號:
- 461-6558
- 製造零件編號:
- INA139NA/250
- 製造商:
- Texas Instruments
- RS庫存編號:
- 461-6558
- 製造零件編號:
- INA139NA/250
- 製造商:
- Texas Instruments
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Current Sense Amplifiers Analogue Output, Texas Instruments
Current and power measurement for real-time system protection, feedback control and high-accuracy system monitoring.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
規格
Attribute | Value |
|---|---|
| Power Supply Type | Single |
| Typical Single Supply Voltage | 12 V, 15 V, 18 V, 24 V, 28 V, 3 V, 5 V, 9 V |
| Minimum CMRR | 100dB |
| Number of Channels per Chip | 1 |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Dimensions | 2.9 x 1.6 x 1.15mm |
| Height | 1.15mm |
| Length | 2.9mm |
| Maximum Operating Supply Voltage | 40 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 1.6mm |
