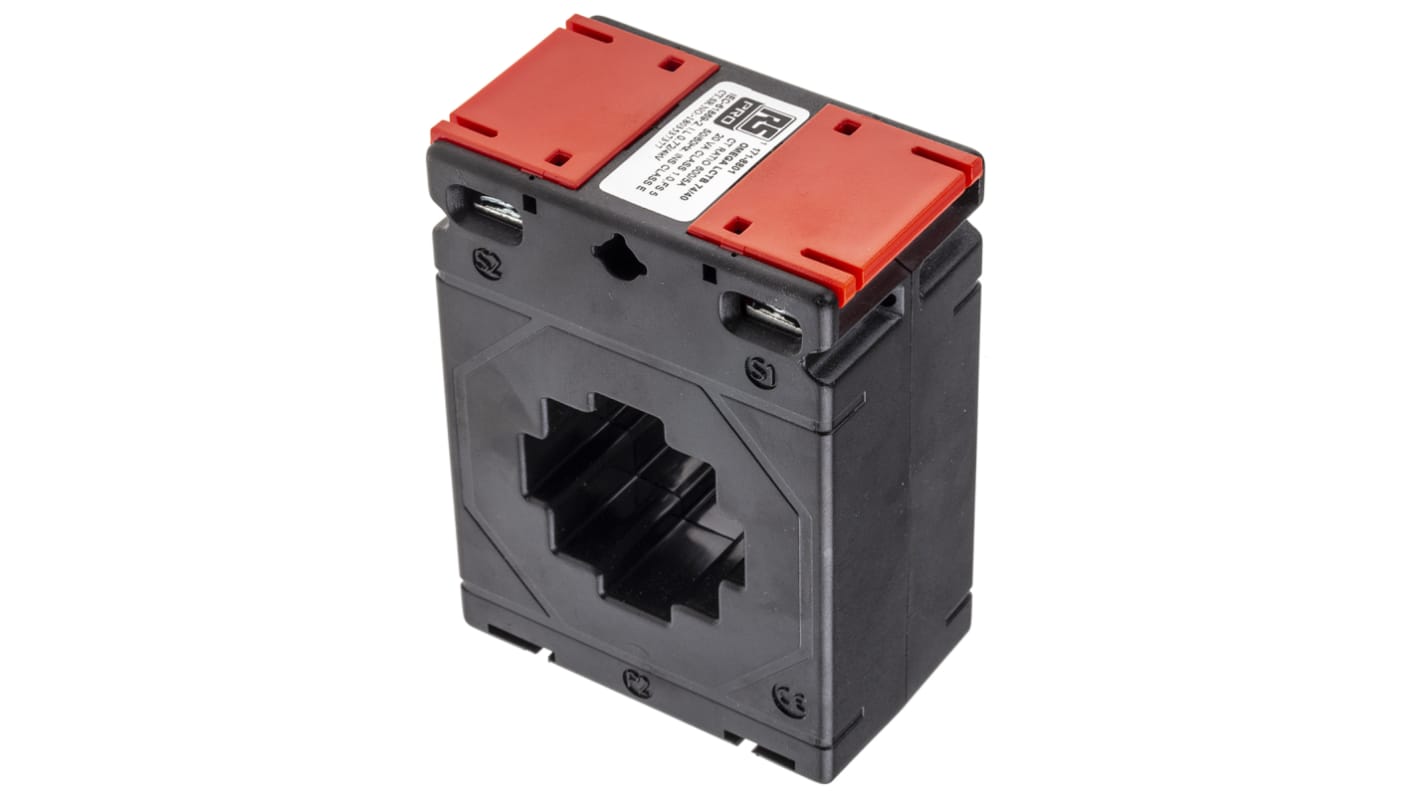

RS PRO Base Mounted Current Transformer, 600A Input, 600:5, 5 A Output, 41 x 41mm Bore
- RS庫存編號:
- 171-8801
- 製造商:
- RS PRO
- RS庫存編號:
- 171-8801
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- IN
產品詳細資訊
CT’s are square type and encapsulated with polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings. Available in various, Bus bar sizes, case widths, and mounting options.
Comprehensive class accuracy
Cost effective moulded case current transformer
Various mounting options including wall mounting, cable mounting, bus bar mounting and DIN rail mounting
Available in 0.2 & 0.2s accuracy class
Wire sealable terminal covers
Cost effective moulded case current transformer
Various mounting options including wall mounting, cable mounting, bus bar mounting and DIN rail mounting
Available in 0.2 & 0.2s accuracy class
Wire sealable terminal covers
規格
Attribute | Value |
|---|---|
| Current Ratio | 600:5 |
| Bore Size | 41 x 41mm |
| Transformer Type | Base Mounted |
| Input Current | 600A |
| Output Current | 5 A |
| Overall Height | 98mm |
| Overall Width | 74mm |
| Overall Depth | 45mm |
| Minimum Temperature | -5°C |
| Maximum Temperature | +55°C |
| Mounting Type | Surface Mount |
| Dimensions | 74 x 45 x 98 mm |
