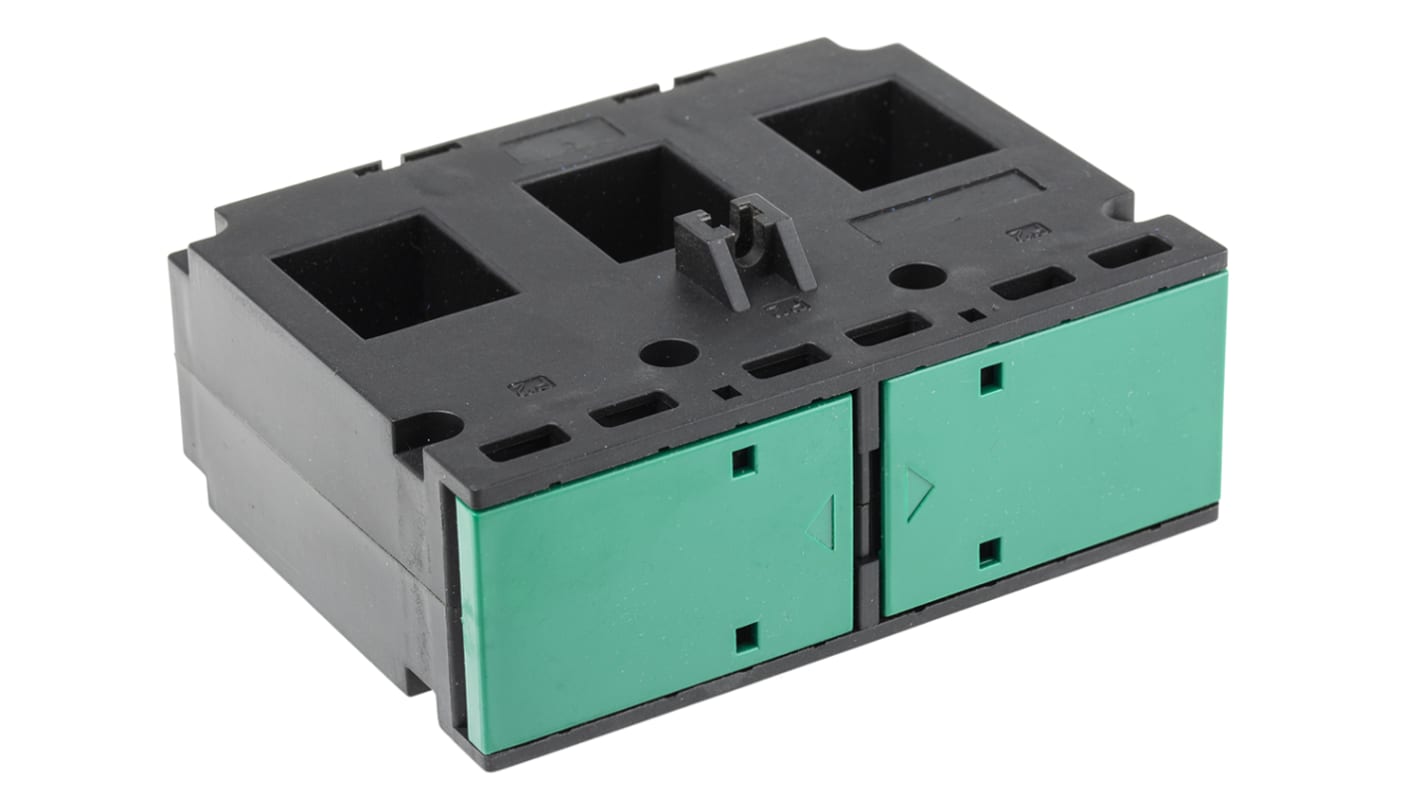

RS PRO Base Mounted Current Transformer, 100A Input, 100:5, 5 A Output, 35mm Bore
- RS庫存編號:
- 171-8824
- 製造商:
- RS PRO
- RS庫存編號:
- 171-8824
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
RS PRO Current Transformers
The RS PRO 3-phase base mounted measuring current transformer has a current ratio of 100:5. The installations are directly next to the moulded case circuit breakers for greater speed of installation and space optimisation. It is a surface mount device.
Features and Benefits
• Accuracy class 1
• Case material self-extinguishing classification
• Cost effective case design
• Operating temperature ranges between -5°C and 55°C
• Secondary terminals combined slot/pozi M4 screws
• Wire sealable terminal covers
• Case material self-extinguishing classification
• Cost effective case design
• Operating temperature ranges between -5°C and 55°C
• Secondary terminals combined slot/pozi M4 screws
• Wire sealable terminal covers
Applications
• Commercial electric power distribution
• Electrical substations
• Electrical substations
Certifications
• IEC - 61010 - 2
• IEC 60044-1/IEC 61869-1
• IP20 rated
• UL94V-0
• IEC 60044-1/IEC 61869-1
• IP20 rated
• UL94V-0
規格
Attribute | Value |
|---|---|
| Current Ratio | 100:5 |
| Bore Size | 35mm |
| Transformer Type | Base Mounted |
| Input Current | 100A |
| Output Current | 5 A |
| Overall Height | 87.5mm |
| Overall Width | 105mm |
| Overall Depth | 38mm |
| Mounting Type | Surface Mount |
| For Use With | MCCB |
| Dimensions | 105 x 38 x 87.5 mm |
