- RS庫存編號:
- 666-2941
- 製造零件編號:
- 09565005615050
- 製造商:
- HARTING
- RS庫存編號:
- 666-2941
- 製造零件編號:
- 09565005615050
- 製造商:
- HARTING
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

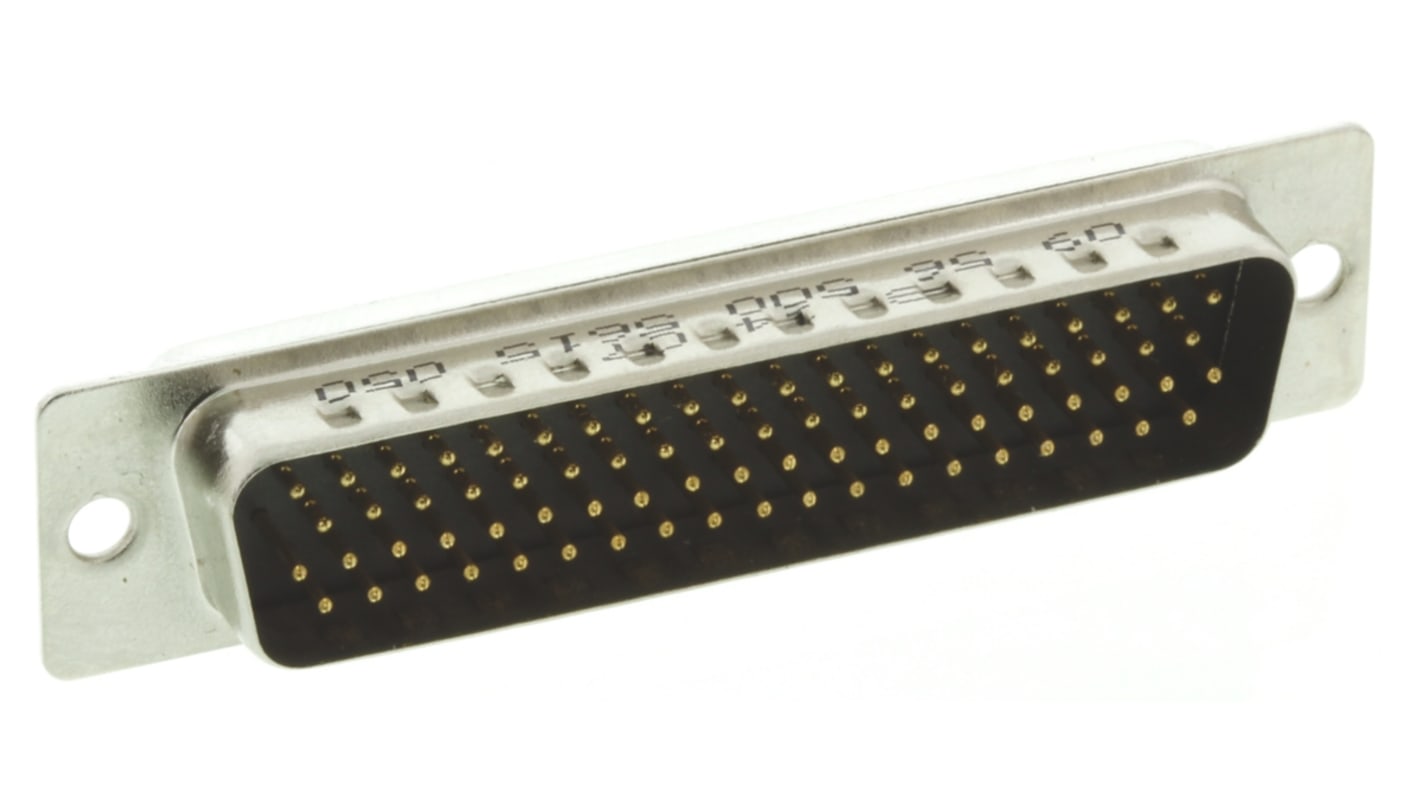

Plugs - Stamped Solder Cups (Performance level S4)
(Performance level S4) ≥ 0.76 μm Au (30 μinch)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Harting D Sub High Density
The high density range exceeds the contact capacity of a standard subminiature D connector by 70%.
Stamped pins
Tinned metal shell (Male connector with dimples)
Tinned metal shell (Male connector with dimples)
規格
Attribute | Value |
---|---|
Number of Contacts | 78 |
Gender | Male |
Body Orientation | Straight |
Mounting Type | Cable Mount |
Pitch | 2.42mm |
D Connector Type | High Density D-Sub |
Termination Method | Solder |
D-Sub Shell Size | D |
Current Rating | 2.0A |
Housing Material | Steel |
Length | 66.93mm |
Width | 12.55mm |
Contact Plating | Gold |
Contact Material | Copper Alloy |
Maximum Operating Temperature | +105°C |
Minimum Operating Temperature | -55.0°C |
