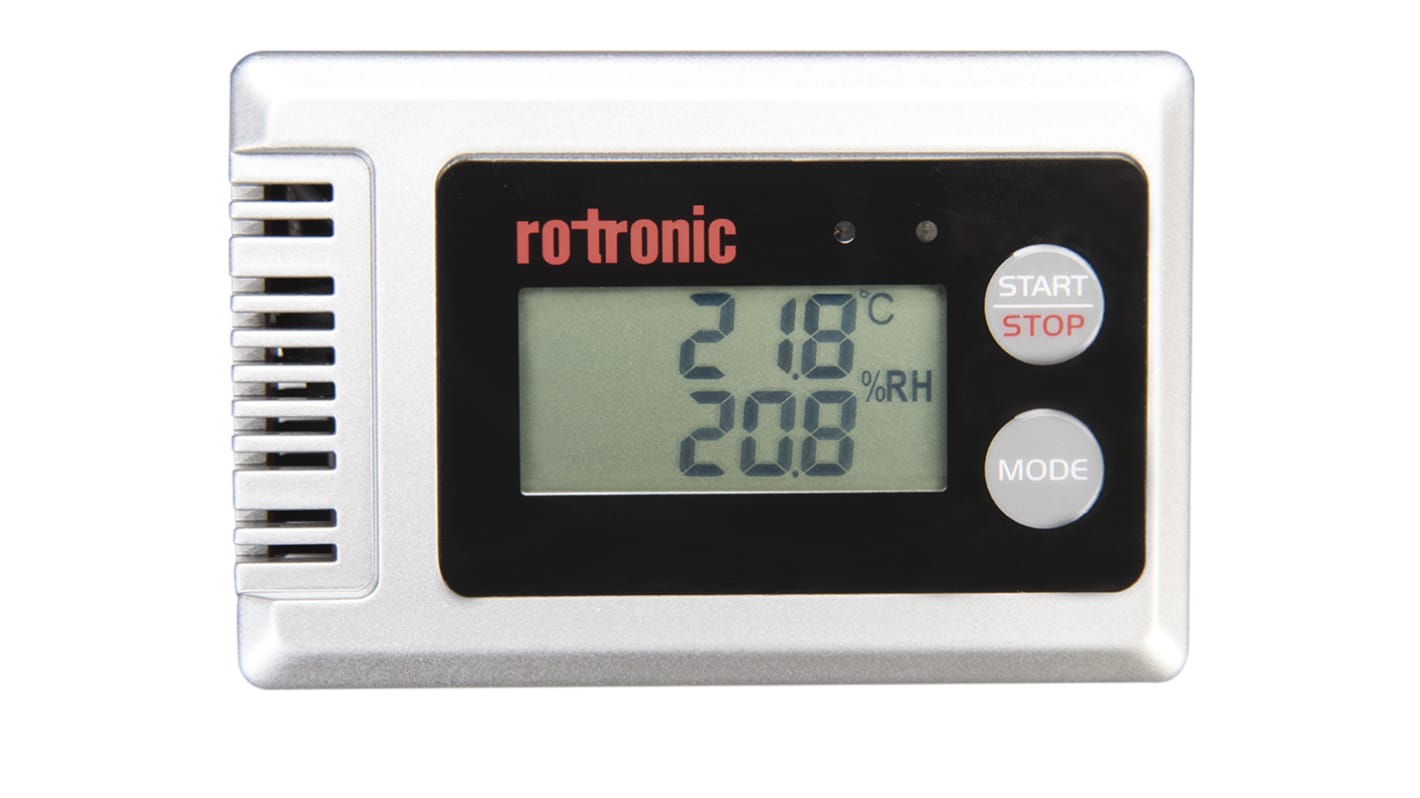

Rotronic HL-1D Set.
The HL-1D Set -Package includes HW4-Lite validated PC software with data analysis with Mini USB Cable. HL-1D measures only 90 x 60 x 23 mm, is well specified with good accuracy, durable and has high ingress protection against dust and water (IP67). HW4-Lite validated software for programming, data download and analysis is included. The logger is available now at a competitive, inexpensive price. Package includes HW4-Lite validated PC software with data analysis and Mini USB Cable.
Suitable for monitoring and recording conditions for a wide range of applications across all industries, in commerce and for research organisations. The compact logger is particularly suitable for monitoring high value products of all types during transportation to ensure that quality is maintained.
Features and Benefits.
- High measurement accuracy of 3 %rh and 0.3 °C.
- Slim, compact and durable. High ingress protection rating of IP67.
- Clear LC display with configurable visual alarms.
- Large data recording capacity: 32,000 data.
- Ranges: -20...70 °C, 0...100 %rh. Logging interval from 30s.
- Min / Max / Average statistical function on logger display.
- 3-Year battery life (with 5 minute logging interval).
- FDA 21CFR Part 11 / GAMP5 conformity.
- Temperature only logger available (product code TL-1D).
This item is Lithium cell / battery product (or contains Lithium cells / batteries) which needs to be shipped by sea freight. There will be extension of lead time (around 90 days) for global stock.
規格
Attribute | Value |
|---|---|
| Model Number | HL-1D-SET |
| Sensor Type | NTC |
| Measurement Parameters | Humidity, Temperature |
| Interface Type | USB |
| Data Logger Type | Temperature & Humidity |
| Maximum Temperature Measurement | +70 °C |
| Power Source | Battery |
| Best Temperature Measurement Accuracy | ±0.3 °C |
| IP Rating | IP67 |
| Display Type | LCD |
| Battery Life | 3 Years |
| Alarm | Yes |
| Includes | AC0003 Mini USB Cable, CR2 Battery, Function and Calibration Certificate, HW4-Lite Key, Short Instruction Manual |
| Temperature Measurement Resolution | 0.1°C |
| Best Humidity Measurement Accuracy | ±3 %RH |
| Maximum Humidity Measurement | 100%RH |
| Humidity Measurement Resolution | 0.1%RH |
| Battery Type | CR2 |
