Pico Technology PT-104 Resistance, Temperature, Voltage Data Logger, Maximum Voltage Measurement 2.5 V, 115 mV

產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): GB
產品詳細資訊

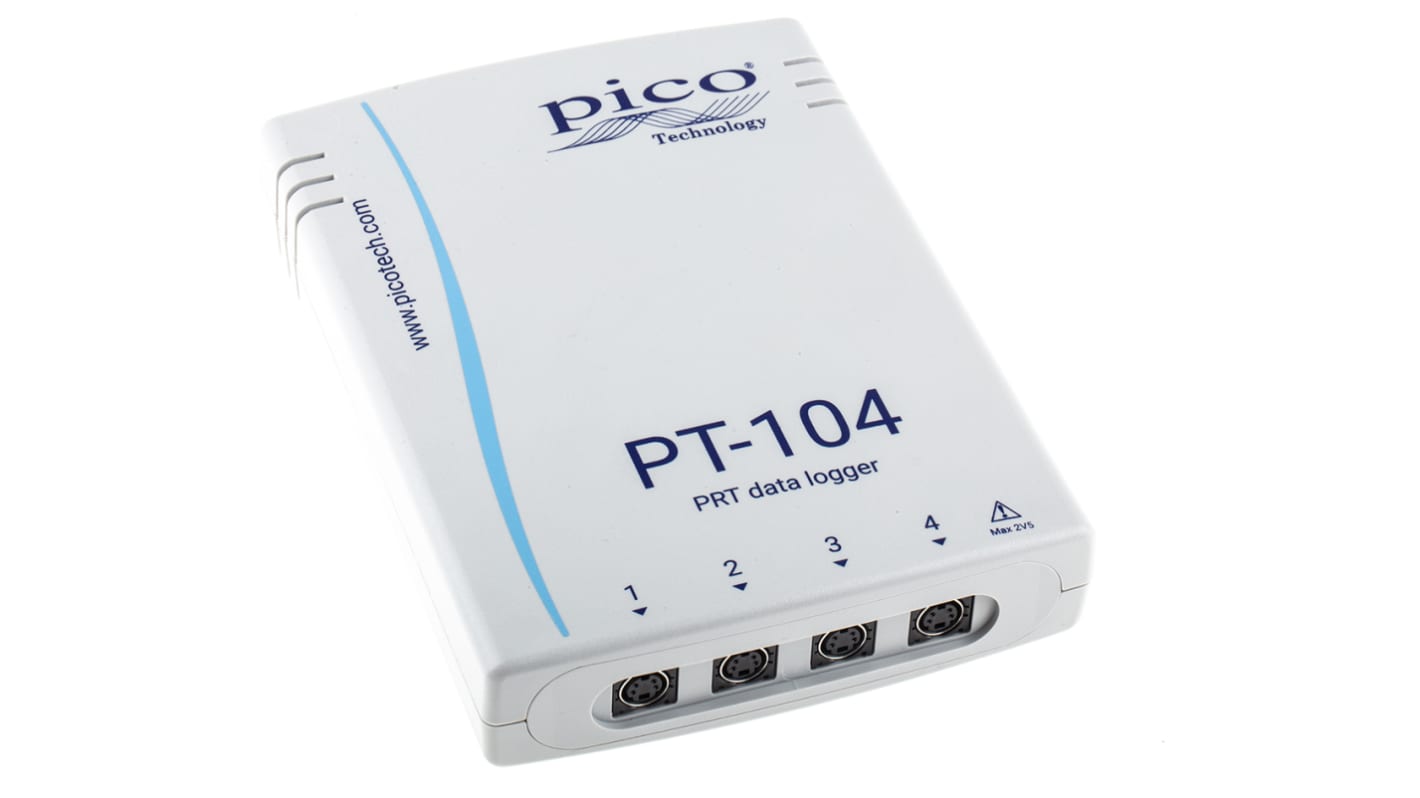

USB PT-104 4 channel Precision Temperature Data Logger for PC

The USB PT-104 is a 4-channel temperature measuring data logger. It offers the ultimate in resolution (0.001 °C) and accuracy (0.01 °C). Along with temperature it can also be used to measure resistance and voltage

Measures precision temperatures, resistance and voltage
High resolution and accuracy
USB and Ethernet interface
Supports PoE (Power over Ethernet)
For use with 2, 3 and 4 wire PT100 and PT1000 sensors
Dimensions:184 x 135 x 36 mm

Temperature

The USB PT-104 measures temperature using platinum resistance thermometers (PRTs). Both common industry standards (PT100 and PT1000) are supported. The unit is compatible with 2, 3 and 4 wire sensors (4 wire PT100 sensors are recommended for accurate measurements). A wide range of PT100 sensors are available for use with the USB PT-104.

Software

The USB PT-104 is supplied with PicoLog data logging software. PicoLog will automatically detect which sensor is connected and will display readings in the correct units. Also supplied is a software development kit. The SDK contains a range of software drivers and example code that you can use to write your own software or to use your USB PT-104 data logger with third party software

Sensors

Also available are a range of Class A sensors (±0.15 at 0 °C) and tenth-DIN sensors (±0.03 at 0 °C). Please note that the range and accuracy specifications relate to the SENSOR tip ONLY and not the cable or handle. Furthermore, it is necessary to add the sensor error to the USB PT-104 error

Pico Technology Data Logger

The Pico Technology USB PT-104 is a 4-channel precision temperature measuring data logger for PC. It uses platinum resistance thermometers (PRTs for measuring temperature. A high-performance 24-bit ADC offers the ultimate resolution (0.001°C) and accuracy (0.01°C). Along with temperature, it can also be used to measure resistance and voltage.

Features and Benefits


High resolution and accuracy
• Works with PT100 and PT1000 sensors
• Supports 2-wire, 3-wire and 4-wire sensors
• Uses calibrated reference resistors for stability
• Supplied with PicoLog data logging software
• USB interface ensures easy installation
• Ethernet interface for remote operation
• Powered by USB port or Power-over-Ethernet (PoE)
• Operating temperature ranges between 0°C and 70°C

Applications


Food industry
• Automotive
• Pharmaceutical industry

規格
Attribute Value
Measurement Parameters Resistance, Temperature, Voltage
Sensor Type PT1000
Number of Input Channels 4
Interface Type Ethernet, USB
Maximum Voltage Measurement 2.5 V, 115 mV
Maximum Temperature Measurement +800 °C
Power Source Mains
Best Temperature Measurement Accuracy ±0.01 °C
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Temperature Measurement Resolution 0.001°C
Dimensions 184 x 135 x 36mm
Best Voltage Measurement Accuracy ±0.2 %
15 現貨庫存,可於3工作日發貨。
單價 個
HK$ 5,495.64
(不含稅)
單位
Per unit
1 +
HK$5,495.64
