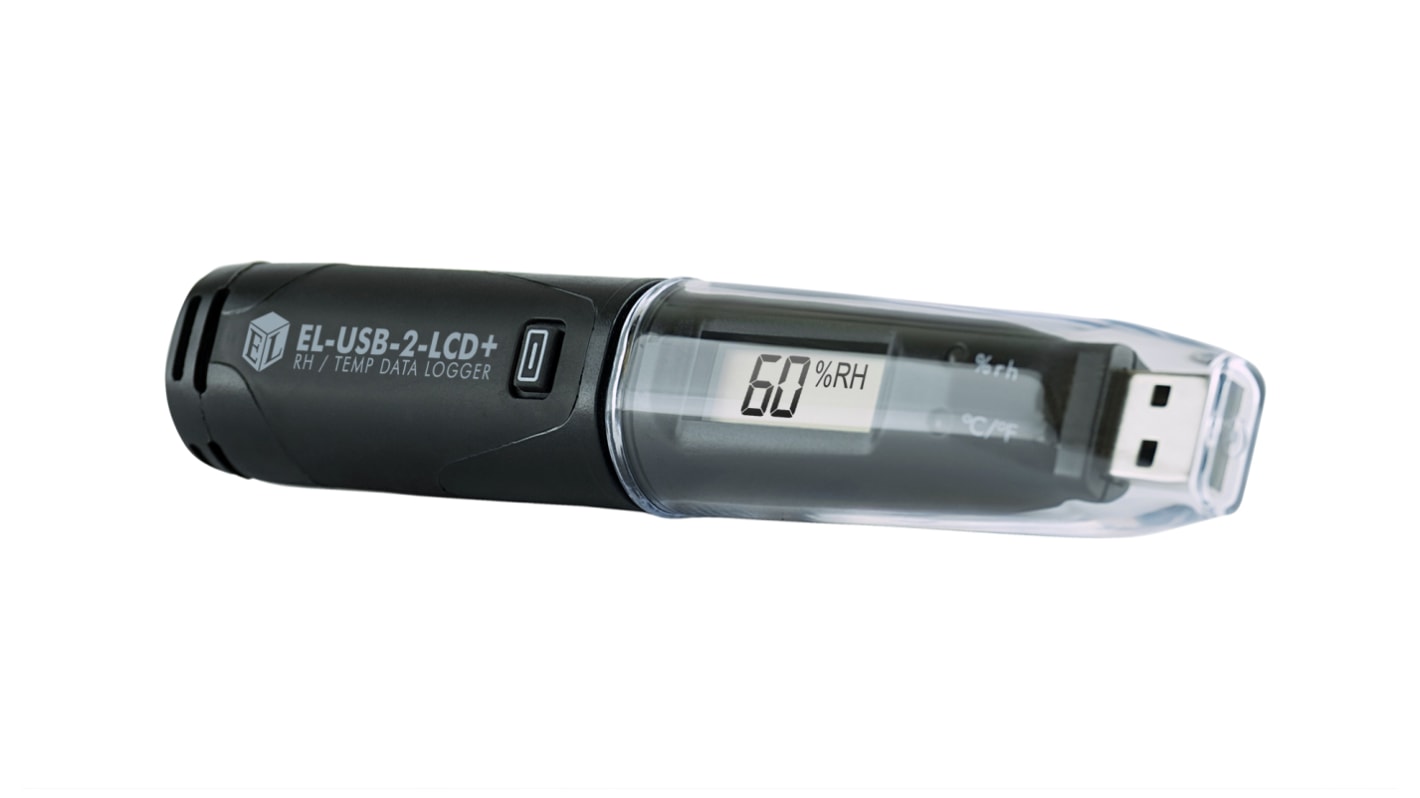

Lascar EL-USB-2-LCD+ Dew Point, Humidity, Temperature Data Logger, USB, Battery Powered, LCD Display, IP67

  • RS庫存編號 734-9731
  • 製造零件編號 EL-USB-2-LCD+
  • 製造商 Lascar
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

EL-USB-2-LCD+ High Accuracy Temperature, Humidity and Dew-Point USB Data Logger with LCD

The data logger is ideal for applications where measuring temperature and humidity ranges with high accuracy are required. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature and humidity logs. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for detailed analysis.

Measures temperature (-35°C → +80°C), humidity (0 → 100%) and calculates dew-point with higher accuracy than EL-USB-2-LCD.
Compatible with Windows XP, Vista & 7 (including 64-bit).
Export to Excel functionality.
Battery powered, standalone solution. Battery supplied with unit.
Simple USB interface for set-up and data download.
Over 16,000 temperature readings and 16,000 humidity readings.
User programmable sample rates and high/low alarm levels.
Bright red and green LED status indication.
Set-up and data download from EasyLog data loggers is enabled by the EL-WIN-USB software available here: www.easylogusb.com
High contrast LCD for viewing the last logged readings.
Push-to-start and delayed logging modes.
Compatible with EL-DataPad data collector.

Supplied with

1/2 AA battery and wall mount clip

Lascar Data Loggers

The Lascar EL-USB-2-LCD+ USB standalone data logger measures and stores over 16,000 temperature and humidity readings between -35°C and 80°C (-31°F to +176°F). It has 0% to 100% RH range at a resolution of 0.5°C (1°F) and 0.5% RH. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session for both, temperature and humidity. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Supplied with
1/2 AA battery and wall mount clip

Features and Benefits


The measurement ranges between -35°C and 80°C (-31°F and 176°F)
• Temperature measurement accuracy is ±0.45°C
• Humidity measurement accuracy is ±2.05%RH
• Logging rates between 10 seconds and 12 hours
• Number of readings per channel is 16379
• Immediate and delayed logging start
• User-programmable alarm thresholds for both, temperature and humidity
• Status indication via red/green LEDs
• Battery life is up to 2 years
• Supplied with a 1/2AA lithium metal battery
• High contrast LCD with two and a half digit temperature and humidity display function
• Export to Excel functionality

Applications


Facilities management
• Housing and business premises
• Outside environmental data
• Agriculture and animal welfare
• Veterinary
• Museums and exhibitions

Certifications


IP67 Rated

規格
Attribute Value
Measurement Parameters Dew Point, Humidity, Temperature
Sensor Type Dew Point, Humidity, Temperature
Interface Type USB
Maximum Temperature Measurement +80 °C
Power Source Battery
Best Temperature Measurement Accuracy ± 0.45 °C
IP Rating IP67
Minimum Operating Temperature -35°C
Maximum Operating Temperature +80°C
Display Type LCD
Battery Type 1/2 AA
Number of Readings Per Channel 16379
Battery Life 2 yr
Maximum Humidity Measurement 100%RH
Temperature Measurement Resolution 0.5 °C, 1 °F
Alarm Yes
Best Humidity Measurement Accuracy ± 2.05 %RH
Includes 1/2 AA battery and wall mount clip
Humidity Measurement Resolution 0.5%RH
Dimensions 25.3 (Dia.) x 126mm
