Lascar Temperature Data Logger, USB, Battery Powered, LCD Display

  • RS庫存編號 778-2487
  • 製造零件編號 EL-USB-TP-LCD
  • 製造商 Lascar
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

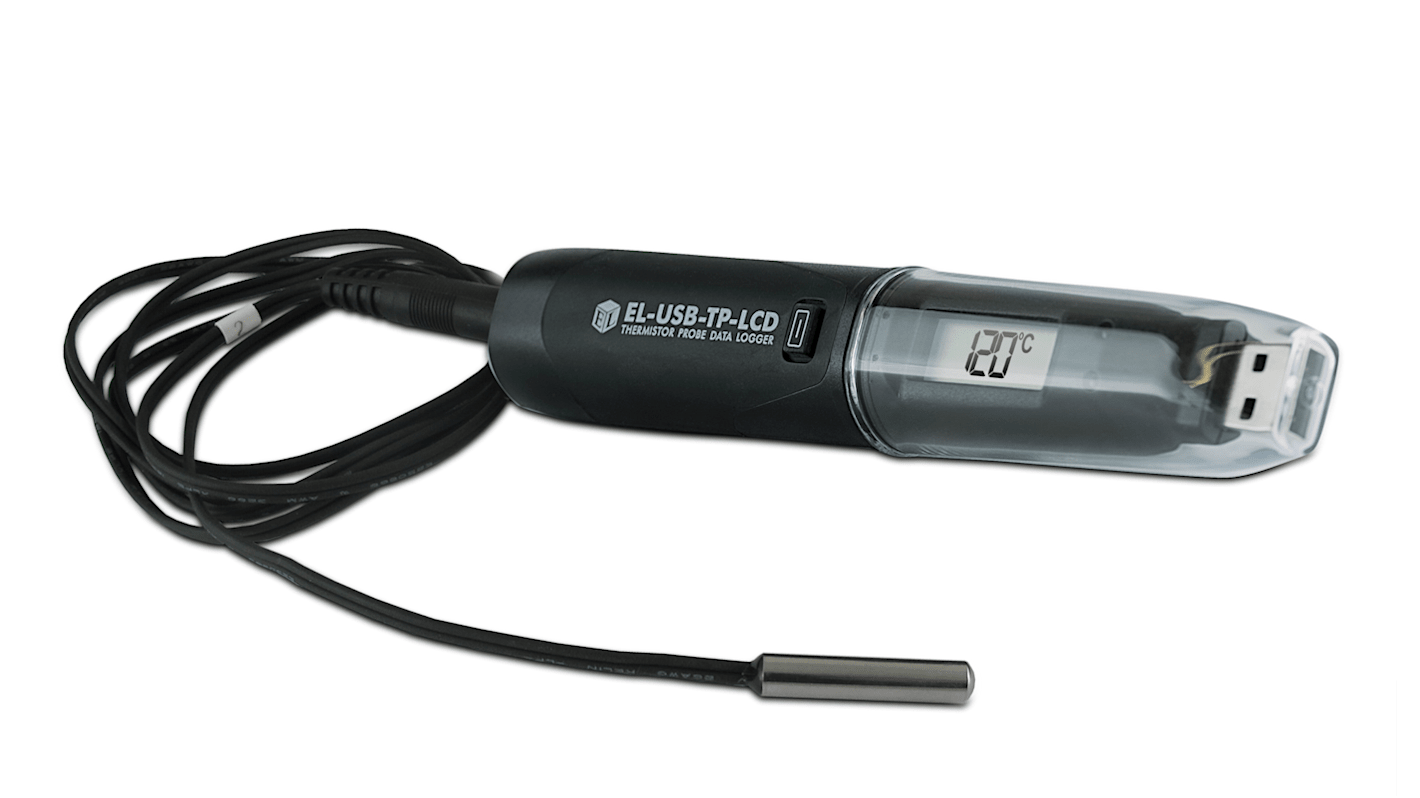

EL-USB-TP-LCD Temperature Probe Data Logger with LCD Screen & Thermistor Probe

The EL-USB-TP-LCD is a standalone data logger which can measure and store up to 32,510 temperature readings from the supplied thermistor probe (attached via a socket at the base of the unit). Users can easily set up the logging rate and start-time, and download the stored data by plugging the data logger into the USB port of a PC and running the purpose-designed software under Windows XP, Vista or 7. Data can then be graphed, printed and exported to other applications. The EL-USB-TP-LCD features an LCD and a push-button which enables users to cycle through the most recent, highest-stored and lowest-stored temperature readings. The instrument comes with a long-life Lithium battery which can facilitate logging for up to 2 years.

-40 to +125°C (-40 to +257°F) probe measurement range.
High contrast LCD with temperature display.
USB interface for set-up and data download.
Set-up and data download from EasyLog data loggers is enabled by the EL-WIN-USB software available here: www.easylogusb.com
Immediate, delayed and push-to-start logging.

Supplied with

1/2 AA battery, 1M thermistor probe and wall mount clip

Lascar Data Loggers

The Lascar EL-USB-TP-LCD standalone data logger measures and stores over 32,000 temperature readings between -40°C and 125°C (-40°F to 257°F) and is supplied with a high accuracy thermistor probe. It features an LCD and pushbutton, which allows the user to cycle through the most recent, highest and lowest stored readings. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis
.
Supplied with
1/2 AA battery, 1M thermistor probe and wall mount clip

Features and Benefits


The measurement ranges between 40°C and 125°C (-40°F to 257°F)
• Temperature measurement accuracy is ±0.6°C
• Logging rates between 1 second and 12 hours
• Number of readings per channel is 32510
• Immediate, delayed and push-to-start logging
• User-programmable alarm thresholds
• High contrast LCD with two and a half digit temperature display function
• Status indication via red/green LEDs
• Battery life is up to 2 years
• Supplied with a 1/2AA lithium metal battery

Applications


Chilling, freezing and storing food
• Vaccine storage

規格
Attribute Value
Measurement Parameters Temperature
Sensor Type Thermistor
Interface Type USB
Maximum Temperature Measurement +125 °C
Power Source Battery
Best Temperature Measurement Accuracy ± 0.6 °C
Minimum Operating Temperature -40°C
Maximum Operating Temperature +40°C
Display Type LCD
Battery Type 1/2 AA battery
Battery Life 2 yr
Number of Readings Per Channel 32510
Alarm Yes
Includes 1/2 AA battery 1M thermistor probe and wall mount clip
Temperature Measurement Resolution 0.5°C
Dimensions 134.5 x 23.9 x 21.2mm
