Rotronic Instruments CL11 CO2, Humidity, Temperature Data Logger, USB, Battery Powered, Digital Display, IP30

產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CH
產品詳細資訊

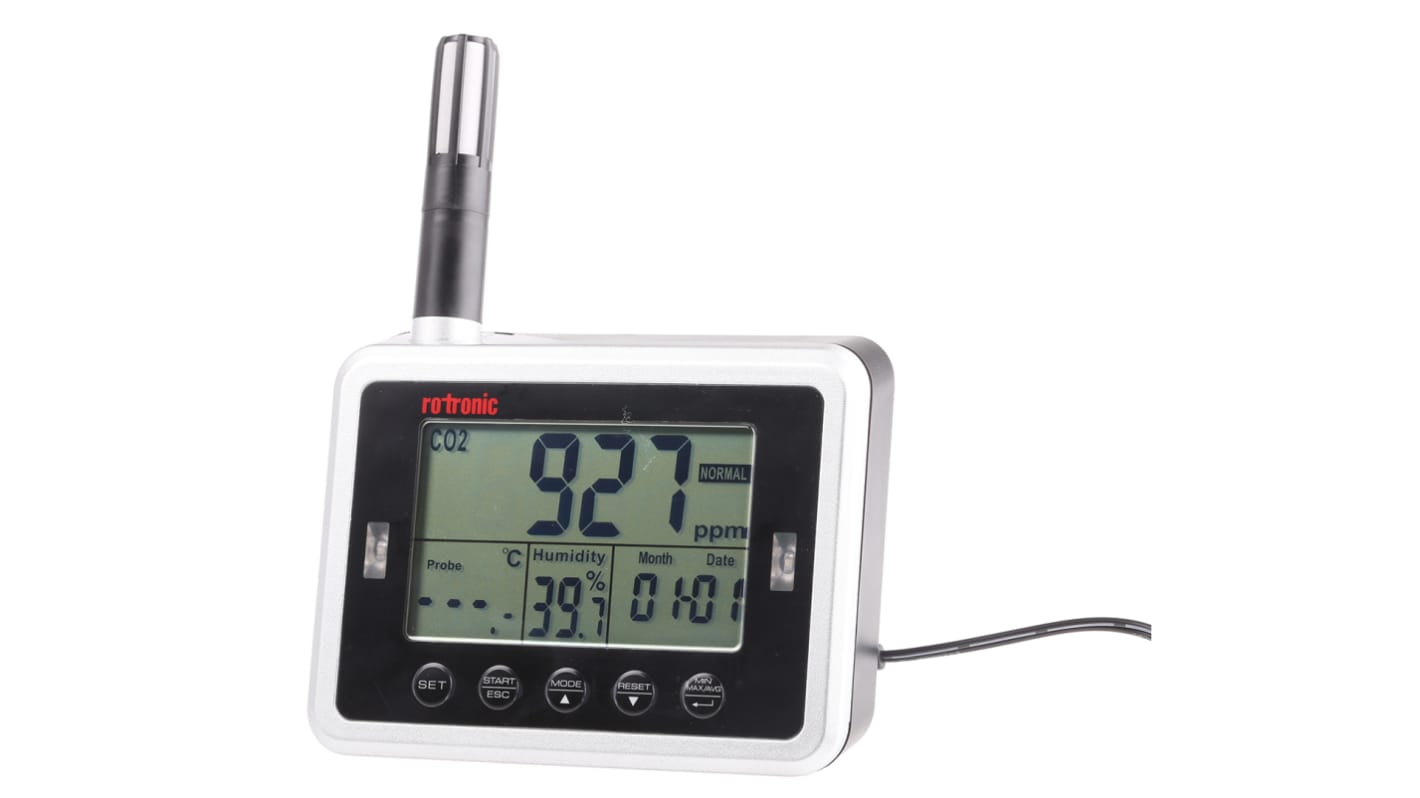

Rotronic CL11 Indoor Air Quality Data Logger

The Rotronic CL11 benchtop display unit is the latest development of an inexpensive multimeter which simultaneously measures and records CO2, humidity and temperature. It is equipped with the field-tested Rotronic Hygromer® IN-1 humidity sensor. Using the Rotronic software package SW2.x (supplied/downloadable), it can easily be set to record as required and data can then be downloaded, saved and analyzed. Power supply is by AA (x4) batteries.

Measures and logs CO2, relative humidity and temperature
Hygromer® IN-1 humidity sensor
40,000 data point memory for CO2, humidity and temperature values
Maximum, minimum and average value display
Adjustable audible CO2 alarm
Real time clock with backup battery
Includes software for configuration and data download

Rotronic Instruments Data Logger

The Rotronic Instruments C11 data logger evaluates air quality with the combined measurements of CO2, humidity, and temperature. A high concentration of carbon dioxide can develop quickly when closed rooms with insufficient ventilation are filled with people. Carbon dioxide (CO2) is a colourless and odourless gas that exists in the earth’s atmosphere and which is dangerous in high concentrations. The proportion of CO2 in natural ambient air is about 0.04 % or 400 ppm. Exhaled air contains approximately 3.8 % by volume CO2, which quickly mixes with the ambient air. When closed rooms are insufficiently ventilated, the levels of CO2 increase quickly leading to fatigue and loss of concentration for the room's occupants. To initiate improvements to the air quality, for example by increasing the supply of fresh air, it is important to measure the key parameters of indoor air quality. These parameters are CO2, humidity, and temperature.
It has ROTRONIC HYGROMER® IN-1 humidity sensor that gives calibration at 35/80 %RH. This logger includes software for configuration and data download.

Features and Benefits


Measures and logs CO2, relative humidity and temperature
• 40,000 data point memory for CO2, humidity and temperature values
• Maximum temperature measurement up to 60 °C
• Maximum, minimum and average values displayed
• Adjustable audible and visual CO2 alarm
• Optional external temperature probe
• Large backlight display
• Large buttons for easy operation

Applications


Classrooms
• Conference rooms
• Waiting rooms
• Indoor areas

Certifications


IP30 rated

規格
Attribute Value
Measurement Parameters CO2, Humidity, Temperature
Sensor Type Thermistor
Interface Type USB
Maximum Temperature Measurement +60 °C
Power Source Battery
Best Temperature Measurement Accuracy ±0.3 °K
IP Rating IP30
Display Type Digital
Dimensions 157 x 120 x 85mm
Best Humidity Measurement Accuracy <2.5 %RH
Includes AC Adapter, ROTRONIC SW2.x
Alarm Yes
Maximum Humidity Measurement 100%RH
