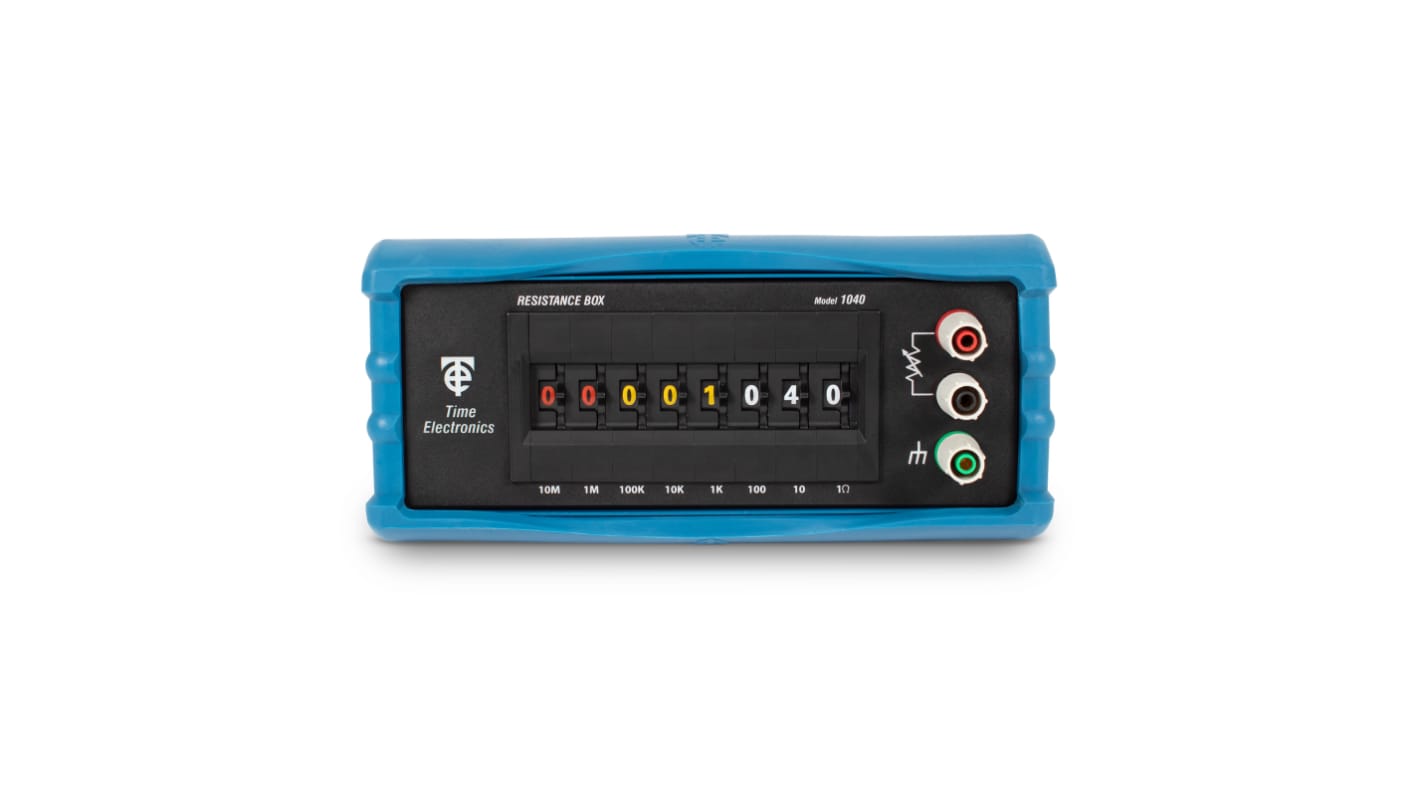

Time Electronics Resistance Decade Box, Resistance Resolution 1Ω, Absolute Maximum Resistance Measurement 100MΩ
- RS庫存編號:
- 617-692
- 製造零件編號:
- 1040
- 製造商:
- Time Electronics
- RS庫存編號:
- 617-692
- 製造零件編號:
- 1040
- 製造商:
- Time Electronics
法例與合規
不適用
- COO (Country of Origin):
- GB
產品詳細資訊
Calibration/ Substitution, 8 Decade-Thumb Wheel Resistance Boxes
For simulating resistance transducers and for laboratory, industrial and educational use. Required resistance is set by clearly marked thumbwheel switches, colour coded to aid identification.
規格
Attribute | Value |
|---|---|
| Decade Box Type | Resistance |
| Resistance Resolution | 1Ω |
| Best Maximum Resistance Accuracy | ±1% |
| Best Minimum Resistance Accuracy | ±0.1% |
| Residual Resistance | Less than 250mΩ |
| Power Rating | 1W |
| Temperature Coefficient | ±50ppm/°C |
| Dimensions | 110 x 200 x 75mm |
| Height | 75mm |
| Weight | 600g |
| Width | 200mm |
| Absolute Maximum Resistance Measurement | 100MΩ |
| Minimum Resistance Measurement | 1Ω |
| Length | 110mm |
