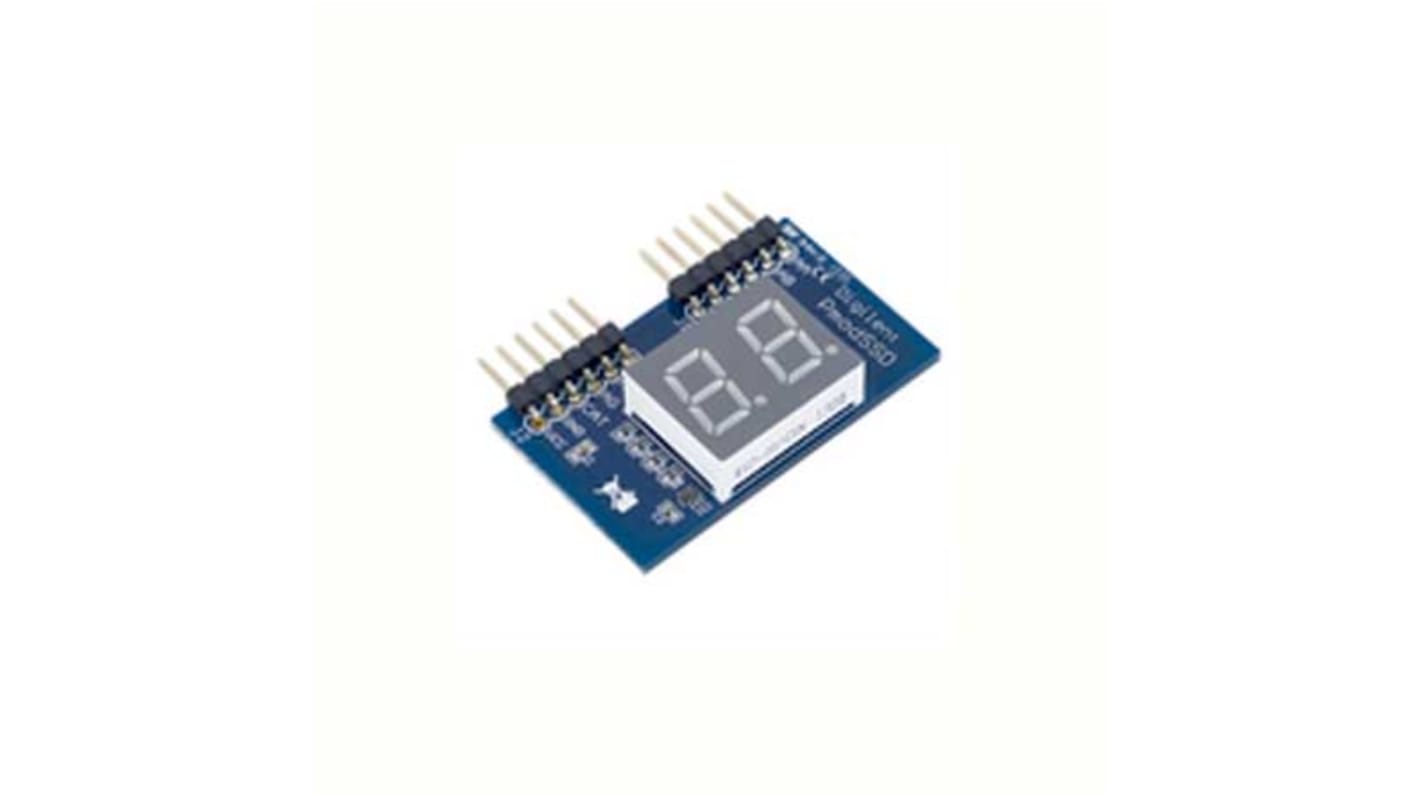

Digilent 410-126, Pmod SSD 7 Segment Display Display Module With Two 6-pin Pmod connectors with GPIO interfaces
- RS庫存編號:
- 164-3482
- 製造零件編號:
- 410-126
- 製造商:
- Digilent
- RS庫存編號:
- 164-3482
- 製造零件編號:
- 410-126
- 製造商:
- Digilent
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
The Pmod SSD is a two-digit seven-segment display. Users can toggle through GPIO signals which digit is currently on at a rate of 50 Hz or greater to achieve persistence-of-vision to give the effect of both digits being lit up simultaneously
Two-digit high brightness seven-segment display
Easily view a counter or timer
Common Cathode configuration
Small PCB size for flexible designs 1.0 ´ 1.7 (2.5 cm ´ 4.3 cm)
Two 6-pin Pmod connectors with GPIO interfaces
Follows Digilent Pmod Interface Specification Type 1
Easily view a counter or timer
Common Cathode configuration
Small PCB size for flexible designs 1.0 ´ 1.7 (2.5 cm ´ 4.3 cm)
Two 6-pin Pmod connectors with GPIO interfaces
Follows Digilent Pmod Interface Specification Type 1
規格
Attribute | Value |
---|---|
Display Technology | 7 Segment Display |
Kit Classification | Display Module |
Kit Name | Pmod SSD |
Featured Device | Two 6-pin Pmod connectors with GPIO interfaces |
