- RS庫存編號:
- 186-9027
- 製造零件編號:
- CAT25160VI-GT3
- 製造商:
- onsemi
當前暫無庫存,可於2024/11/20發貨,3 工作日送達。
已增加
單價 个(每带 3000 )
HK$2.193
單位 | Per unit | Per Reel* |
3000 - 3000 | HK$2.193 | HK$6,579.00 |
6000 - 9000 | HK$2.15 | HK$6,450.00 |
12000 + | HK$2.107 | HK$6,321.00 |
* 參考價格 |
- RS庫存編號:
- 186-9027
- 製造零件編號:
- CAT25160VI-GT3
- 製造商:
- onsemi
產品概覽和技術數據資料表
法例與合規
產品詳細資訊

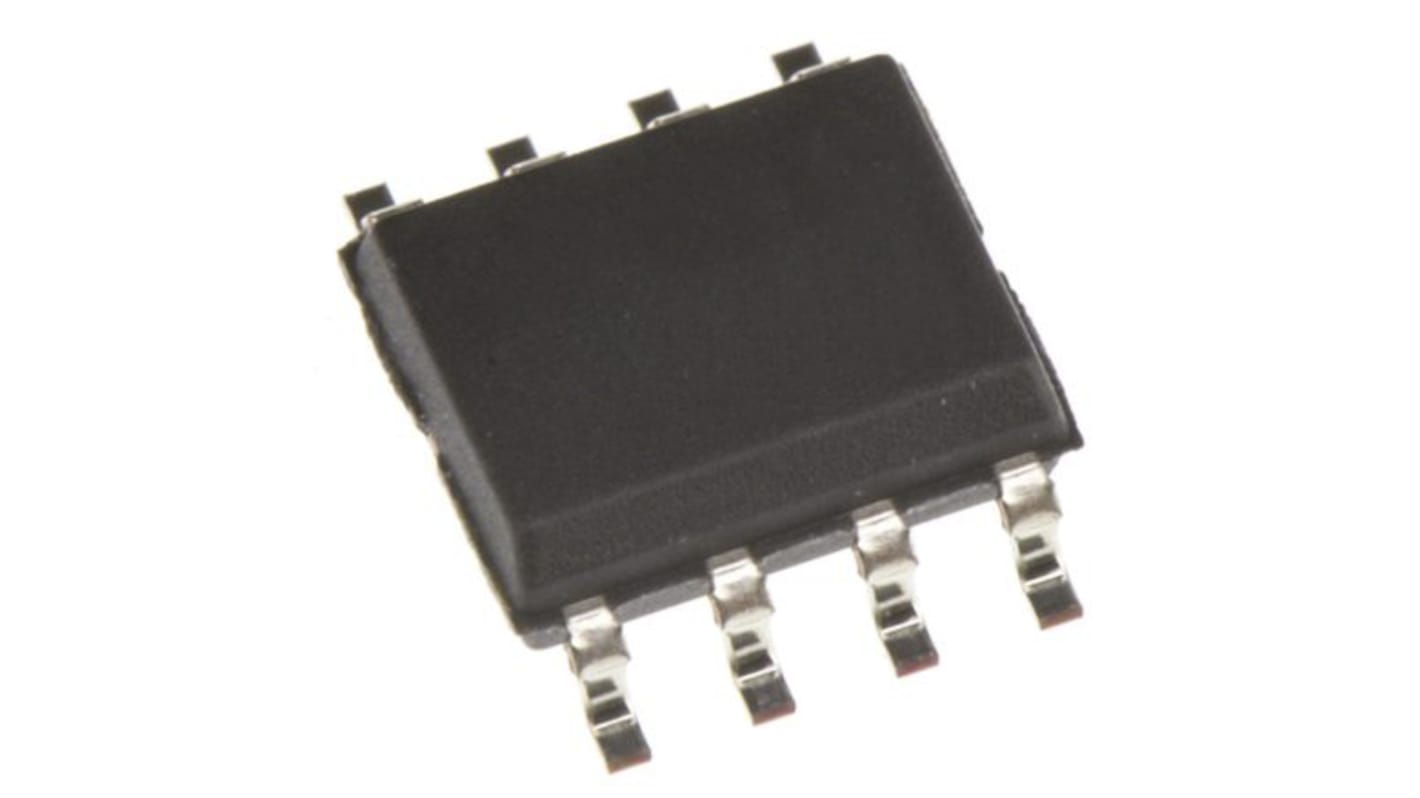

The CAT25160 are a EEPROM Serial 16-Kb SPI devices internally organized as 2048x8 bits. They feature a 32-byte page write buffer and support the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS) input. In addition, the required bus signals are a clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the CAT25160 device. These devices feature software and hardware write protection, including partial as well as full array protection.
10 MHz SPI compatible
1.8 V to 5.5 V supply voltage range
SPI modes (0,0 & 1,1)
32-byte page write buffer
Self-timed write cycle
Hardware and software protection
Block write protection - Protect 1/4, 1/2 or all of EEPROM array
Low power CMOS technology
1,000,000 program/erase cycles
100 year data retention
Industrial and Extended temperature range
8 lead PDIP, SOIC, TSSOP and 8-pad TDFN, UDFN packages
Applications
Automotive Systems
Communications Systems
Computer Systems
Consumer Systems
Industrial Systems
1.8 V to 5.5 V supply voltage range
SPI modes (0,0 & 1,1)
32-byte page write buffer
Self-timed write cycle
Hardware and software protection
Block write protection - Protect 1/4, 1/2 or all of EEPROM array
Low power CMOS technology
1,000,000 program/erase cycles
100 year data retention
Industrial and Extended temperature range
8 lead PDIP, SOIC, TSSOP and 8-pad TDFN, UDFN packages
Applications
Automotive Systems
Communications Systems
Computer Systems
Consumer Systems
Industrial Systems
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
---|---|
Memory Size | 16kbit |
Interface Type | Serial-SPI |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 8 |
Organisation | 2k x 8 bit |
Minimum Operating Supply Voltage | 1.8 V |
Maximum Operating Supply Voltage | 5.5 V |
Programming Voltage | 1.8 → 5.5V |
Number of Bits per Word | 8bit |
Dimensions | 5 x 4 x 1.5mm |
Maximum Random Access Time | 40ns |
Maximum Operating Temperature | +85 °C |
Data Retention | 100yr |
Number of Words | 2k |
Minimum Operating Temperature | -40 °C |
Automotive Standard | AEC-Q100 |
