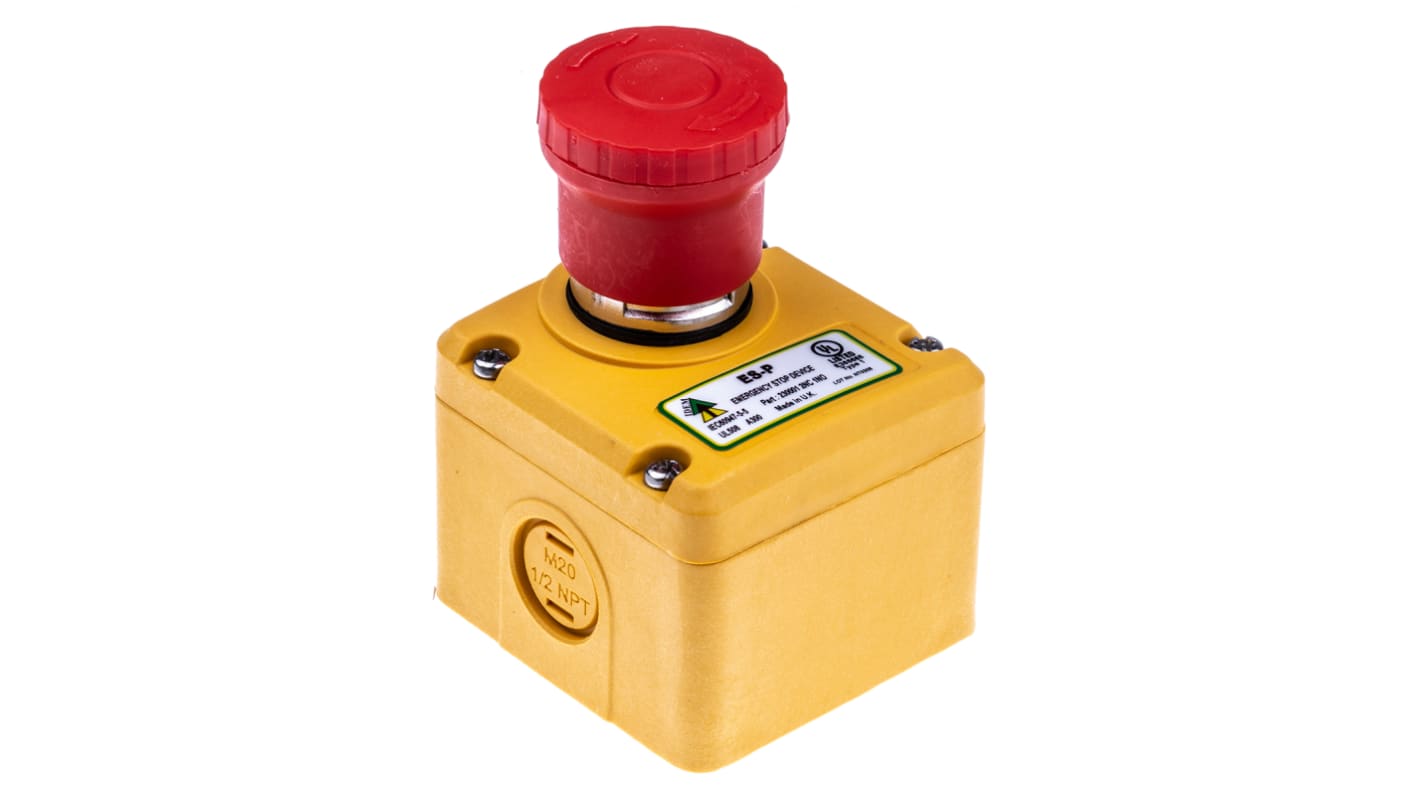

The IDEM ES-P series emergency stop pushbutton has a red round style head with a diameter of 40mm. Its housing is made from polyester material and the button is made of plastic material. This device is a standard duty emergency stop switch (E-Stop), designed to provide robust emergency stop protection for machines or exposed conveyors. A special lid safety trip mechanism enables the safety contacts to open if the lid is removed . This pushbutton has a contact current rating of 3A and a voltage rating of 240V. It is suitable for use within virtually all industry sectors.
Features and Benefits
2NC/1NO contact configuration Twist to reset method Non-illuminated Connects to most of the safety relays to give up to PLeCat.4 Surface mount
Certifications
ISO13850 EN60947-5-1 EN60947-5-5 UL 508 approved ISO13850 ISO13849-1 IEC60947-5-1 IEC60947-5-5
