- RS庫存編號:
- 176-3693
- 製造零件編號:
- RVAMJKSME-B24
- 製造商:
- Belden
- RS庫存編號:
- 176-3693
- 製造零件編號:
- RVAMJKSME-B24
- 製造商:
- Belden
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DK
產品詳細資訊

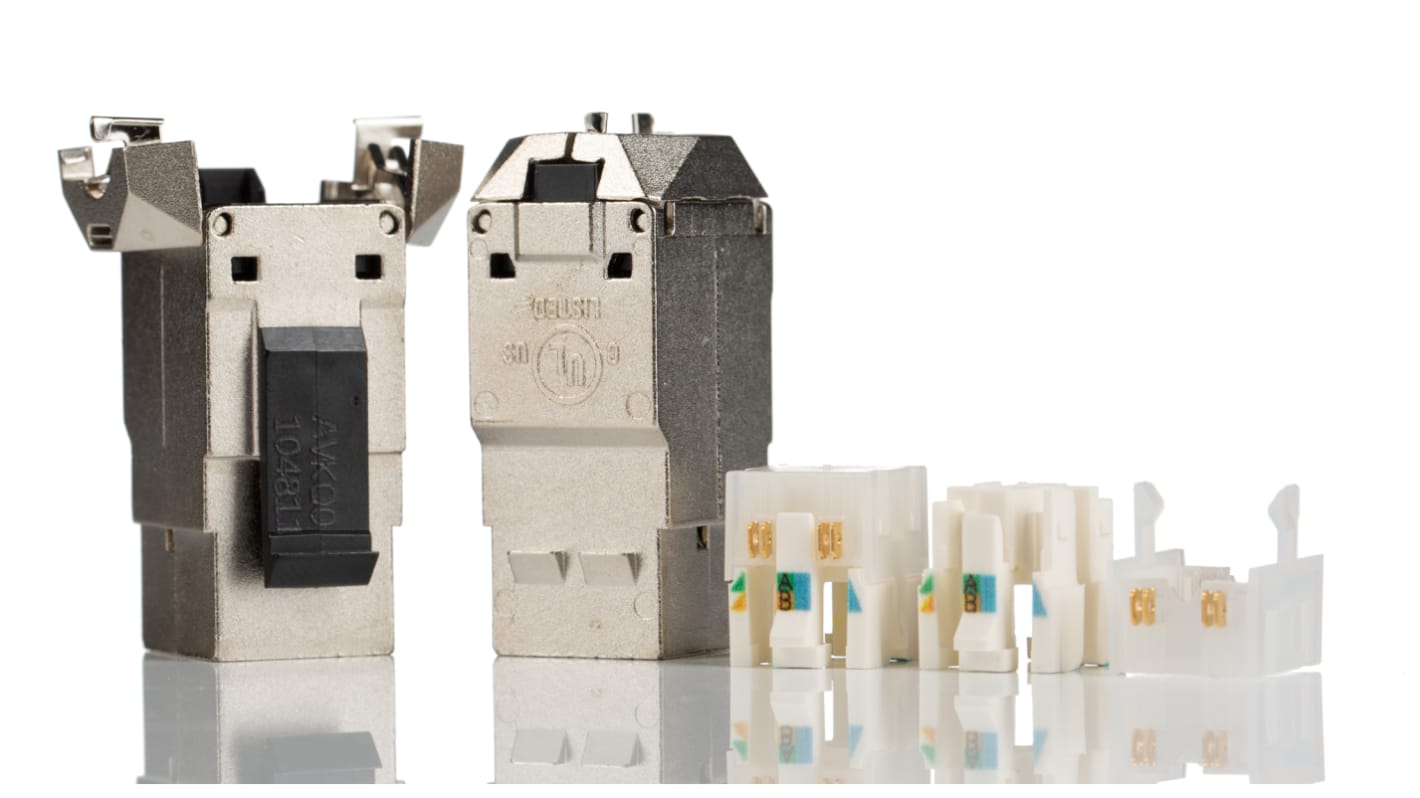

Belden RJ45 Connector For Ethernet Cables, 30.2mm Length, Straight Orientation - REVConnect Series - RVAMJKSME-B24
Looking for an Ethernet jack that's quick and easy to terminate? Try this RJ45 connector from Belden. Its no-pair separation design means you can rapidly install both bonded and non-bonded pair wires. The unit is immune to noise and electromagnetic interference, for uninterrupted bandwidth flow. Gold-plated contacts help to ensure an uninhibited electrical path to keep your network running efficiently. With a die-cast nickel-plated body, this connector is robust and long-lasting, so it's a good choice for demanding industrial environments.
Features & Benefits
• Compatible with both shielded and unshielded cables for versatility
• Compact dimensions of 30.22 (L) x 41.40 (W) x 23.87mm (D) make it suitable for use in busy setups
• Flame-retardant for safety, so won't catch alight in the event of a fire
• Compact dimensions of 30.22 (L) x 41.40 (W) x 23.87mm (D) make it suitable for use in busy setups
• Flame-retardant for safety, so won't catch alight in the event of a fire
Applications
• IP devices
• Automated assembly lines
• Food and beverage production
• Automated assembly lines
• Food and beverage production
What's the current rating of this connector?
This jack has a current rating of 1.3A for wide compatibility.
規格
Attribute | Value |
---|---|
Ethernet Connector Type | RJ45 Connector |
Gender | Female |
LAN Category | Cat6a |
Mounting Type | Cable Mount |
Number of Ports | 1 |
Shield Type | STP |
Orientation | Straight |
Length | 30.22mm |
Width | 41.4mm |
Depth | 23.87mm |
Series | REVConnect |
Contact Material | Copper Alloy, Gold Plated |
Contact Plating | Gold over Nickel |
