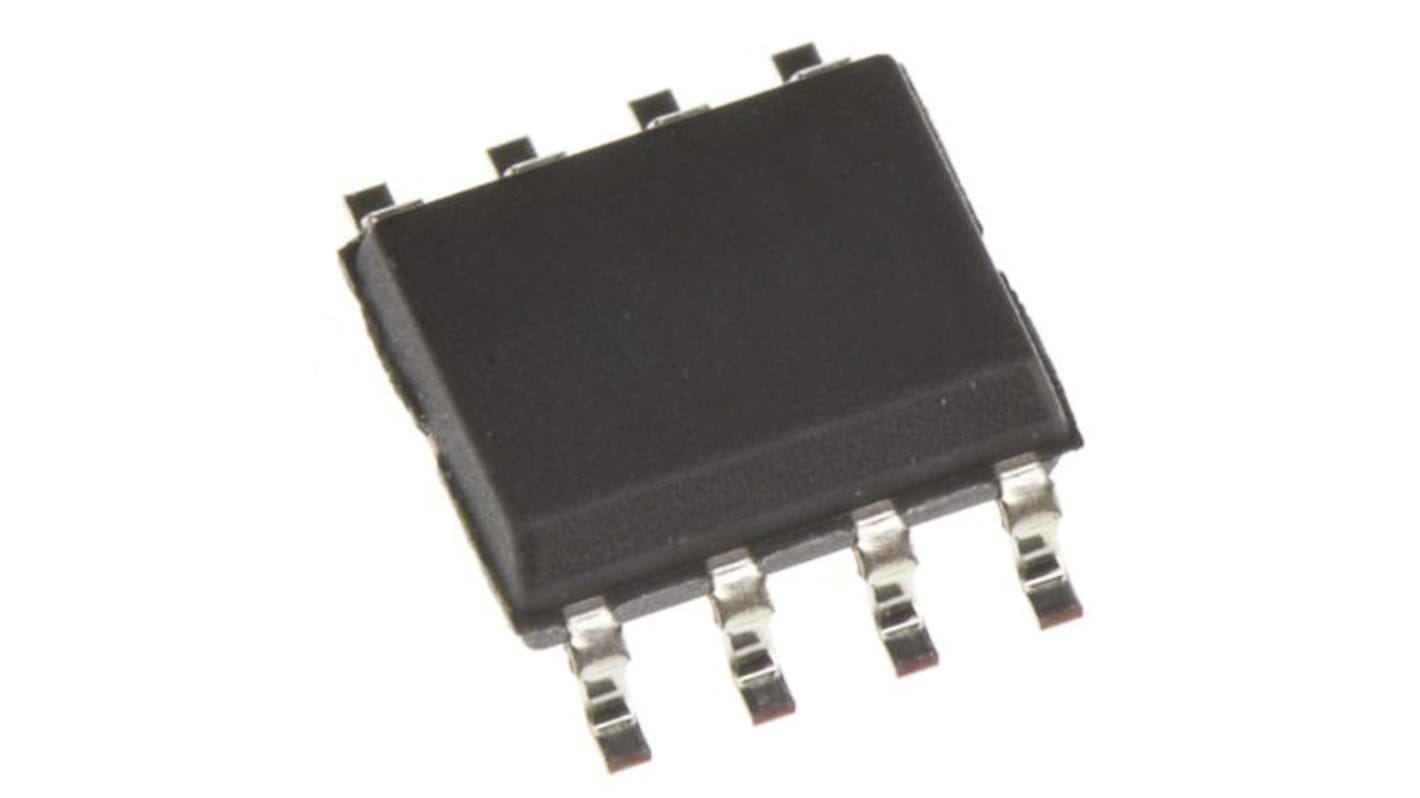

Infineon NOR 64Mbit Quad-SPI Flash Memory 8-Pin SOIC, S25FL064LABMFI010
- RS庫存編號:
- 181-1555
- 製造零件編號:
- S25FL064LABMFI010
- 製造商:
- Infineon
2240 現貨庫存，可於3工作日發貨。
已增加
單價 个（每套 280）
HK$16.058
| 單位 | Per unit | Per Tray* |
| 280 - 1120 | HK$16.058 | HK$4,496.24 |
| 1400 + | HK$15.737 | HK$4,406.36 |
| * 參考價格 | ||
- RS庫存編號:
- 181-1555
- 製造零件編號:
- S25FL064LABMFI010
- 製造商:
- Infineon
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Cypress Semiconductor Flash Memory
The Cypress Semiconductor is an S25FL064L series, 8-pin, 8-bit, Quad-SPI NOR 64Mbit SOIC package flash memory chip. It has a voltage rating that ranges between 2.7V to 3.6V. This flash memory supports SPI single bit serial input and output (Single I/O or SIO) as well as optional two-bit (Dual I/O or DIO) and four-bit wide Quad I/O (QIO) and quad peripheral interface (QPI) commands.
Features and Benefits
• 65nm floating gate technology
• Legacy block protection-block range
• Operating temperature ranges between -40°C and 85°C
• Page programming buffer that allows up to 256bytes to be programmed in one operation and provides individual 4kb sector, 32kb half block sector, 64kb block sector or entire chip erase
• Power supply lock-down, password or permanent protection of security regions
• Quad peripheral interface option
• Status and configuration register protection
• Legacy block protection-block range
• Operating temperature ranges between -40°C and 85°C
• Page programming buffer that allows up to 256bytes to be programmed in one operation and provides individual 4kb sector, 32kb half block sector, 64kb block sector or entire chip erase
• Power supply lock-down, password or permanent protection of security regions
• Quad peripheral interface option
• Status and configuration register protection
Applications
• Digital audio players
• Digital cameras
• Laptop and computers
• PDAs
• Digital cameras
• Laptop and computers
• PDAs
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Memory Size | 64Mbit |
| Interface Type | Quad-SPI |
| Package Type | SOIC |
| Pin Count | 8 |
| Organisation | 8M x 8 bit |
| Mounting Type | Surface Mount |
| Cell Type | NOR |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Block Organisation | Symmetrical |
| Length | 5.28mm |
| Height | 1.9mm |
| Width | 5.28mm |
| Dimensions | 5.28 x 5.28 x 1.9mm |
| Maximum Random Access Time | 8ns |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +85 °C |
| Number of Bits per Word | 8bit |
| Series | S25FL |
| Number of Words | 8M |
