產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

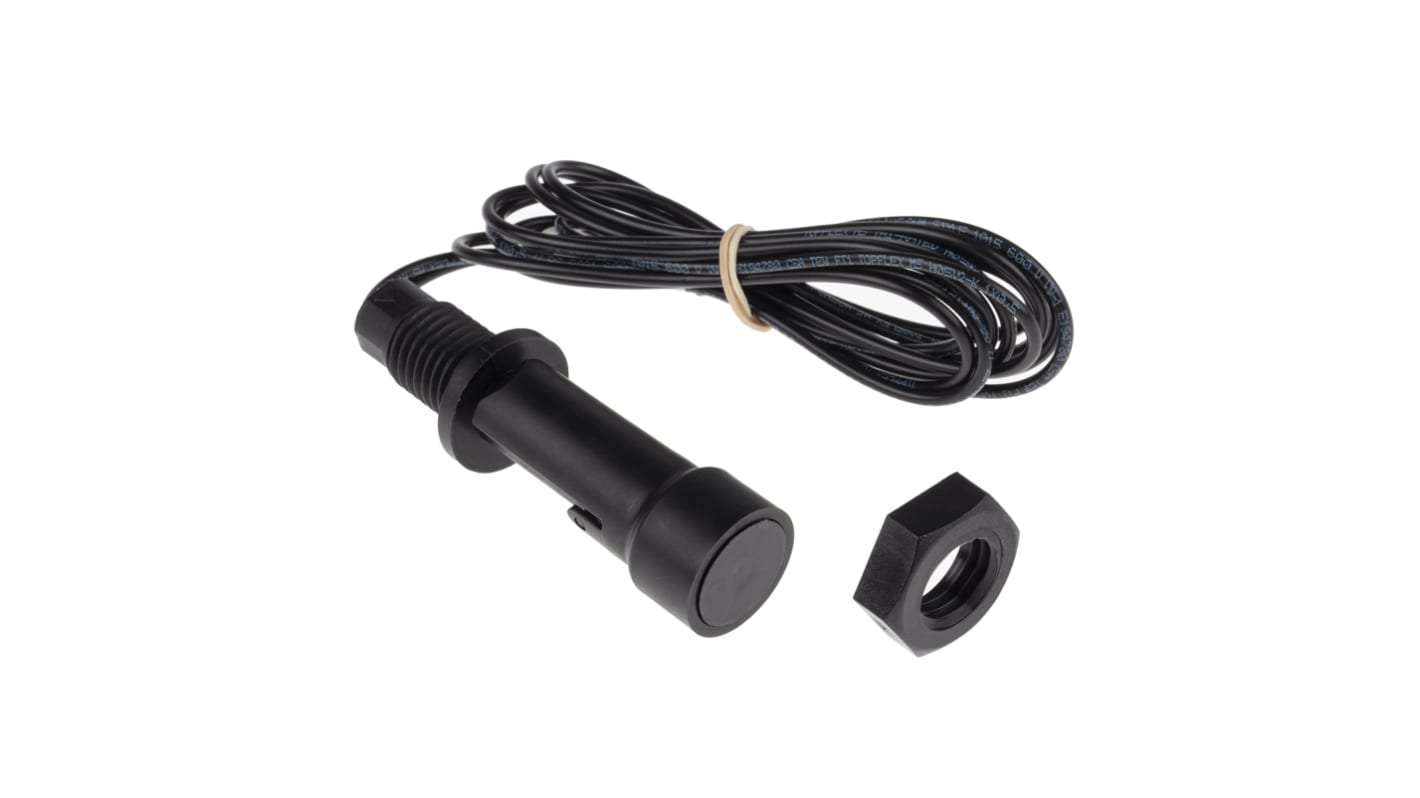

RS PRO Float Switch
The RS PRO float switch is a compact internal fitting device with nylon body. The device needs to be mounted inside. The switch action may be reversed by rotating the device through 180°. Cable sets with M12 plugs are also available.
Features and Benefits
• 25VA version
• Compact design
• Flying lead or M12 plug connection
• Switch output is SPNO
• Compact design
• Flying lead or M12 plug connection
• Switch output is SPNO
Applications
• Commercial dish washers
• Evaporator units
• Size sensitive applications
• Vending machines
• Evaporator units
• Size sensitive applications
• Vending machines
Certifications
• WRAS
規格
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Horizontal Internal |
Switch Output | SPNO |
Body Material | Nylon |
Cable Length | 1m |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +75°C |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 120V |
Maximum Current | 600 mA |
Gasket Material | Nitrile |
Series | RSF40 |
Current Rating | 0.6 A |
Standards Met | WRAS |
