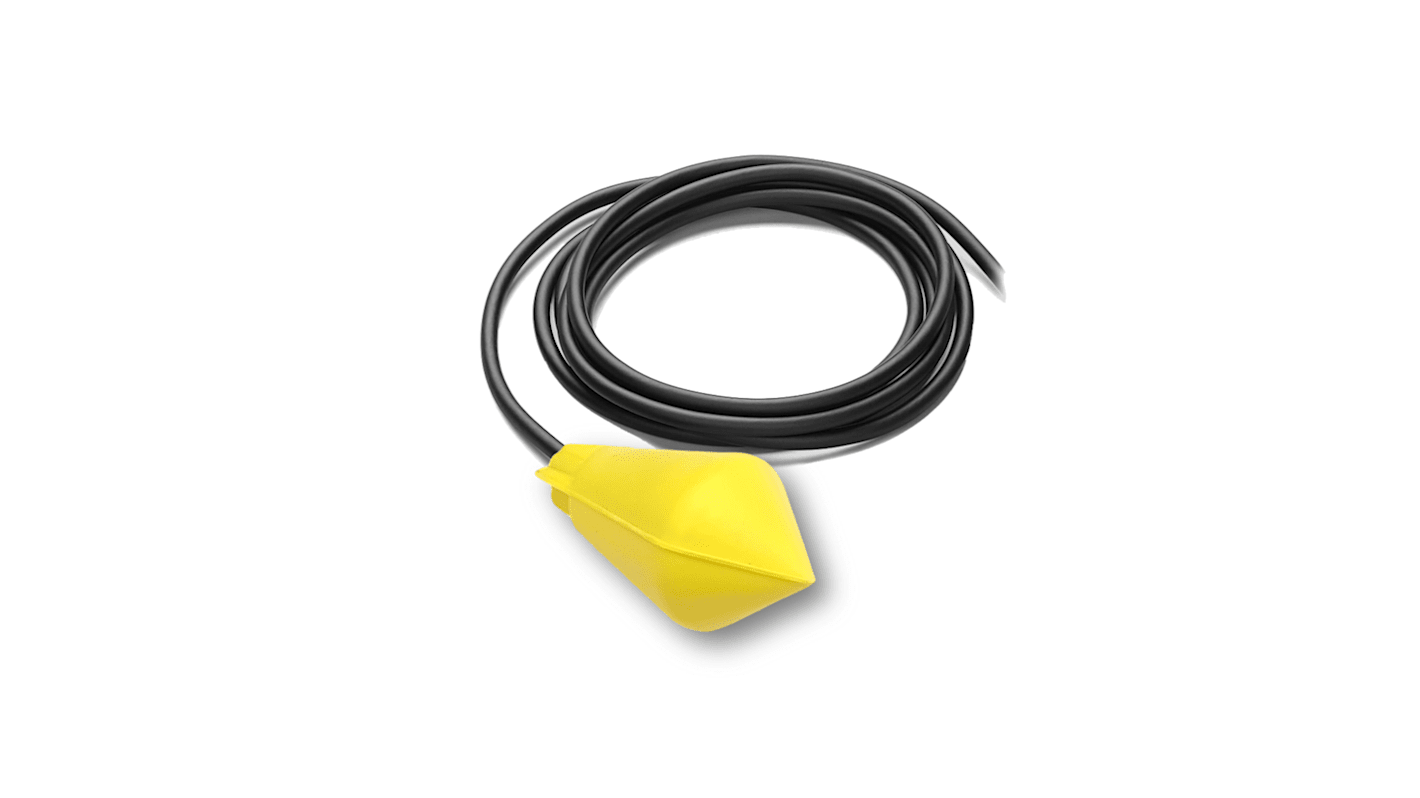

ATMI Cable Mount Copolymer Polypropylene Float Switch, Float, 20m Cable, SPDT, 400V ac Max, 250V dc Max
- RS庫存編號:
- 208-5473
- 製造零件編號:
- BIPSTOPVRNE20M
- 製造商:
- ATMI
- RS庫存編號:
- 208-5473
- 製造零件編號:
- BIPSTOPVRNE20M
- 製造商:
- ATMI
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
The BIP STOP is a small float switch designed for the automatic control of small pumps (until 1.5 CV).
Thanks to its wide switching angle of 110°, the BIP STOP protects the pump's engine and the electrical panels from jerking. This feature is highly appreciated in agitated liquids.
Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 m.
These float level switches are used wherever magnetic level controllers can not be used because of impurities or deposits that may trap the float.
Thanks to its wide switching angle of 110°, the BIP STOP protects the pump's engine and the electrical panels from jerking. This feature is highly appreciated in agitated liquids.
Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 m.
These float level switches are used wherever magnetic level controllers can not be used because of impurities or deposits that may trap the float.
Maximum pressure 3.5 bar
Maximum temperature 85°C
Protection index IP68
Maximum temperature 85°C
Protection index IP68
規格
Attribute | Value |
|---|---|
| Device Type | Float |
| For Use With | Liquid Level Alarm and Pump Controller |
| Mounting Type | Cable Mount |
| Switch Output | SPDT |
| Body Material | Copolymer Polypropylene |
| Cable Length | 20m |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Maximum AC Voltage | 400V |
| Maximum DC Voltage | 250V |
| Maximum Pressure | 3.5bar |
