ATMI Cable Mount Copolymer Polypropylene + HR HY Float Switch, Float, 10m Cable, SPDT, 250V ac Max, 125V dc Max
- RS庫存編號:
- 208-5493
- 製造零件編號:
- SOBAEXATEX10M
- 製造商:
- ATMI
3 在3 工作日內發貨 (海外庫存)
11 在3 工作日內發貨 (海外庫存)
已增加
單價 个
HK$2,905.02
| 單位 | Per unit |
| 1 - 4 | HK$2,905.02 |
| 5 + | HK$2,390.83 |
- RS庫存編號:
- 208-5493
- 製造零件編號:
- SOBAEXATEX10M
- 製造商:
- ATMI
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊

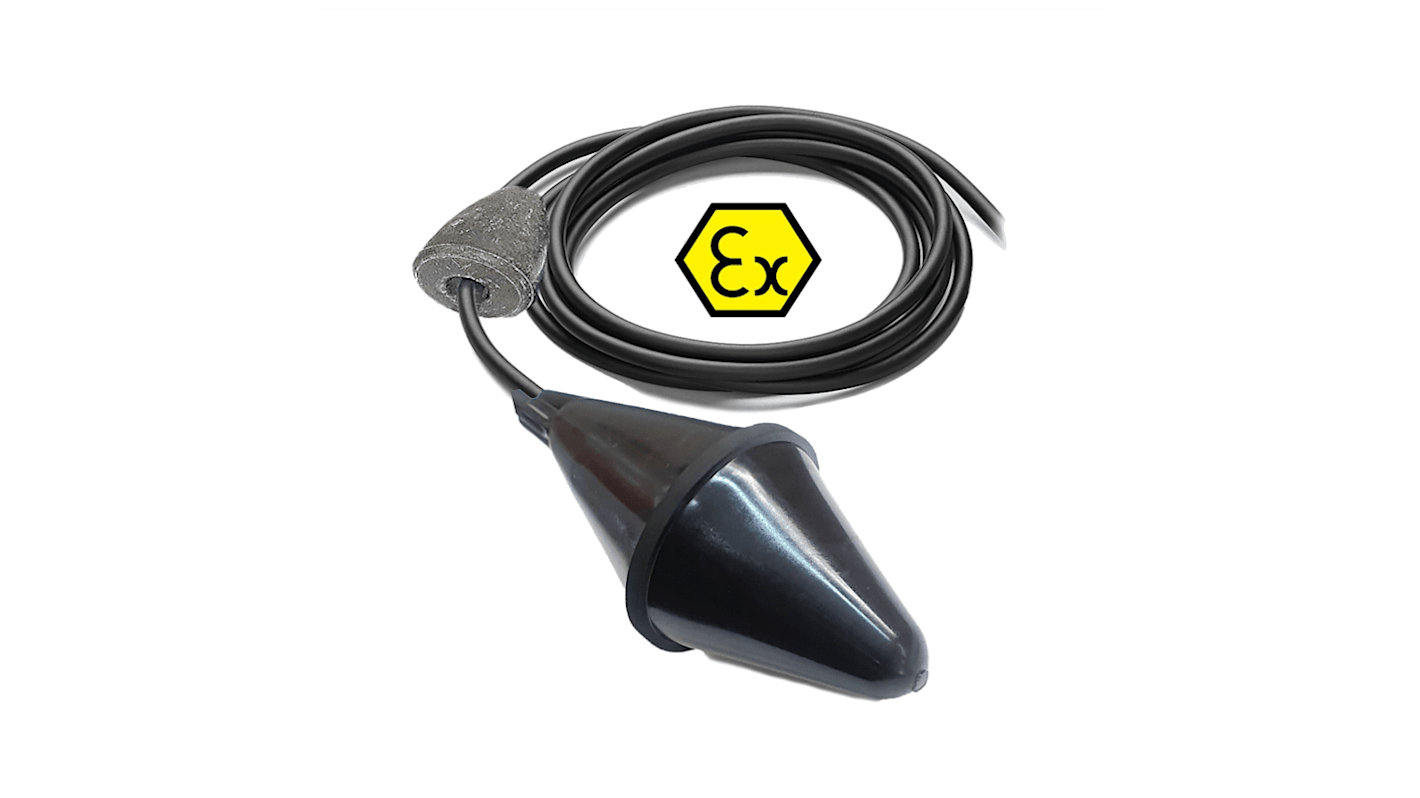

This ATEX certified float switch is ideal for hazardous environments 0, 1, 2 (gas) and 20, 21, 22 (dust). This float is encased in a HR HY (High Resistance HYpalon) press-vulcanised housing, which ensures a double waterproof, can ensure a regulation in very agressive liquids.
The SOBA EX ATEX certified level regulator are equipped with an external loaded resin ballast 250 g, adjustable on the cable, which facilitates the rotation point of the level sensor and allows it to work in a wide range of densities.
Thanks to its +/- 25° switching angle, the SOBA ensures a very precise level measurement. The device can also be used in high or low alarm.
The SOBA EX ATEX certified level regulator are equipped with an external loaded resin ballast 250 g, adjustable on the cable, which facilitates the rotation point of the level sensor and allows it to work in a wide range of densities.
Thanks to its +/- 25° switching angle, the SOBA ensures a very precise level measurement. The device can also be used in high or low alarm.
Maximum pressure 4 bar
Maximum temperature 70°C
Protection index IP68
Maximum temperature 70°C
Protection index IP68
規格
Attribute | Value |
|---|---|
| For Use With | Liquid Level Alarm and Pump Controller |
| Device Type | Float |
| Mounting Type | Cable Mount |
| Switch Output | SPDT |
| Body Material | Copolymer Polypropylene + HR HY |
| Cable Length | 10m |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +90°C |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 125V |
| Maximum Pressure | 4bar |
| Hazardous Area Certification | ATEX |
