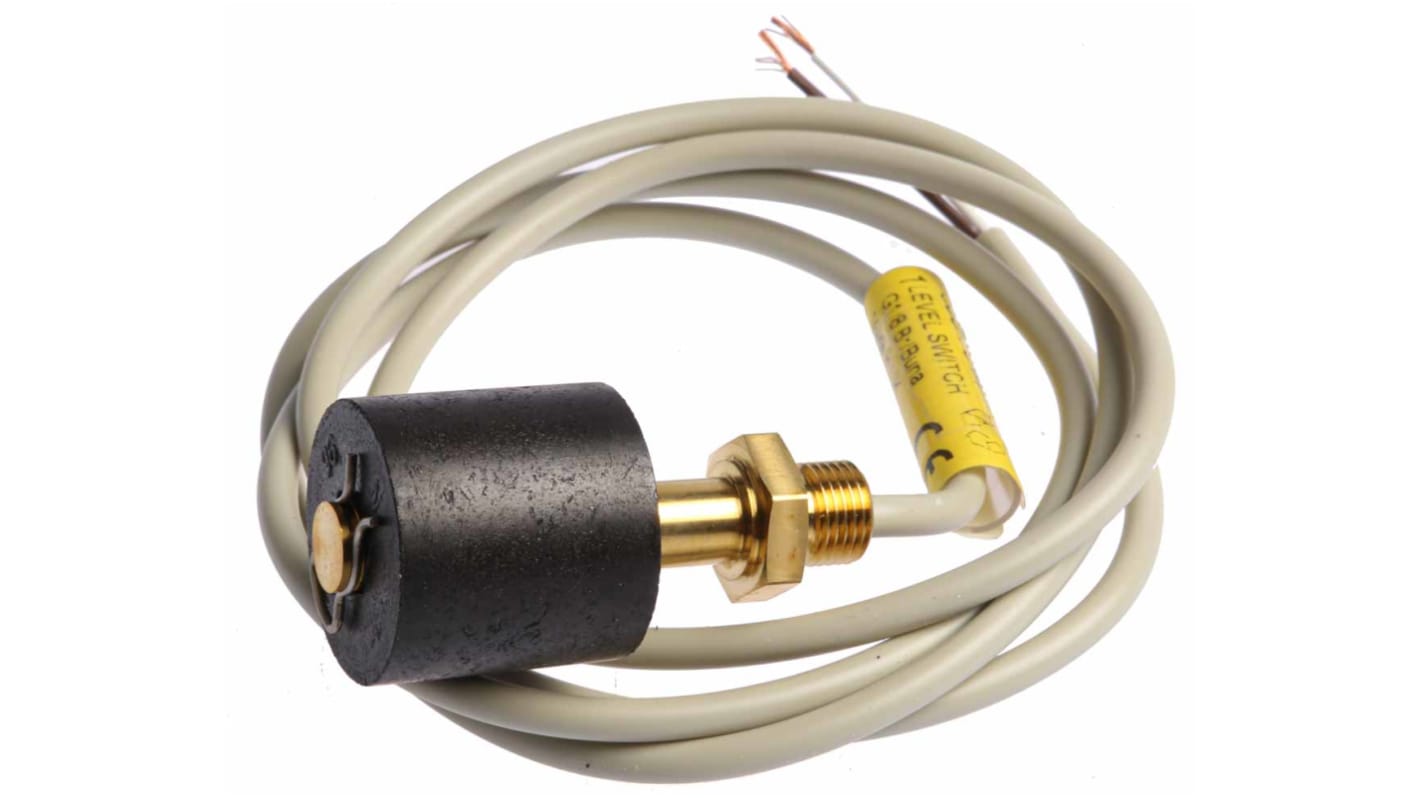

Brass stem N float metal switch,G1/8

  • RS庫存編號 395-7044
  • 製造零件編號 011-1700
  • 製造商 Gems Sensors
產品概覽和技術數據資料表
法例與合規
不適用
COO (Country of Origin): GB
產品詳細資訊

Metal Level Switches – Series 1700

IP64 rated
Output is SPST that will either be normally closed or normally open depending on the orientation of the float, the position of which can be reversed

//media.rs-online.com/t_line/L395704-02.gif
//media.rs-online.com/t_line/L395704-03.gif
//media.rs-online.com/t_line/LI395704-03.gif

Gems Sensors Metal Switch

The Gems Sensors metal switch is the latest innovation that offers broad chemical compatibility for general purpose applications. This device is also ideal for oils and water. With SPST output, it will either be normally closed or opened. Depending on the orientation of the float, the position can be reversed.Warning:The cable entry point must not be submerged under any circumstancesThey must be fitted through the wall of a tank on the horizontal switches so that the cable is on the outsideOn the vertical type, the mounting thread and cable entry must be above the highest level of the liquid

Features and Benefits

Operating pressure is 10bar Depth of immersion is 9mm Min SG of liquids is 0.45 Mounting thread is G1/8

Certifications

IP64 rated

Warning

  • The Cable entry point must NOT under any circumstances be submerged.
    On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
    On the vertical type the mounting thread and cable entry must be above the highest level of the liquid.
規格
Attribute Value
Device Type Float
Mounting Type Horizontal, Vertical
Switch Output Relay
Body Material Brass/NBR
Cable Length 1m
Minimum Operating Temperature -40°C
Maximum Operating Temperature +80°C
Maximum Pressure 10bar
