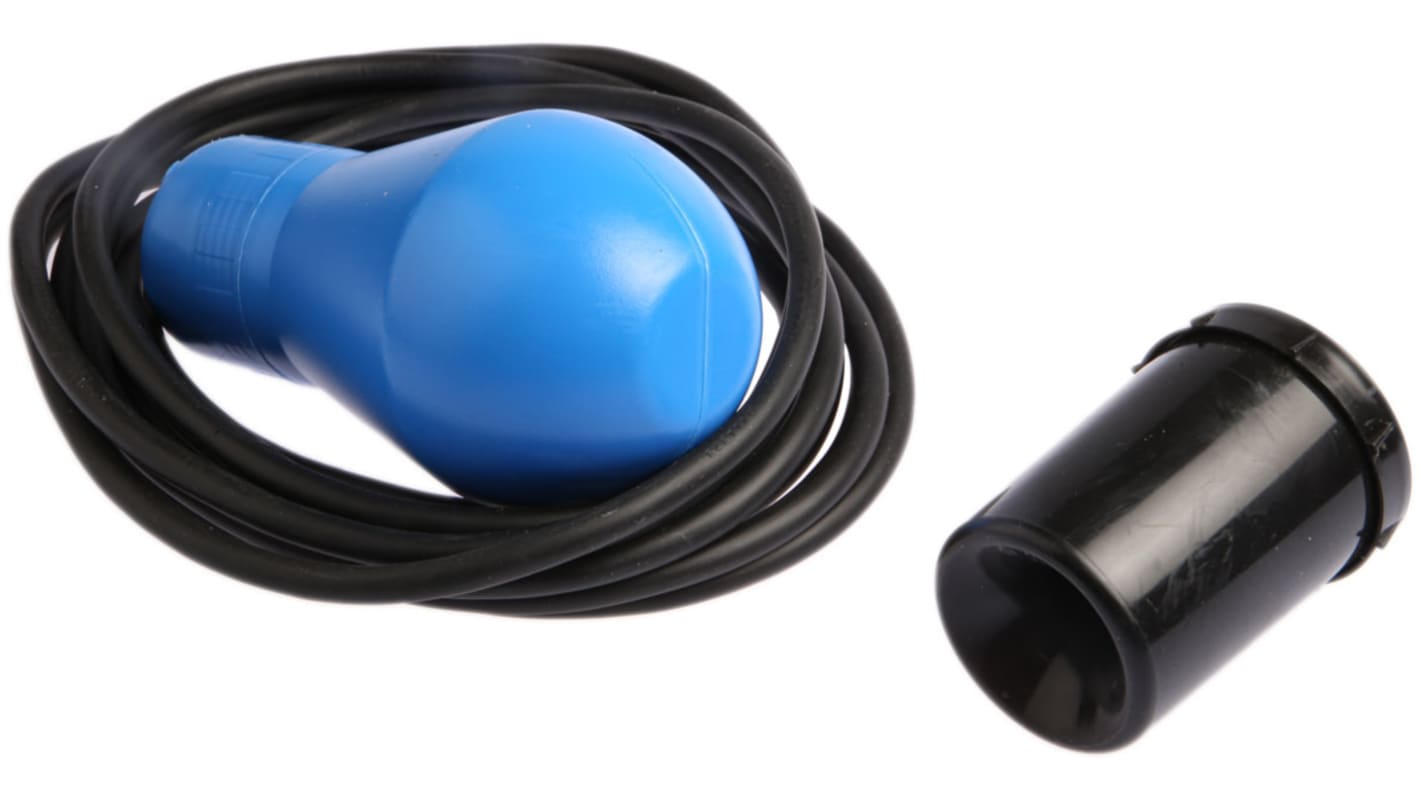

LM10A NO compact cable float switch

  • RS庫存編號 454-9076
  • 製造零件編號 LM10A
  • 製造商 Cynergy3
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): IT
產品詳細資訊

LM Cable Float Switch (Submerged)

Suitable for use in sewage and industrial waste water, and where there is a wide variation in temperature. Ideal for use in confined spaces due to its compact design.

Internal Ballast
Insensitive to Humidity and Condensation
Adjustable Counterweight
Specific Gravity of Liquid: 0.6
IP68 Sealed to Withstand 10 Bar
High Density Polyethylene Casing (PEHD)
100m Depth Capacity
Overall Size 129 x 75mm Diameter

Note

LM10A and LM10B both have a protective earth, LM10C does not

規格
Attribute Value
Device Type Float
Switch Output Direct Load
Body Material PE
Cable Length 5m
Minimum Operating Temperature 0°C
Maximum Operating Temperature +55°C
Maximum Current 1 A dc, 4 A ac
Maximum Pressure 10bar
