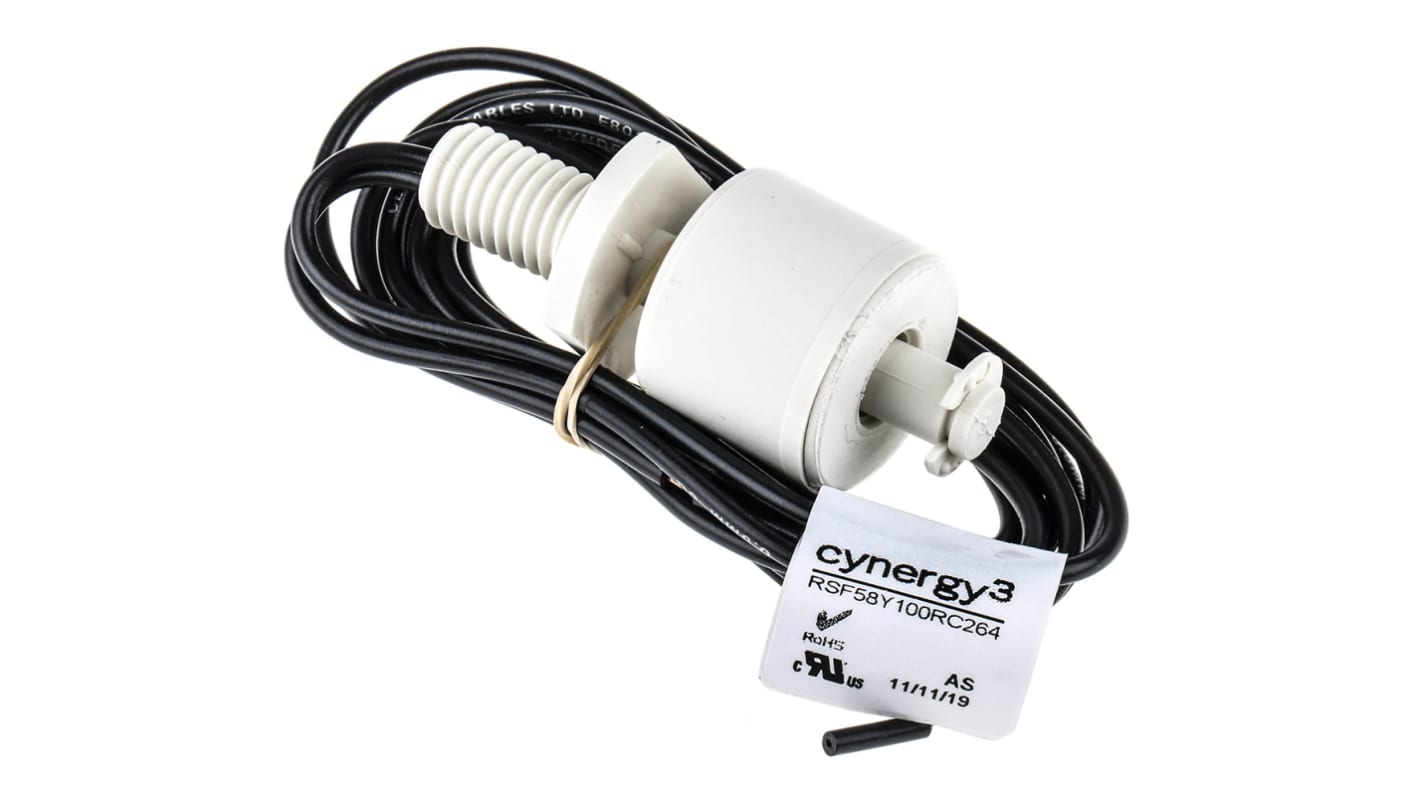

Sensata / Cynergy3 RSF50 Series Vertical Polypropylene Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max
- RS庫存編號:
- 725-9940
- 製造零件編號:
- RSF58Y100RC
- 製造商:
- Sensata / Cynergy3
- RS庫存編號:
- 725-9940
- 製造零件編號:
- RSF58Y100RC
- 製造商:
- Sensata / Cynergy3
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
Vertical Float Switches
The RSF50 series of compact vertical float switches have a single switching point, mounting is either from the top or bottom of the tank therefore access to the inside of the tank is required. These float switches are ideal for vending machine, printing systems, and chemical dosing applications.
Features & Benefits
Manufactured in a variety of materials with a choice of gasket materials to suit most commonly used liquids
Mounting in top or bottom of tank
N/O versions can be configured as N/C by float inversion
All units WRAS approved for use in hot and cold water
Mounting in top or bottom of tank
N/O versions can be configured as N/C by float inversion
All units WRAS approved for use in hot and cold water
Note
Part numbers ending in '1/8' have a 1/8"NPT mounting thread
Part numbers ending in 'C' have an M12 mounting thread
Part numbers ending in 'C' have an M12 mounting thread
Warning
The cable entry point must NOT under any circumstances be submerged.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the Vertical type the mounting thread and cable entry must be above the highest level of the liquid.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the Vertical type the mounting thread and cable entry must be above the highest level of the liquid.
Supplied with
epoxy sealed leadouts
Sensata Cynergy3 Internal Mount Vertical Float Switch, NO/NC, 1m - RSF50 Series - RSF58Y100RC
Regulate liquid levels in your tank or sump with this Sensata Cynergy3 float switch. Changes in liquid level cause the float to move which brings the internal magnet into close proximity with the reed switch, activating an open or closed circuit. This compact and durable device is most commonly used to operate a pump, and typical applications include vending machines, printing systems and chemical-dosing equipment. It can be fitted to the top or bottom of your tank to suit your access needs.
Features & Benefits
• NO (normally open) or NC (normally closed) options for flexibility when designing your electrical circuit
• Wide operating temperature range of -20°C to +100°C for use in challenging environments
• 1m cable gives connection flexibility when installing
• Standard M12 mounting thread for universal connections
• Wide operating temperature range of -20°C to +100°C for use in challenging environments
• 1m cable gives connection flexibility when installing
• Standard M12 mounting thread for universal connections
What different features do RSF50 series float switches have?
Expertly designed Sensata Cynergy3 float switches are manufactured in a variety of durable plastics. They also come with a choice of gasket materials to suit the most commonly used liquids. Conveniently, the action of all of the switches can be reversed by removing the float, inverting it, then refitting it to the stem.
規格
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Vertical |
Switch Output | NO/NC |
Body Material | Polypropylene |
Cable Length | 1m |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +100°C |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 120V |
Maximum Current | 600 mA |
Gasket Material | Nitrile |
Series | RSF50 |
Standards Met | UL |
Current Rating | 600 mA |
