- RS庫存編號:
- 441-4879
- 製造零件編號:
- S.800004
- 製造商:
- Parker
此產品已停售
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
- RS庫存編號:
- 441-4879
- 製造零件編號:
- S.800004
- 製造商:
- Parker
法例與合規
不適用
產品詳細資訊

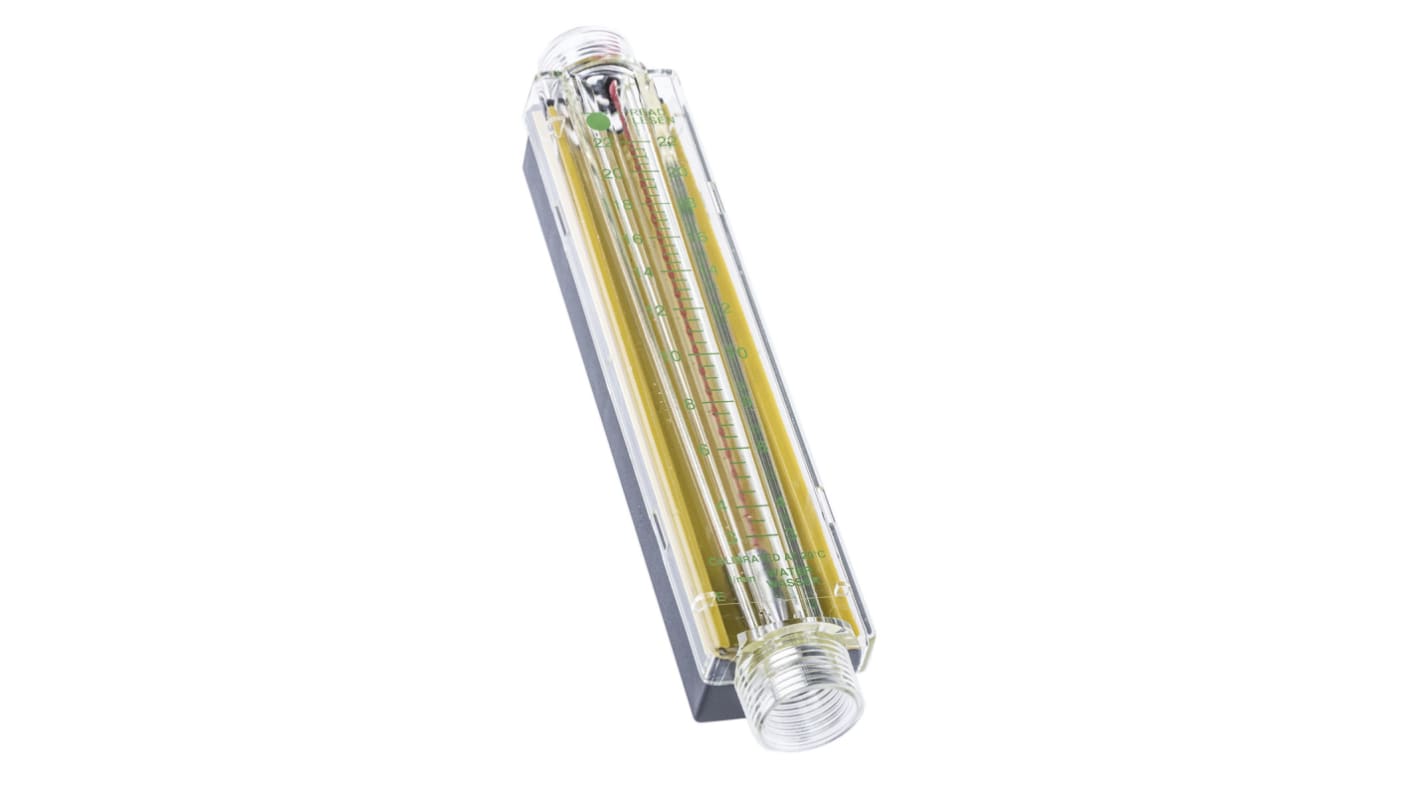

Parker Flowmeter
The Parker S series variable area flowmeter measures a liquid flow rate of 3L/min to 22L/min. This variable flow indicators with a float inside an outer graduated flow scale on the viewing sleeve. It utilises the technique of differential pressure across a piston. As the flow increases, the piston moves against a calibrated spring.
Features and Benefits
Pipe diameter range is 3/4 in
Connection type is 3/4 BSP
Maximum operating pressure is 10bar
Maximum operating temperature is 60°C
It has accuracy ±2%
Repeatability ±1%
Operating pressure is 10bar
It be installed in a vertical plane for maximum accuracy
Connection type is 3/4 BSP
Maximum operating pressure is 10bar
Maximum operating temperature is 60°C
It has accuracy ±2%
Repeatability ±1%
Operating pressure is 10bar
It be installed in a vertical plane for maximum accuracy
Applications
Water treatment
Cooling systems
Industrial washing systems
Irrigation
Cooling systems
Industrial washing systems
Irrigation
規格
Attribute | Value |
---|---|
Media Monitored | Liquid |
Device Type | Variable Area |
Minimum Flow Rate | 3 L/min |
Maximum Flow Rate | 22 L/min |
Pipe Diameter Range | 3/4 in |
Connection Type | 3/4 BSP |
Maximum Pressure | 10bar |
Series | S |
Maximum Operating Temperature | +60°C |
