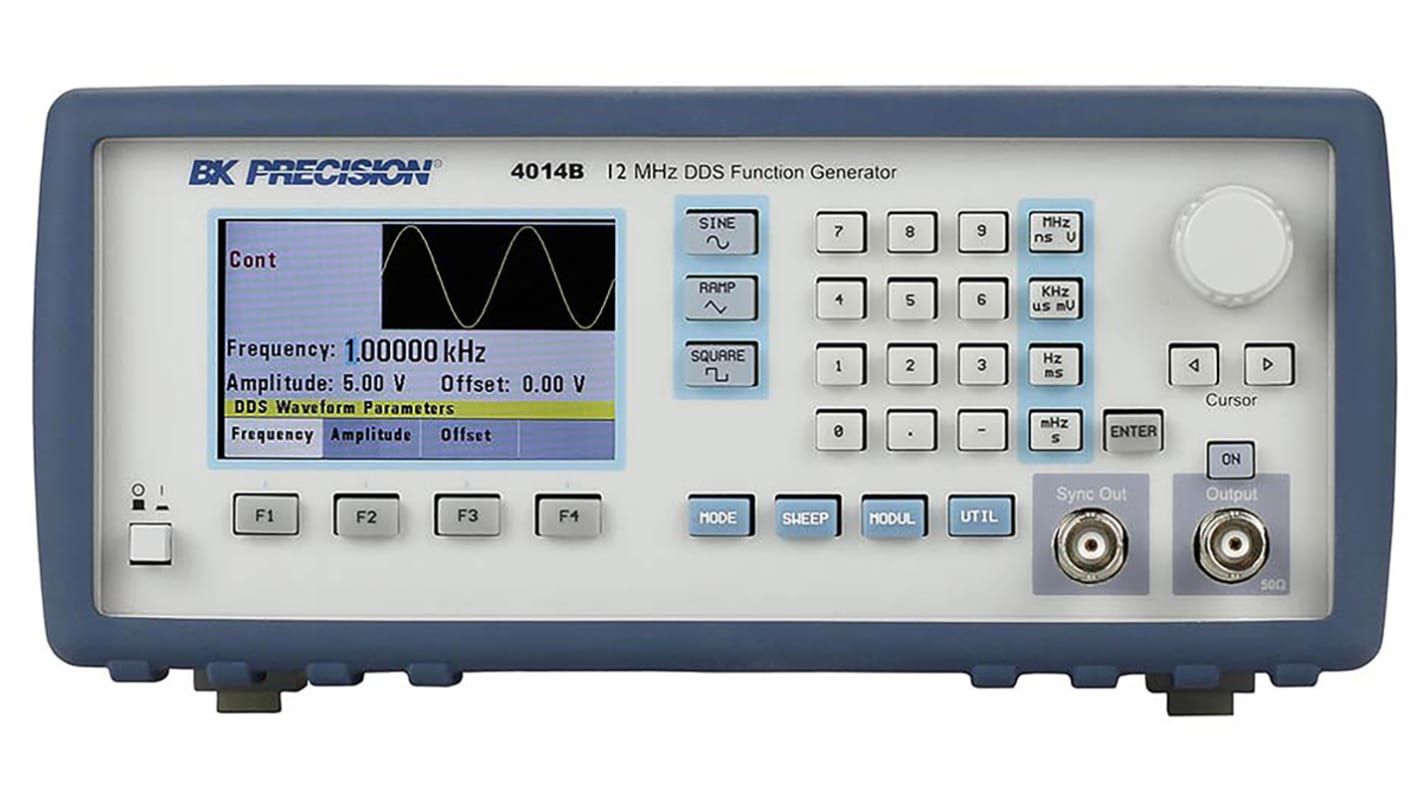

B&K Precision Model 4014B DDS Sweep Function Generator
B&K Precision model 4014B is a versatile sweep function generator designed with dual technology architecture which combines direct digital synthesis (DDS) and a low-jitter square wave generator. The instrument generates sine, square and triangle waveforms with high signal precision and stability. It provides variable output voltages from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.
Features and Benefits
Sine, square, and triangle/ramp waveform generation
Bright colour LCD display with waveform preview
Linear and logarithmic sweep
AM/FM modulation
Adjustable duty cycle
Independent DC offset amplifier design allows large offsets on small amplitude (e.g. 10 mV) waveforms
Store and recall instrument settings
Output On/Off button
Internal/external triggering
Gate and burst mode
Built-in counter
USB interface with SCPI-compliant command set
Short circuit and overvoltage protection on all inputs and outputs
Bright colour LCD display with waveform preview
Linear and logarithmic sweep
AM/FM modulation
Adjustable duty cycle
Independent DC offset amplifier design allows large offsets on small amplitude (e.g. 10 mV) waveforms
Store and recall instrument settings
Output On/Off button
Internal/external triggering
Gate and burst mode
Built-in counter
USB interface with SCPI-compliant command set
Short circuit and overvoltage protection on all inputs and outputs
Areas of Application
Education
Other applications that require digital function generators with sweep and modulation capabilities
Other applications that require digital function generators with sweep and modulation capabilities
Note
You may also be interested in BK4040B ( 878-2135 ), 20 MHz
Supplied with
Instruction manual on CD, power cord, USB (type A to B) interface cable, certificate of calibration
B&K Precision
規格
Attribute | Value |
---|---|
Model Number | 4014B |
Digital Frequency | Yes |
Maximum Frequency Range Sinewave | 12MHz |
Minimum Frequency Range Sinewave | 0.01Hz |
Minimum Frequency Range Square Pulse and Arbitrary Waveform | 0.01 Hz |
Maximum Frequency Range Square Pulse and Arbitrary Waveform | 12MHz |
Minimum Frequency Range Triangle/Saw | 0.01Hz |
Maximum Frequency Range Triangle/Saw | 1MHz |
Digital Amplitude and Offset | Yes |
Internal Linear and Log Sweep | Yes |
Variable Sweep | Yes |
Internal and External Amplitude Modulation | Yes |
FM Modulation | Yes |
Maximum Operating Temperature | +50°C |
Dimensions | 213 x 210 x 88mm |
Interface Type | USB A, USB B |
Weight | 2.5kg |
Output Impedance | 50Ω |
Length | 213mm |
TTL Output Level | 5V Pk-Pk |
Input Impedance | 10 (Modulation) kΩ |
Width | 210mm |
Height | 88mm |
Minimum Operating Temperature | 0°C |
Output Amplitude | 20V Pk-Pk |
Frequency Range Square Pulse and Arbitrary Waveform | 0.01 Hz → 12 MHz |
