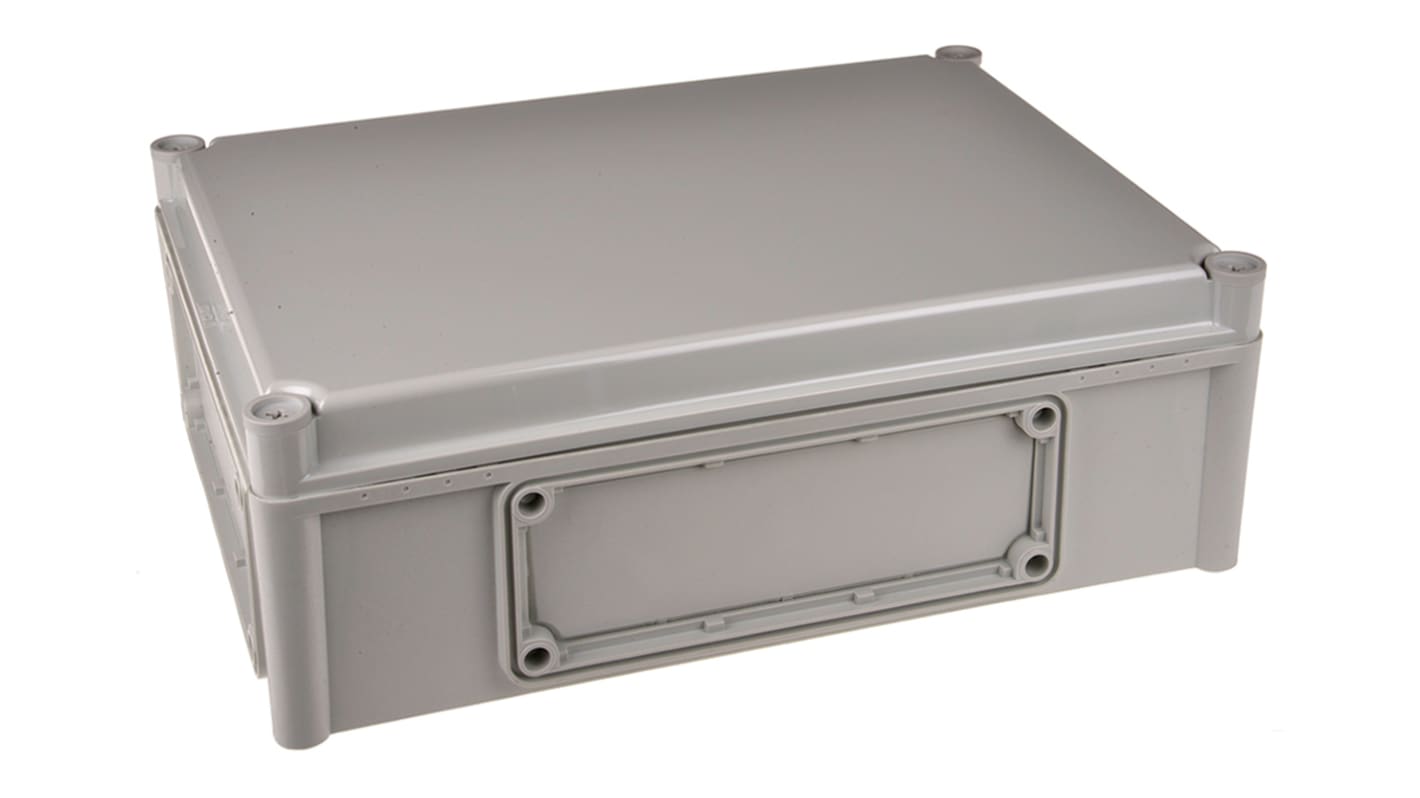

Fibox EK Polycarbonate Enclosure, IP66, IP67, Flanged, 380 x 280 x 130mm

  • RS庫存編號 581-379
  • 製造零件編號 EKPE 130 G + EKPVT
  • 製造商 Fibox
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): FI
產品詳細資訊

FIBOX Polycarbonate EK Series Enclosures

Fibox EK series enclosure, ideal for housing electrical equipment in either a single enclosure or a flexible modular system. These polycarbonate enclosures are impact resistant, self-extinguishing and resistant to most acids and alkalis. The temperature range of the enclosure material is -40°C to +120°C, (+80°C for continuous use) and the flammability rating is UL94-V2.

Features and Benefits

• Excellent choice to house electronic and electrical components
• Available with transparent or grey cover
• IP 66/67

(IP) Ingress Protection and what it means?

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ’s

Can the box be used outside?
• Yes, EK series enclosures have IP66 / IP67 rating

Can you purchase mounting plates seperately
• EK series mounting plates are supplied with this product but are also available separately

What is supplied?
• Enclosure, lid and screws, PUR/EPDM gasket and chassis plate and screws

Approvals

UL (E75645 Vol.1 Sec.4); SETI 155113-01, GL 83-92, DNV E-4644, LR 90/00196 (E4), BV (Others)

規格
Attribute Value
Body Material Polycarbonate
External Dimensions 380 x 280 x 130mm
External Length 380 mm
External Width 280 mm
External Height 130 mm
IP Rating IP66, IP67
Colour Grey
Lid Colour Grey
Flanged Yes
Series EK
Shielded No
49 現貨庫存,可於3工作日發貨。
單價 個
HK$ 638.00
(不含稅)
單位
Per unit
1 - 11
HK$638.00
12 - 24
HK$603.20
25 - 49
HK$580.00
50 +
HK$556.80
