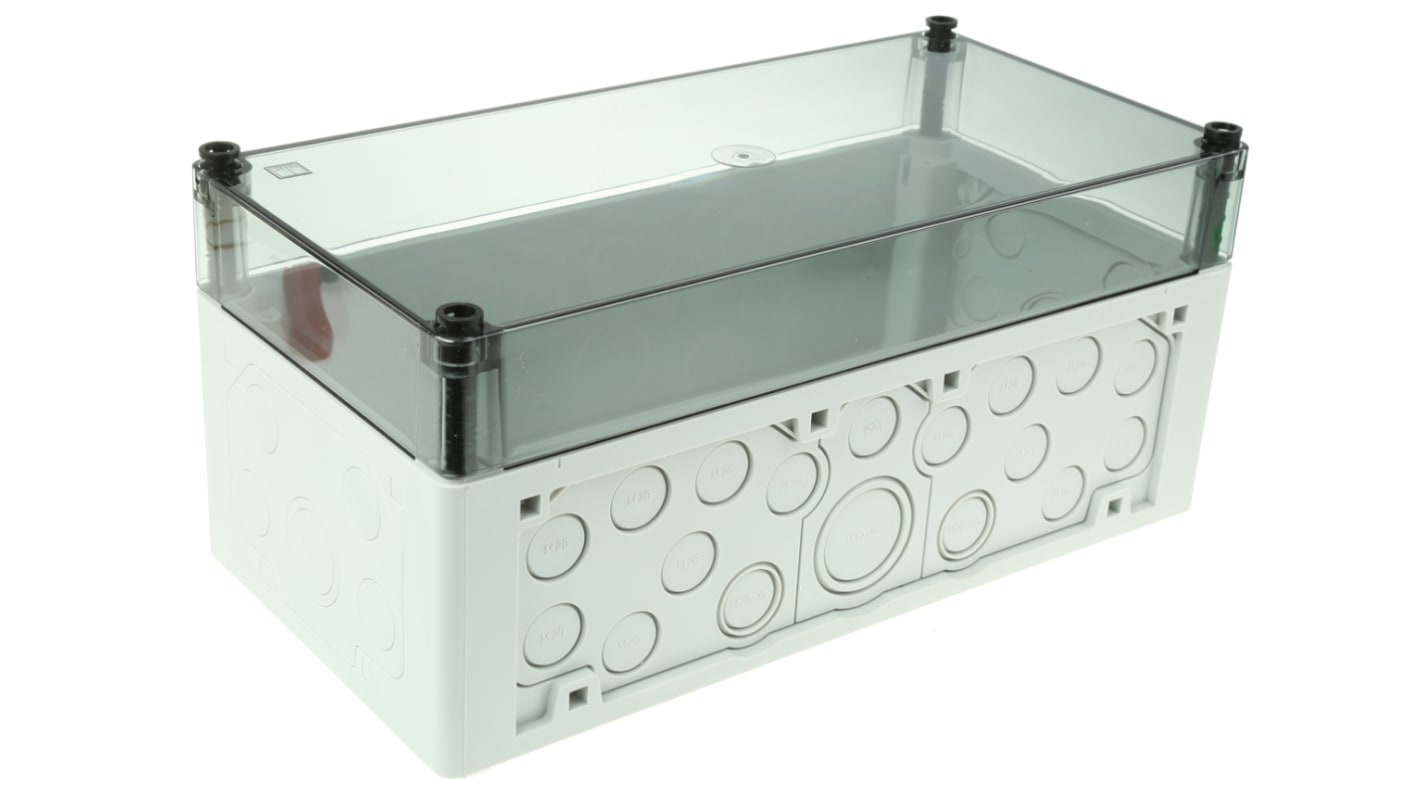

Spelsberg AKL Series Grey Polystyrene Enclosure, IP65, Transparent Lid, 300 x 150 x 132mm
- RS庫存編號:
- 381-5596
- 製造零件編號:
- 74400101
- 製造商:
- Spelsberg
- RS庫存編號:
- 381-5596
- 製造零件編號:
- 74400101
- 製造商:
- Spelsberg
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
IP65 Modular Junction Box-AKL Range
Based on 300mm wide x 132mm high module
Metric knockouts in base
Internal base has stand-off pillars to facilitate mounting DIN rails and mounting plates
Cable adaptors and sealing plugs included
Polyurethane sealing plug
Metric knockouts in base
Internal base has stand-off pillars to facilitate mounting DIN rails and mounting plates
Cable adaptors and sealing plugs included
Polyurethane sealing plug
Grey (RAL 7035) polystyrene base and transparent Polycarbonate cover with no pre-embossing and no knockouts. The Polystyrene box enclosure also includes polyurethane double membrane sealing, and polyamide 6 fibre glass reinforced cover screws. This enclosure box includes insulating plugs and attachment bushes.
What is the internal height?
114 mm
External height 132 mm
Is the Enclosure/Box Insulated?
Rated insulation voltage1000 V DC
Rated insulation voltage AC 690 V
Are there any in-built cable entries?
There are cable entries with this model.
Insulating plugs and attachment bushes are included
Does this enclosure box contain any silicone?
This article is completely silicone free.
Also free from heavy metal and PVC.
What’s the difference between a polystyrene and a polycarbonate enclosure?
Both are plastic and resistant to rust and corrosion and will not dent – unlike metal. Both at halogen free which is important to consider for applications where the possibility of fire can lead to exposure to harmful fumes.
Polystyrene is stronger than budget material like plastic, withstand knocks and has fair cable retention.
Polycarbonate is recommended for applications that may sustain heavy impact, better UV protection, resistant to temperature changes, external and internal use.
What is a Knockout?
An enclosure box with knockouts is a hole that is built into the enclosure that has covering of plastic material covering the area of the required hole. You simply break the plastic material and you have a ready-made hole for mounting.
This item does have metric knockouts in the base.
Entries?
Entries End
15 x M20
2 x M20 / M25
1 x M32 / M40
Entries On Each Side
4 x M20
1 x M25 / M32
規格
Attribute | Value |
|---|---|
| Body Material | Polystyrene |
| External Length | 300 mm |
| External Height | 132 mm |
| External Width | 150 mm |
| External Dimensions | 300 x 150 x 132mm |
| IP Rating | IP65 |
| Colour | Grey |
| Lid Colour | Transparent |
| Shielded | No |
| Series | AKL |
