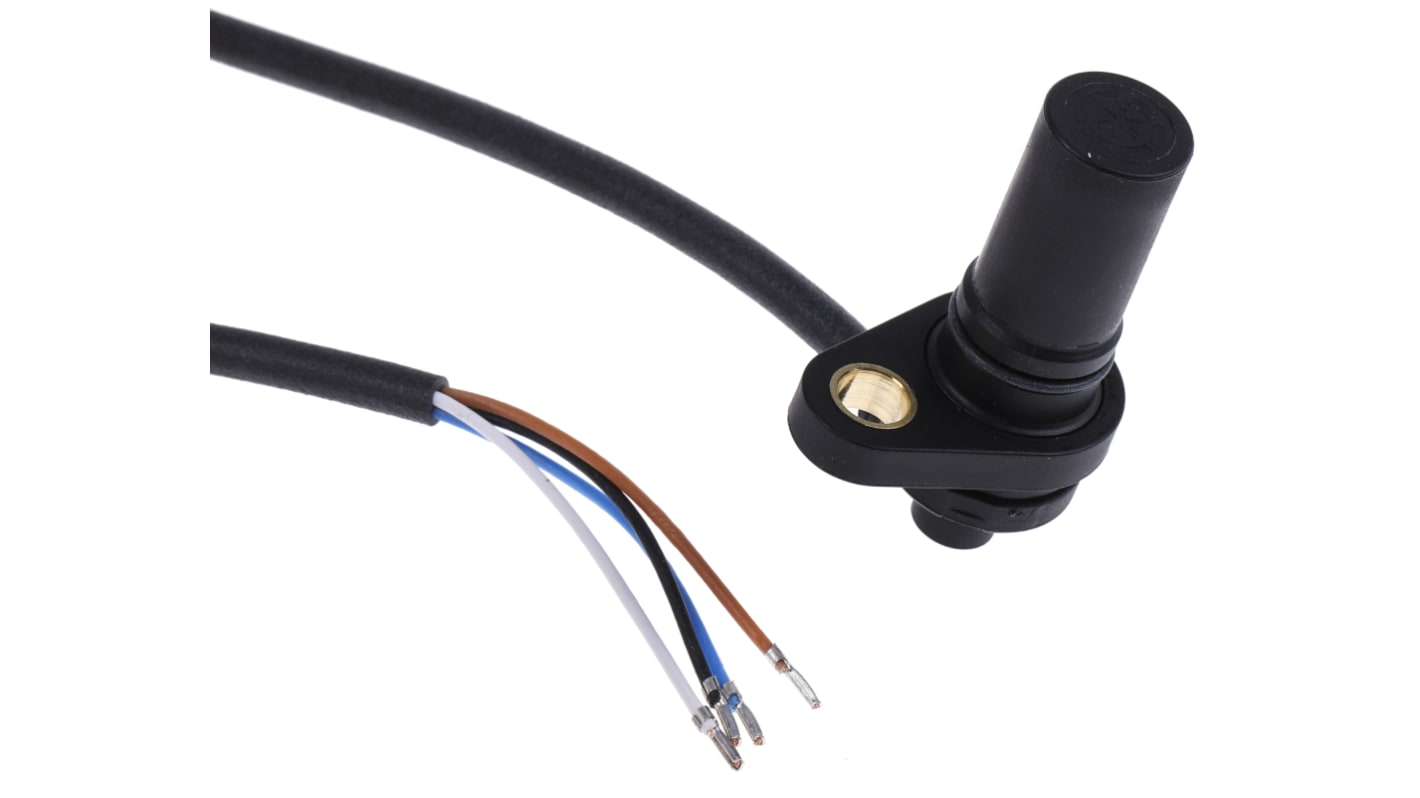

ifm electronic Cable Mount Hall Effect Sensor, NPN Output, 7 → 30 V dc, Barrel Body, 1.7 mm, 30V
- RS庫存編號:
- 123-8748
- 製造零件編號:
- MX5015
- 製造商:
- ifm electronic
- RS庫存編號:
- 123-8748
- 製造零件編號:
- MX5015
- 製造商:
- ifm electronic
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
ifm electronic MX5 Series Hall Effect Speed Sensors
Ifm electronic MX5 series hall effect speed sensors for non-contact detection of speed and direction of rotation. High switching frequency and an extended temperature range make the MX5 sensors ideal for speed and rotation detection on drives, axes and shafts. The sensors use hall measuring cells that function reliably without contact, even in cases of heavy soiling.
Switching frequencies up to 15000 Hz
Precise detection and reduced phase shift
Wide temperature range: -32…125 °C
Flanged housing
Precise detection and reduced phase shift
Wide temperature range: -32…125 °C
Flanged housing
規格
Attribute | Value |
|---|---|
| Output Type | NPN |
| Body Style | Barrel |
| Mounting Style | Cable Mount |
| Supply Voltage | 7 → 30 V dc |
| Terminal Type | Wire Lead |
| Maximum DC Voltage | 30V |
| Detection Range | 1.7 mm |
| Switching Current | 50 mA |
| Switching Frequency | 15 kHz |
| Width | 15 (Dia.)mm |
| Depth | 49.5mm |
| IP Rating | IP67, IP69K |
| Dimensions | 15 (Dia.) x 49.5 mm |
| Maximum Operating Temperature | +140°C |
| Minimum Operating Temperature | -32°C |
| Housing Material | Brass (Socket), FPM (O-Ring), Polyamide |
