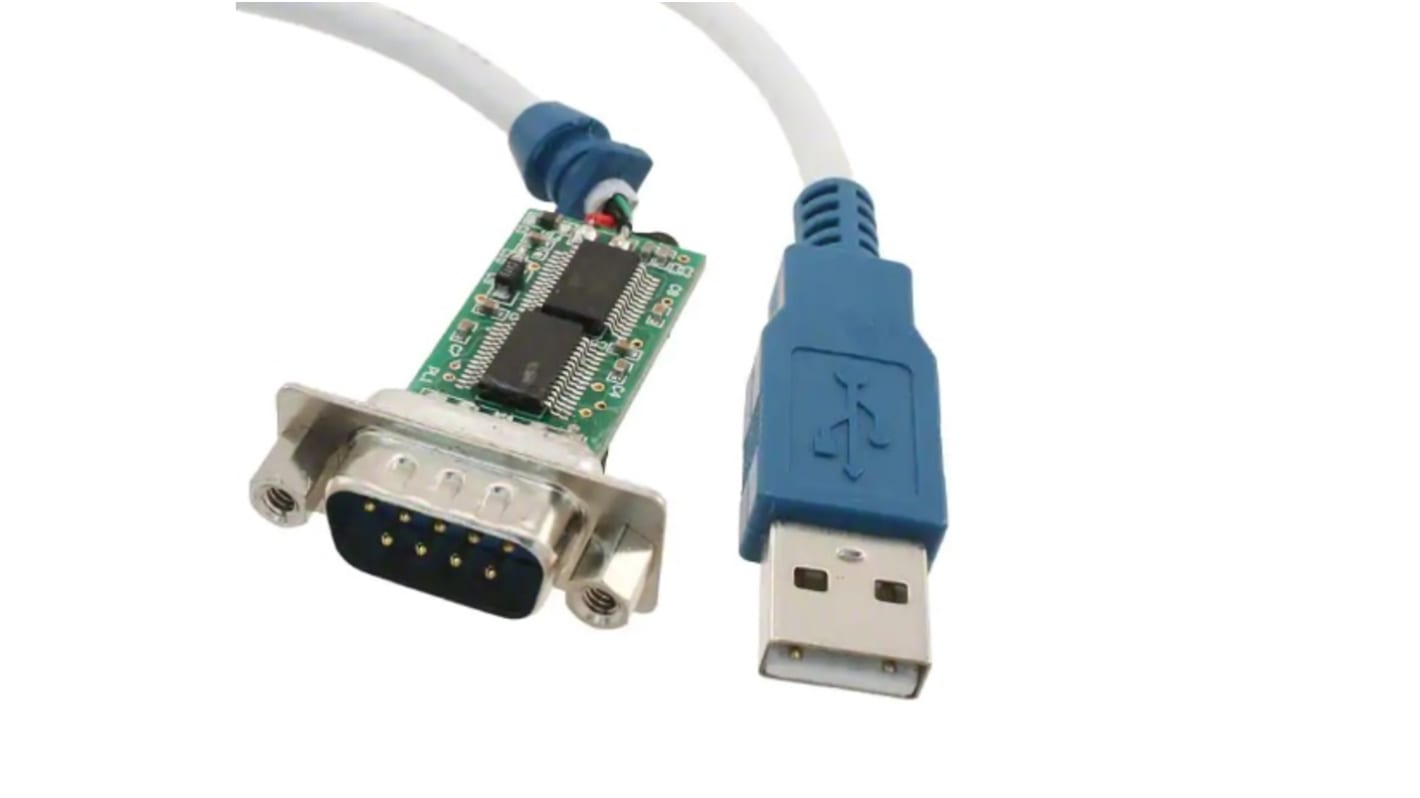

FTDI Chip RS232 USB A DB-9 Male Converter Cable
- RS庫存編號:
- 216-8425
- 製造零件編號:
- UC232R-10-NE
- 製造商:
- FTDI Chip
- RS庫存編號:
- 216-8425
- 製造零件編號:
- UC232R-10-NE
- 製造商:
- FTDI Chip
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
The FTDI Chip UC232R "ChiPi" module is a basic minimum component USB - RS232 converter. Using the FT232R with an RS232 level converter and a few additional components, the UC232R is a CE and FCC approved module that is one of the simplest USB - RS232 solutions around. Using a standard DB9 connector and powered from the USB port, the ChiPi can be used with the VCP drivers to provide a COM port on a PC which is capable of communication rates with RS232 devices from 300 baud up to 230kBaud.
UC232R Converter Cable provides USB to RS232 (DB9) interface
FCC and CE Class B Approval
Full design files available from FTDI website
FT232RL provides single chip USB to
asynchronous serial data transfer interface
FCC and CE Class B Approval
Full design files available from FTDI website
FT232RL provides single chip USB to
asynchronous serial data transfer interface
規格
Attribute | Value |
|---|---|
| Bus Type | RS232 |
| Connector A | USB A |
| Connector B | DB-9 |
| Connector B Gender | Male |
| USB Standard | USB 2.0 |
| Maximum Baud Rate | 230kbit/s |
