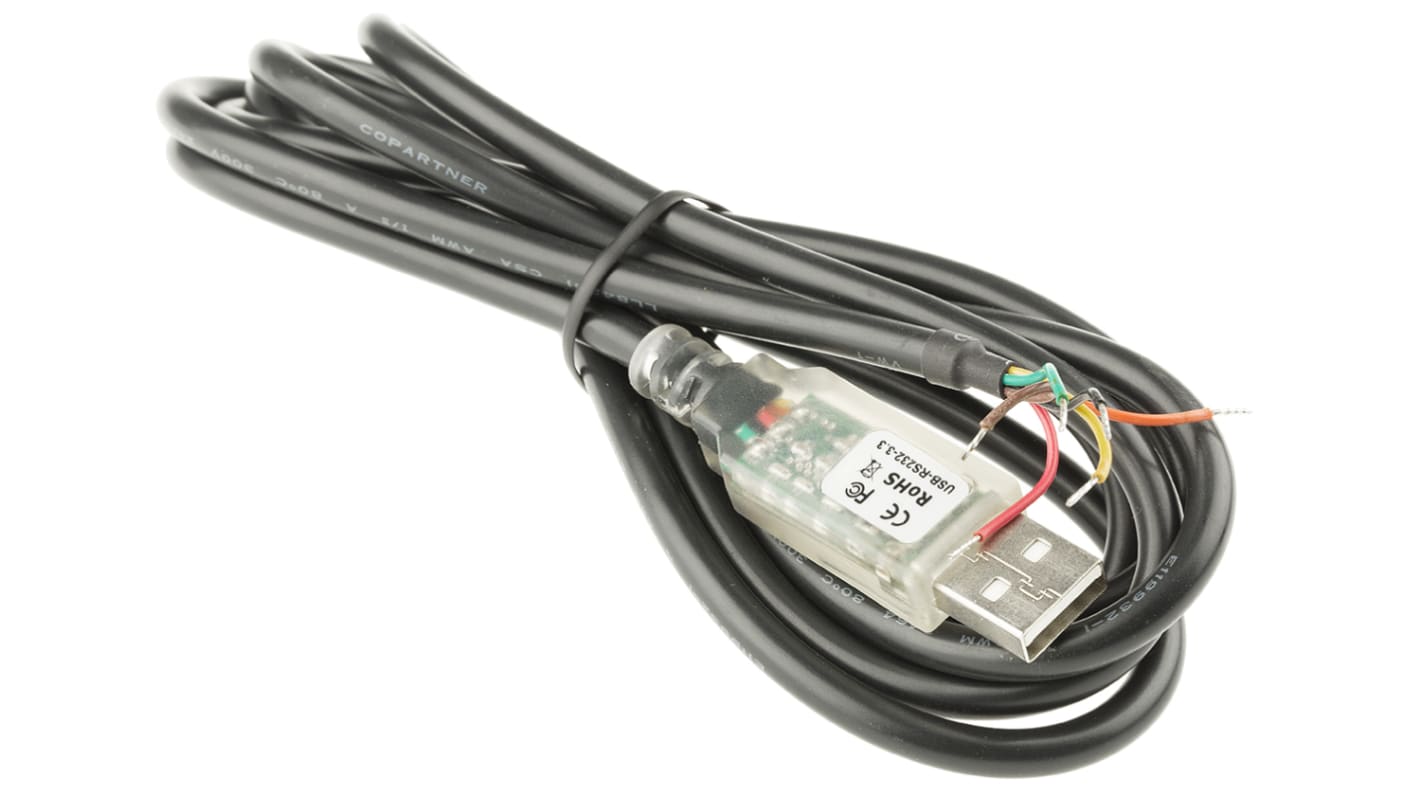

FTDI Chip RS232 USB A Male to Cable End Converter Cable
- RS庫存編號:
- 730-0158
- 製造零件編號:
- USB-RS232-WE-1800-BT_3.3
- 製造商:
- FTDI Chip
- RS庫存編號:
- 730-0158
- 製造零件編號:
- USB-RS232-WE-1800-BT_3.3
- 製造商:
- FTDI Chip
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
USB to RS-232 Converter Cables, FTDI Chip
These cables provide a fast and simple method to convert a serial RS-232 signal to USB. The USB connector contains a small circuit board featuring the FTDI FT232RQ serial UART interface IC to handle all the USB signalling and protocols. There are two LEDs to indicate data being received and transmitted. They have a maximum signalling rate of 1Mbaud. These converters are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux: all of which are available, royalty-free from FTDI website. http://www.ftdichip.com
The other end of the cable has bare tinned wires and can be customised to your needs using various connectors. The cables are available in two lengths and with an optional power supply output of +3.3V or +5Vdc
The other end of the cable has bare tinned wires and can be customised to your needs using various connectors. The cables are available in two lengths and with an optional power supply output of +3.3V or +5Vdc
Features and Benefits.
No Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_0.0 - (RS 687-7828), cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_0.0 - (RS 687-7815), cable length 5 m
+3.3V Optional Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_3.3 - (RS 730-0158), cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_3.3 - (RS 730-0152), cable length 5 m
+5V Optional Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_5.0 - (RS 687-7821), cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_5.0 - (RS 687-7819), cable length 5 m
FTDI Chip USB-RS232-WE-1800-BT_0.0 - (RS 687-7828), cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_0.0 - (RS 687-7815), cable length 5 m
+3.3V Optional Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_3.3 - (RS 730-0158), cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_3.3 - (RS 730-0152), cable length 5 m
+5V Optional Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_5.0 - (RS 687-7821), cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_5.0 - (RS 687-7819), cable length 5 m
Typical Applications.
• USB to serial RS232 level converter.
• Upgrading legacy peripherals to USB.
• Interface microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB instrumentation OC interface.
• USB Industrial control.
• USB Password protected file transfers.
• Upgrading legacy peripherals to USB.
• Interface microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB instrumentation OC interface.
• USB Industrial control.
• USB Password protected file transfers.
Converter Cables Available.
No Voltage Output.
• Stock number 6877828, Part USB-RS232-WE-1800-BT 0.0, black, cable length 1.8m.
• Stock number 6877815, Part USB-RS232-WE-5000-BT 0.0, black, cable length 5 m.
+3.3 V Optional Output Voltage
• Stock number 7300158, Part USB-RS232-WE-1800-BT_3.3, black, cable length 1.8 m.
• Stock number 7300152, Part USB-RS232-WE-5000-BT_3.3, black, cable length 5 m.
+5 V Optional Voltage Output.
• Stock number 6877821, Part USB-RS232-WE-1800-BT 5.0, black, cable length 1.8 m.
• Stock number 6877819, Part USB-RS232-WE-5000-BT 5.0, black, cable length 5 m.
Converter Support Available.
Converters are supported with Microsoft WHQL certified VCP (Virtual Com Port) drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from FTDI website. http://www.ftdichip.com.
Standards
RoHS Compliant
Approvals
FCC, CE
Approvals
FCC, CE, RoHS compliant.
規格
Attribute | Value |
|---|---|
| Bus Type | RS232 |
| Connector A | USB A |
| Connector A Gender | Male |
| Connector B | Cable End |
| USB Standard | USB 2.0 |
