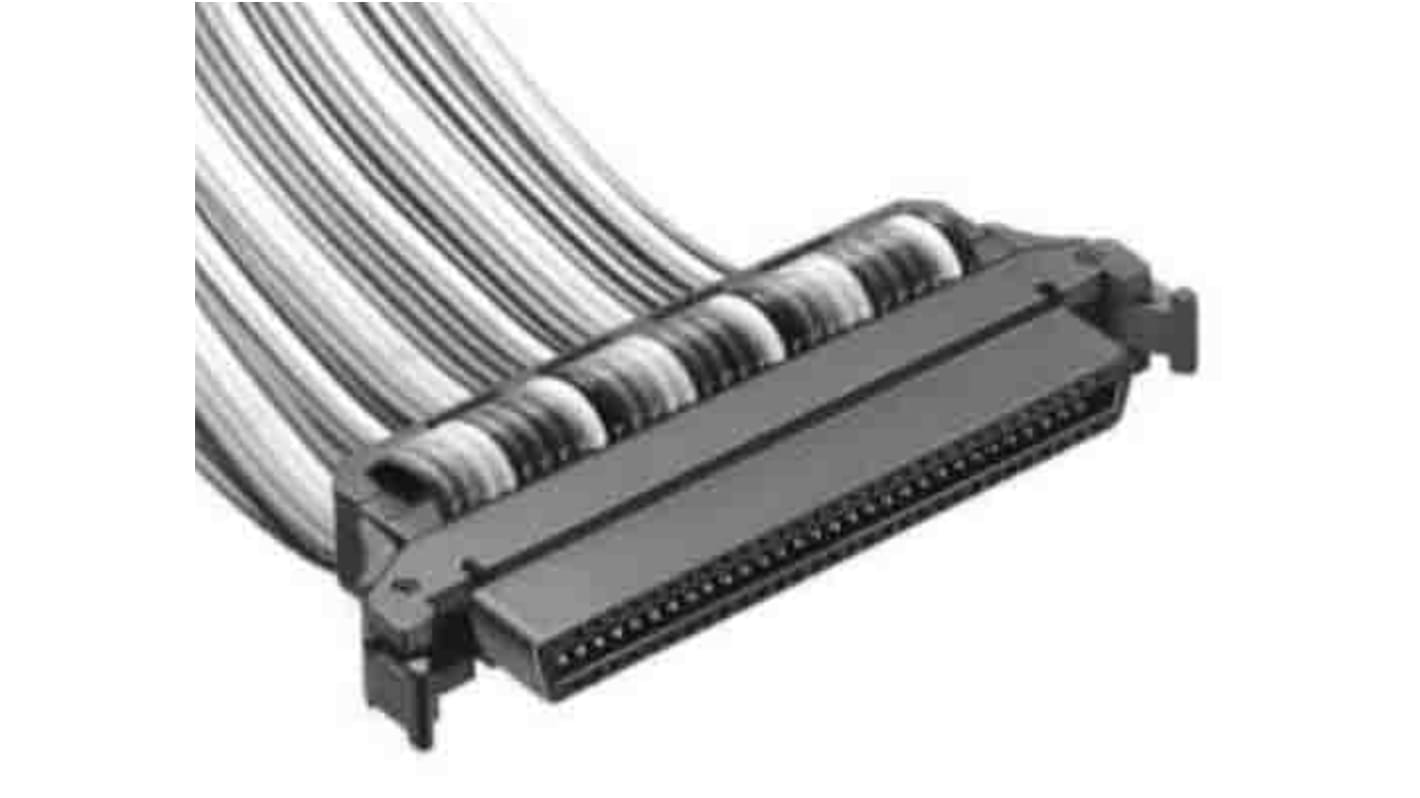

Hirose 32-Contact Female Interface Module, 500mA
- RS庫存編號:
- 184-9995
- 製造零件編號:
- FX2B-32SA-1.27R
- 製造商:
- Hirose
當前暫無庫存，可於2024/8/6發貨，3 工作日送達。
已增加
單價 个（每套 80）
HK$52.317
| 單位 | Per unit | Per Tray* |
| 80 - 320 | HK$52.317 | HK$4,185.36 |
| 400 + | HK$47.085 | HK$3,766.80 |
| * 參考價格 | ||
- RS庫存編號:
- 184-9995
- 製造零件編號:
- FX2B-32SA-1.27R
- 製造商:
- Hirose
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- ID
產品詳細資訊
1.27mm Pitch Multi-function Two Piece Connectors
Various connection with various product line
Easy One-Touch Operation
Board to board type - Prevents flux penetration, Stack height 12mm to 16mm, Mis-insertion preventive mechanism
Board to cable type - Positive lock with easy operation, Applicable cable/ 28 AWG
SMT type-Robust design with metal hold-down
Easy One-Touch Operation
Board to board type - Prevents flux penetration, Stack height 12mm to 16mm, Mis-insertion preventive mechanism
Board to cable type - Positive lock with easy operation, Applicable cable/ 28 AWG
SMT type-Robust design with metal hold-down
規格
Attribute | Value |
|---|---|
| Gender | Female |
| Wire Size | 28 AWG |
| Number of Contacts | 32 |
| Body Orientation | Straight |
| Voltage Rating | 125 V ac, 300 V |
| Current Rating | 500mA |
| Dimensions | 35.45 x 7 x 19.1mm |
| Depth | 19.1mm |
| Length | 35.45mm |
| Width | 7mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +85°C |
