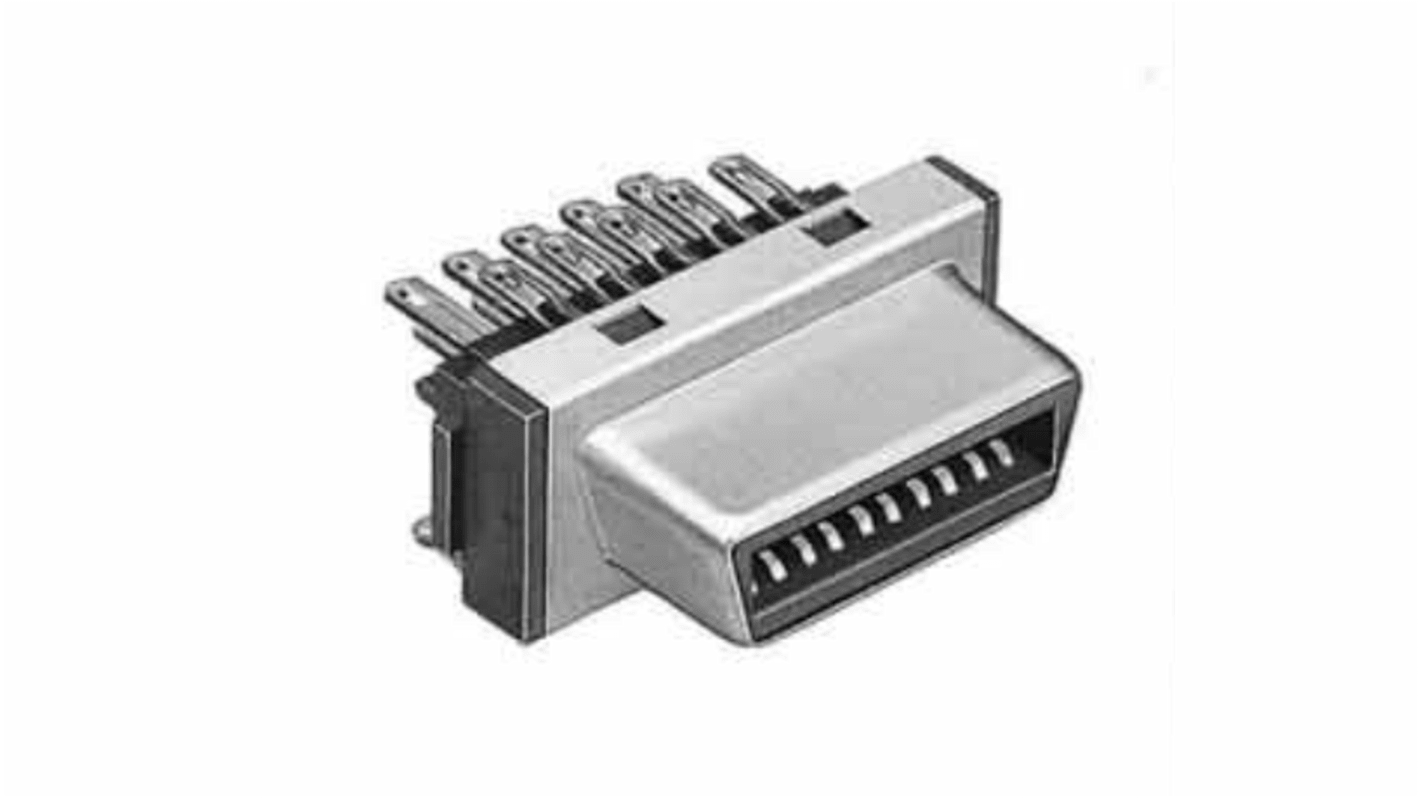

Hirose 20-Contact Female Interface Module, 1A
- RS庫存編號:
- 185-0460
- 製造零件編號:
- FI40B-20S(50)
- 製造商:
- Hirose
20 在3 工作日內發貨 (海外庫存)
57 在3 工作日內發貨 (海外庫存)
已增加
單價 个
HK$61.64
| 單位 | Per unit |
| 1 - 4 | HK$61.64 |
| 5 - 24 | HK$60.10 |
| 25 - 49 | HK$58.60 |
| 50 + | HK$57.13 |
- RS庫存編號:
- 185-0460
- 製造零件編號:
- FI40B-20S(50)
- 製造商:
- Hirose
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊
Half Pitch Interface Connectors The FI series is a connector developed as a half pitch I / F of the FANUC CNC equipment system 18, 16 series. For the connection method, 20 poles of pressure welding, solder type and 15 poles of solder type are available.
規格
Attribute | Value |
|---|---|
| Gender | Female |
| Number of Contacts | 20 |
| Body Orientation | Vertical |
| Test Proof Voltage | 500 (1 min)V ac |
| Voltage Rating | 250 V ac |
| Current Rating | 1A |
| Dimensions | 22.15 x 19.5 x 9.2mm |
| Depth | 9.2mm |
| Length | 22.15mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +85°C |
| Width | 19.5mm |
