- RS庫存編號:
- 667-0043
- 製造零件編號:
- 2315146
- 製造商:
- Phoenix Contact
- RS庫存編號:
- 667-0043
- 製造零件編號:
- 2315146
- 製造商:
- Phoenix Contact
法例與合規
- COO (Country of Origin):
- US
產品詳細資訊

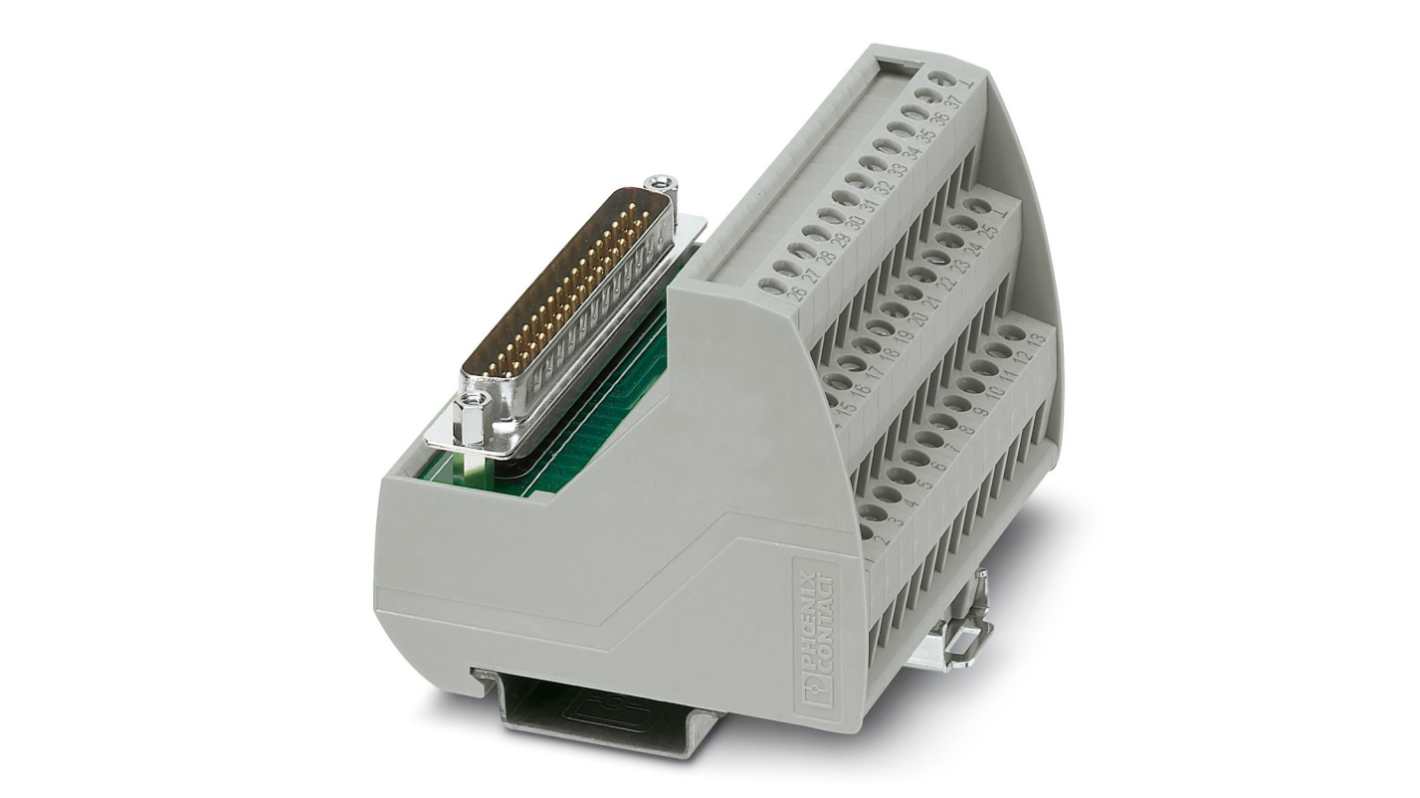

Phoenix Contact Interface Module, M3 Screw Thread, 8mm Wire Stripping Length - VIP-3/SC/D37SUB/M - 2315146
Make linking devices to your electrical setup a breeze with this interface module from Phoenix Contact. Its plug-and-play design, with a 1:1 connection, makes signal distribution glitch-free. The 3-row design means 37 contacts are available, so you can run lots of circuits at once, boosting your workflow. The unit's secure D-sub connector is just the thing for maintaining reliable signal transmission in challenging settings. That's because it offers high integrity between conductors while shielding against EMI, which supports uninterrupted performance.
Robust polyamide housing material ensures the module handles mechanical stress and corrosion to deliver a long service life. Compact dimensions of 62 (H) x 72.7 (W) x 69mm (D) mean it fits neatly into tight areas in your infrastructure. DIN-rail mounting makes installation snappy and straightforward without specialist tools.
Robust polyamide housing material ensures the module handles mechanical stress and corrosion to deliver a long service life. Compact dimensions of 62 (H) x 72.7 (W) x 69mm (D) mean it fits neatly into tight areas in your infrastructure. DIN-rail mounting makes installation snappy and straightforward without specialist tools.
Features & Benefits
• 1.2kV surge protection safeguards against hazardous over-voltages
• 24 to 12AWG for wide compatibility with commonly used wires
• UL 94-V0 rating means it's self-extinguishing in under 10 seconds in the event of a fire
• Performs reliably in a temperature range between -20°C and +50°C to suit harsh environments
• 24 to 12AWG for wide compatibility with commonly used wires
• UL 94-V0 rating means it's self-extinguishing in under 10 seconds in the event of a fire
• Performs reliably in a temperature range between -20°C and +50°C to suit harsh environments
規格
Attribute | Value |
---|---|
Gender | Male |
Wire Size | 24 → 12 AWG |
Number of Contacts | 37 |
Connector Type | D-sub |
Body Orientation | Straight |
Mounting Type | DIN Rail |
Voltage Rating | 25 V ac, 60 V dc |
Current Rating | 2A |
Cable CSA | 0.2 → 4mm² |
Dimensions | 72.7 x 62 x 69mm |
Depth | 69mm |
Length | 72.7mm |
Minimum Operating Temperature | -20°C |
Width | 62mm |
Series | VIP-3 |
Maximum Operating Temperature | +50°C |
