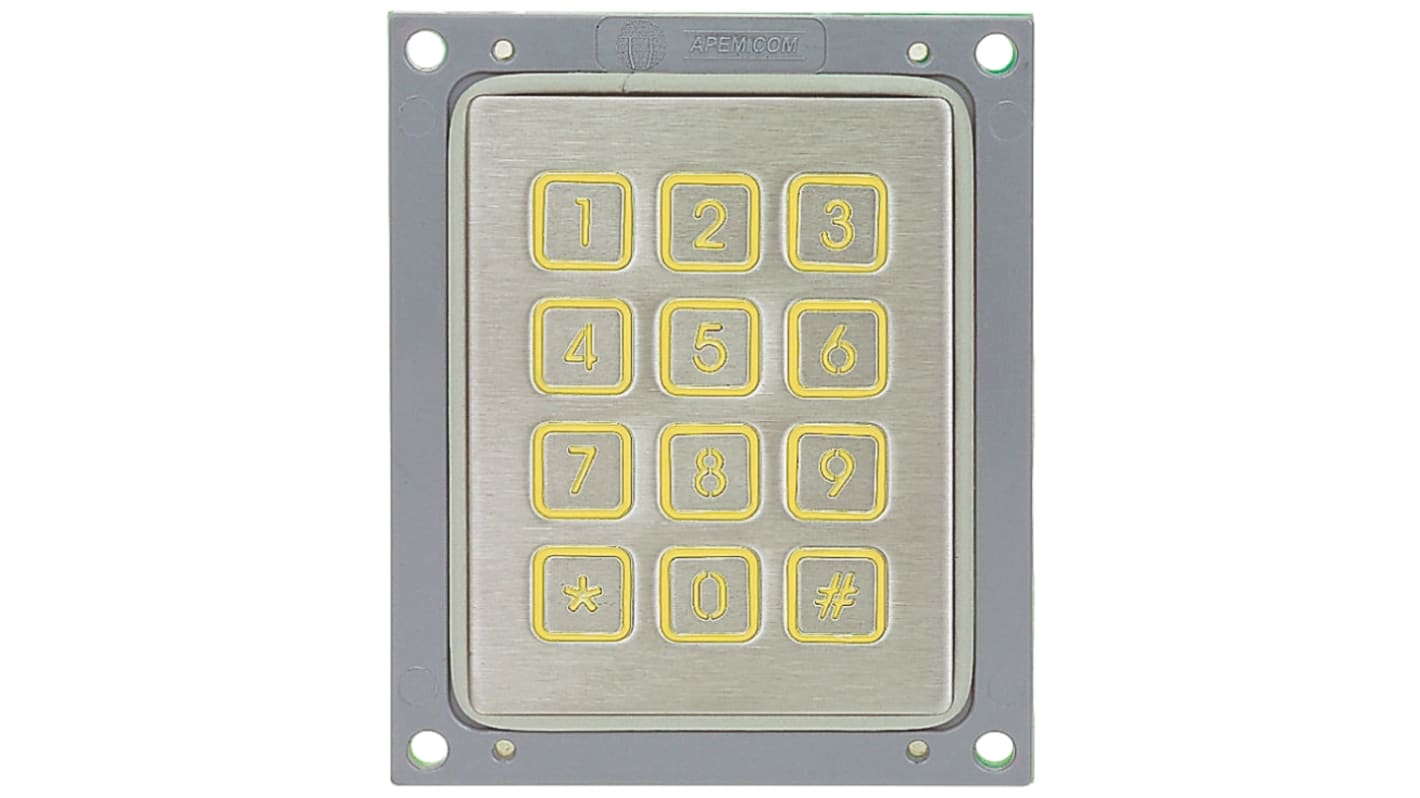

APEM IP65 12 Key Stainless Steel Keypad
- RS庫存編號:
- 133-197
- 製造零件編號:
- T8P0120017050
- 製造商:
- APEM
- RS庫存編號:
- 133-197
- 製造零件編號:
- T8P0120017050
- 製造商:
- APEM
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- IT
產品詳細資訊
Stainless Steel Keypads - 8P Series
Stainless steel keypads, particularly resistant to harsh environments, consisting of stainless steel single keys, mounted in a front face.
Illuminated versions are back lit with yellow LEDs, particularly suited to partially sighted users
12 and 16 key formats available
Sealing to IP65
Operational life > 1 million cycles per key
Contact rating 50mA @24Vdc
Contact Resistance 8 to 20 Ω
Temperature rating -20 to +70°C
12 and 16 key formats available
Sealing to IP65
Operational life > 1 million cycles per key
Contact rating 50mA @24Vdc
Contact Resistance 8 to 20 Ω
Temperature rating -20 to +70°C
規格
Attribute | Value |
|---|---|
| Keypad Layout | 4 x 3 |
| Number of Keys | 12 |
| IP Rating | IP65 |
| Mechanical Life Per Key | 1000000 |
| Actuator Material | Stainless Steel |
| Depth Behind Panel | 10mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -20 → +70°C |
