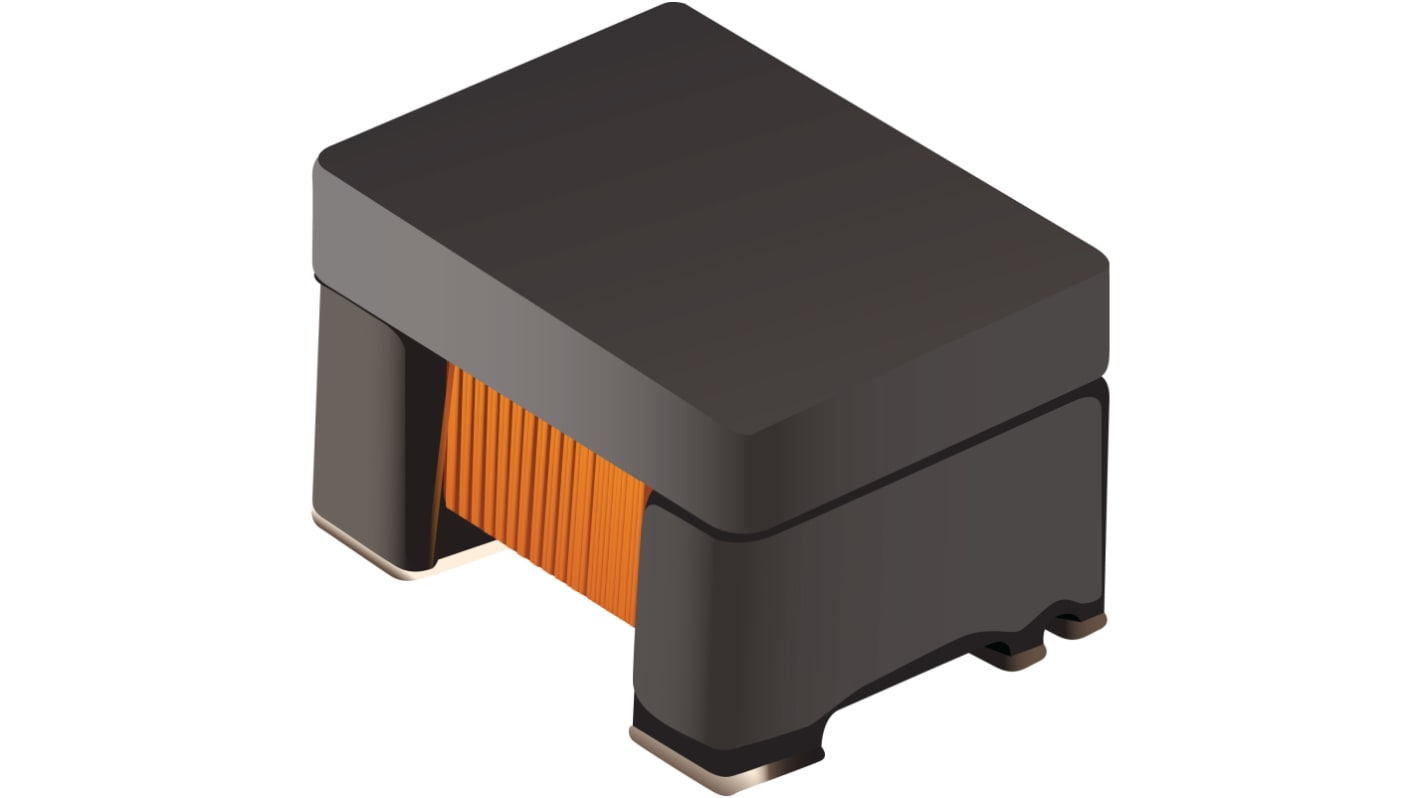

Surface Mount Lan Ethernet Transformer, 4.7 x 3.3 x 2.9mm

RS庫存編號:: 238-0327
製造零件編號:: SM453230-231N7YP
製造商:: Bourns

Surface Mount Lan Ethernet Transformer, 4.7 x 3.3 x 2.9mm

1950 現貨庫存，可於3工作日發貨。

HK$6.874

單位	Per unit	Per Tape*
5 - 20	HK$6.874	HK$34.37
25 - 45	HK$6.75	HK$33.75
50 - 95	HK$6.63	HK$33.15
100 - 495	HK$6.51	HK$32.55
500 +	HK$6.392	HK$31.96
* 參考價格

RS庫存編號:: 238-0327
製造零件編號:: SM453230-231N7YP
製造商:: Bourns

產品概覽和技術數據資料表

Datasheet - SM453230-231N7YP

法例與合規

COO (Country of Origin):: TW

產品詳細資訊

The Bourns Electronics 1/2.5/5 Gb Ethernet/PoE+ chip-LAN transformer unlike traditional LAN magnetics built with multiple toroidal core transformers and common mode chokes in a single module, the chip-LAN transformer is a discrete, centre-tapped component wound on a drum core and capped with a ferrite plate to emulate the result of the close magnetic path of a toroid core. A common mode chip inductor is paired with a chip-LAN transformer to provide EMI suppression.

IEEE 802.3 Ethernet compatible
Compatible with 10G Base-T
PoE+ capable and halogen free
Discrete transformers and common mode chip inductors for flexible PCB layout
Expanded temperature range of -40 to +85 °C

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

規格

Attribute	Value
Number of Output Ports	1
Insertion Loss	-1.5dB
Mounting Type	Surface Mount
Dimensions	4.7 x 3.3 x 2.9mm
Depth	2.9mm
