- RS庫存編號:
- 908-7286
- 製造零件編號:
- OPV302
- 製造商:
- Optek
- RS庫存編號:
- 908-7286
- 製造零件編號:
- OPV302
- 製造商:
- Optek
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- MX
產品詳細資訊

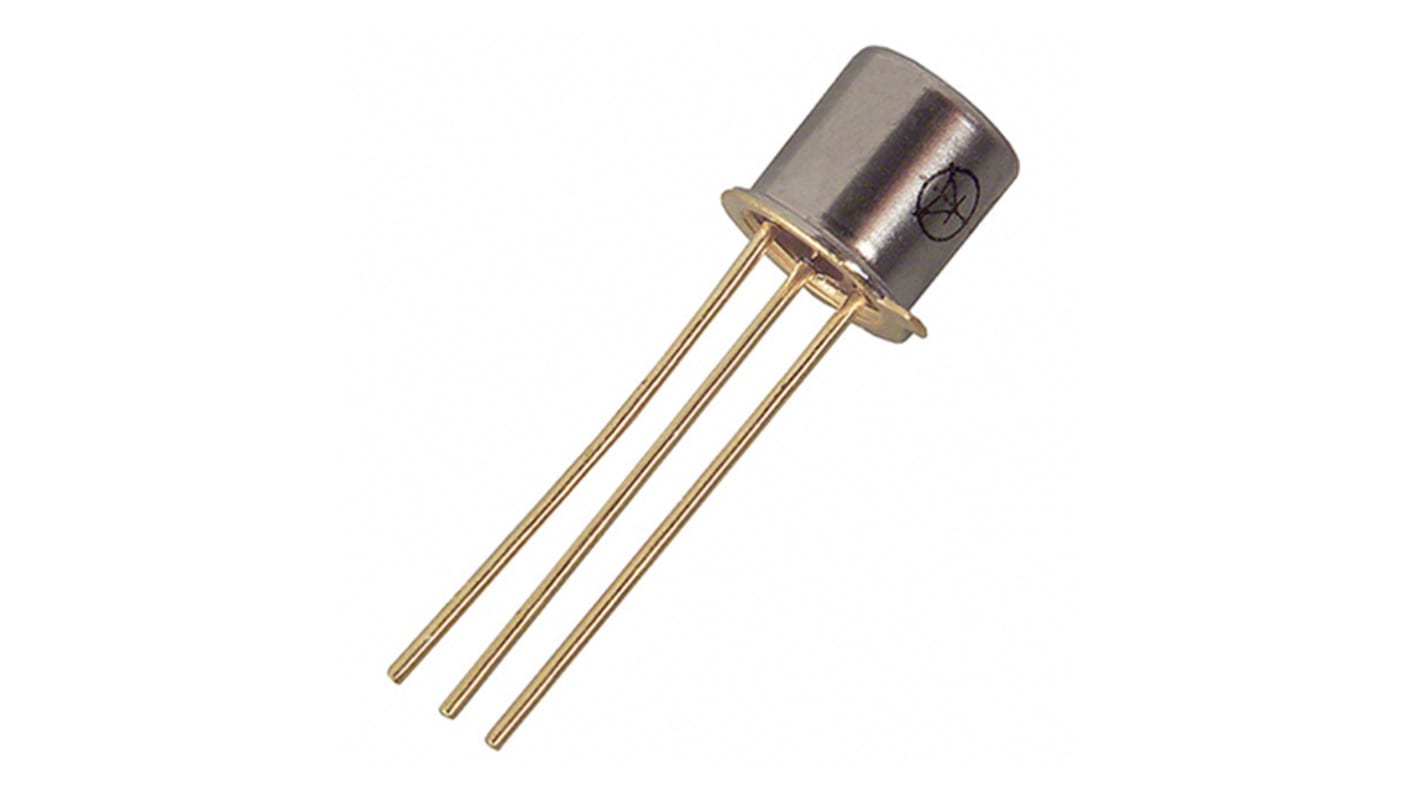

Optek OPV Series Surface Mount Laser
Optek OPV3 series of VCEL is vertical mounted, packaged in a TO-46 package. VCELS are highly adaptable and can be used within a wide range of sensing applications in comparison to traditional infrared LEDs.
Applications include non-contact position sensing, photoelectric sensors, optical encoders & light curtain.
Laser Diodes, OSRAM Opto Semiconductors
規格
Attribute | Value |
---|---|
Peak Wavelength | 860nm |
Laser Type | VCSEL |
Optical Output Power | 1.5mW |
Number of Pins | 3 |
Mounting Type | Through Hole |
Perpendicular Beam Divergence FWHM | 4° |
Parallel Beam Divergence FWHM | 4° |
Maximum Operating Current | 48mA |
Dimensions | 4.72 (Dia.) x 18.03 Hmm |
Height | 18.03mm |
Diameter | 4.72mm |
Series | OPV302 |
Supply Voltage Range | Maximum of 2.2 V |
Reverse Voltage | 5V |
Maximum Supply Voltage | 2.2V |
Package Type | TO-46 |
