- RS庫存編號:
- 712-5061
- 製造零件編號:
- TM047NDH03
- 製造商:
- Tianma
此產品已停售
- RS庫存編號:
- 712-5061
- 製造零件編號:
- TM047NDH03
- 製造商:
- Tianma
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

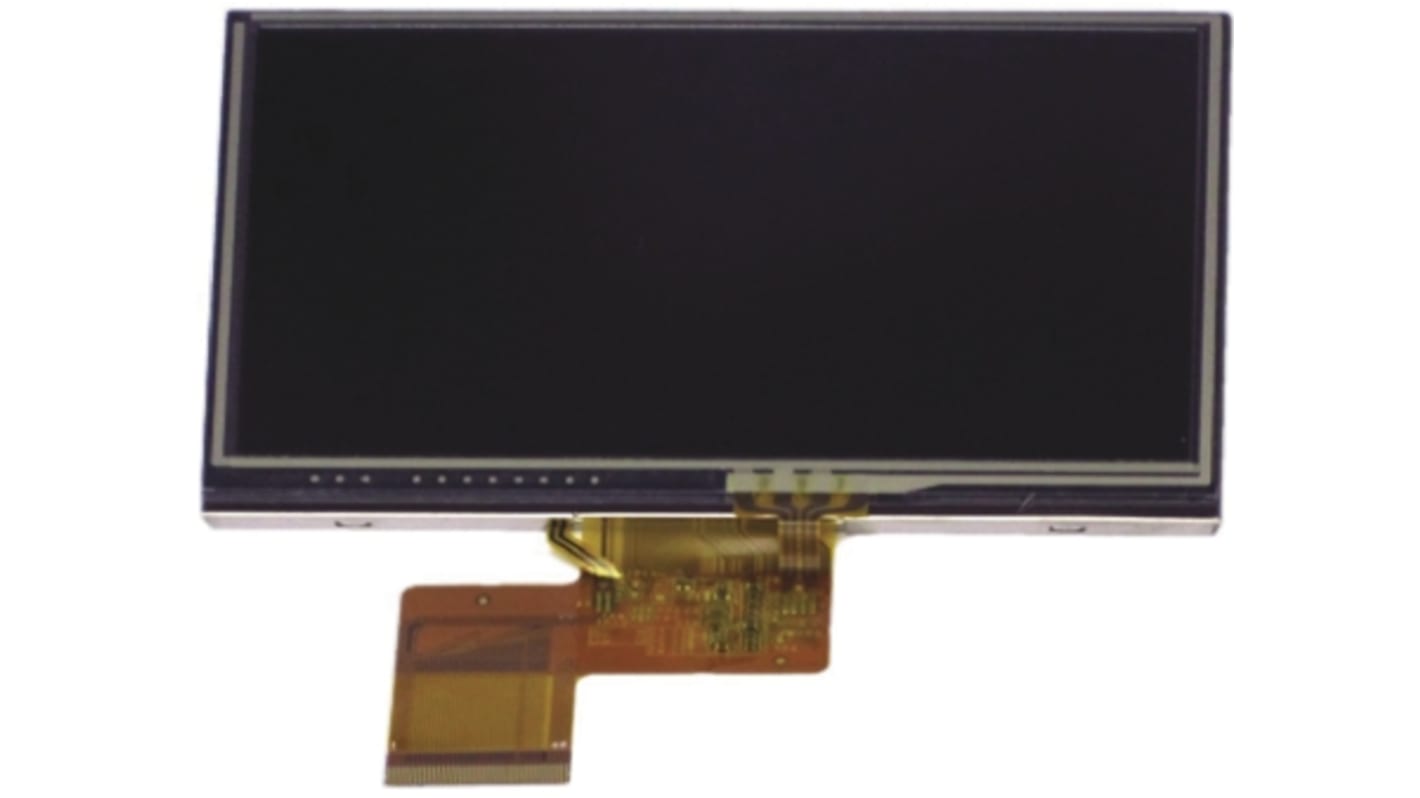

Tianma TFT Colour LCD Panels
A range of LED backlit VGA and QVGA TFT LCD display panels, from Tianma.
Colour Graphic Displays
規格
Attribute | Value |
---|---|
Diagonal Display Size | 4.7in |
Resolution | 480 x 272pixels |
Supply Voltage | 3.6 V |
Backlight Type | LED |
Dimensions | 144.3 x 3.8 x 72.5mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Operating Temperature Range | -20 → +60°C |
Response Time | 40ms |
Depth | 3.8mm |
Series | TM04 |
Number of Colours | 262,144 |
Width | 144.3mm |
Voltage Rating | 5V |
Contrast Ratio | 500:1 |
Height | 72.5mm |
Current Rating | 25mA |
Power Supply Included | Yes |
