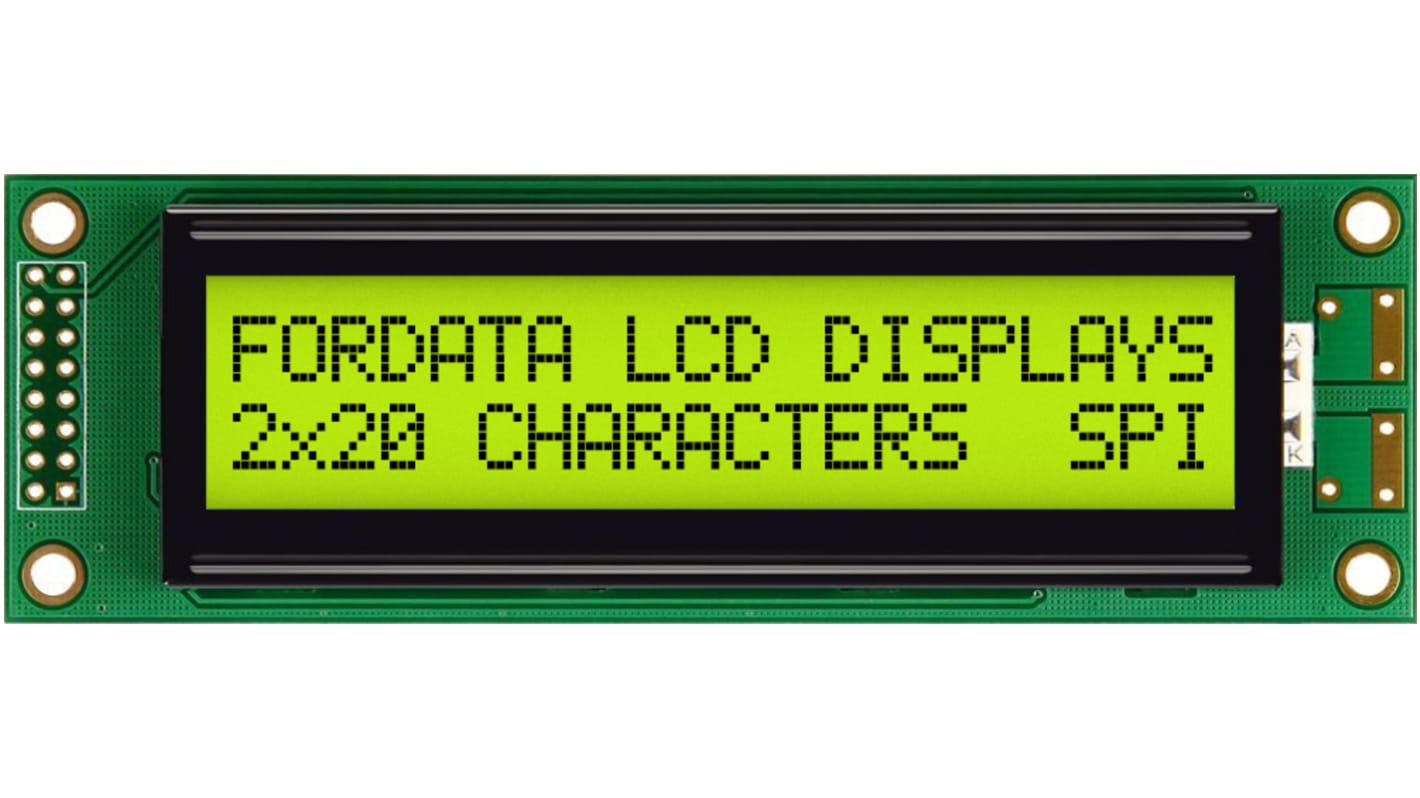

Fordata FC2002D01-FHYYBW-51SE FC Alphanumeric LCD Alphanumeric Display, Green, Yellow on Yellow-Green, 2 Rows by 20
- RS庫存編號:
- 125-3301
- 製造零件編號:
- FC2002D01-FHYYBW-51SE
- 製造商:
- Fordata
- RS庫存編號:
- 125-3301
- 製造零件編號:
- FC2002D01-FHYYBW-51SE
- 製造商:
- Fordata
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Fordata Transflective Alphanumeric LCD Display STN
The transflective Fordata display series boasts an LED backlit LCD screen presenting crisp and clear text over a green background with a yellow illumination. Its STN display matrix technology enables the screen to function at less power and runs at just 5 V. The monochrome passive-matrix display has superior characteristics against its TN predecessor with a 180° to 270° twisted display molecule over the 90° twist in standard TN displays.
5 x 8 dots with cursor
Build-in controller (SPLC780D or Equivalent)
Power supply +5 V
1/16 duty cycle
Build-in controller (SPLC780D or Equivalent)
Power supply +5 V
1/16 duty cycle
Note
Reverse voltage polarity connection causes irreparable damage.
Caution
Observe ANTI-STATIC precautions when storing or handling these LCD modules.
Fordata Alphanumeric Displays
規格
Attribute | Value |
|---|---|
| Display Type | Alphanumeric |
| Character Matrix | 2 Rows by 20 Characters |
| Character Rows | 2 |
| Characters per Row | 20 |
| Character Width | 3.2mm |
| Character Height | 6mm |
| Viewing Area Dimensions | 83 x 19mm |
| Viewing Area Width | 83mm |
| Viewing Area Height | 18.6mm |
| External Depth | 10.9mm |
| Backlight Type | LED |
| Illumination Colour | Green, Yellow |
| Background Colour | Yellow-Green |
| External Height | 37mm |
| External Dimensions | 116 x 37 x 10.9mm |
| External Width | 116mm |
| Controller Type | SPLC780D |
| Display Mode | Transflective |
| Display Matrix Technology | STN |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Voltage Rating | 5.5V |
| Series | FC |
| Operating Temperature Range | -20 → +70°C |
| Driver Mounting | COB |
| Current Rating | 4mA |
