Flowline EchoPod Series Vertical Mounting Ultrasonic Level Sensor Relay Output

  • RS庫存編號 889-1352
  • 製造零件編號 DL14-10
  • 製造商 Flowline
產品概覽和技術數據資料表
法例與合規
不適用
COO (Country of Origin): US
產品詳細資訊

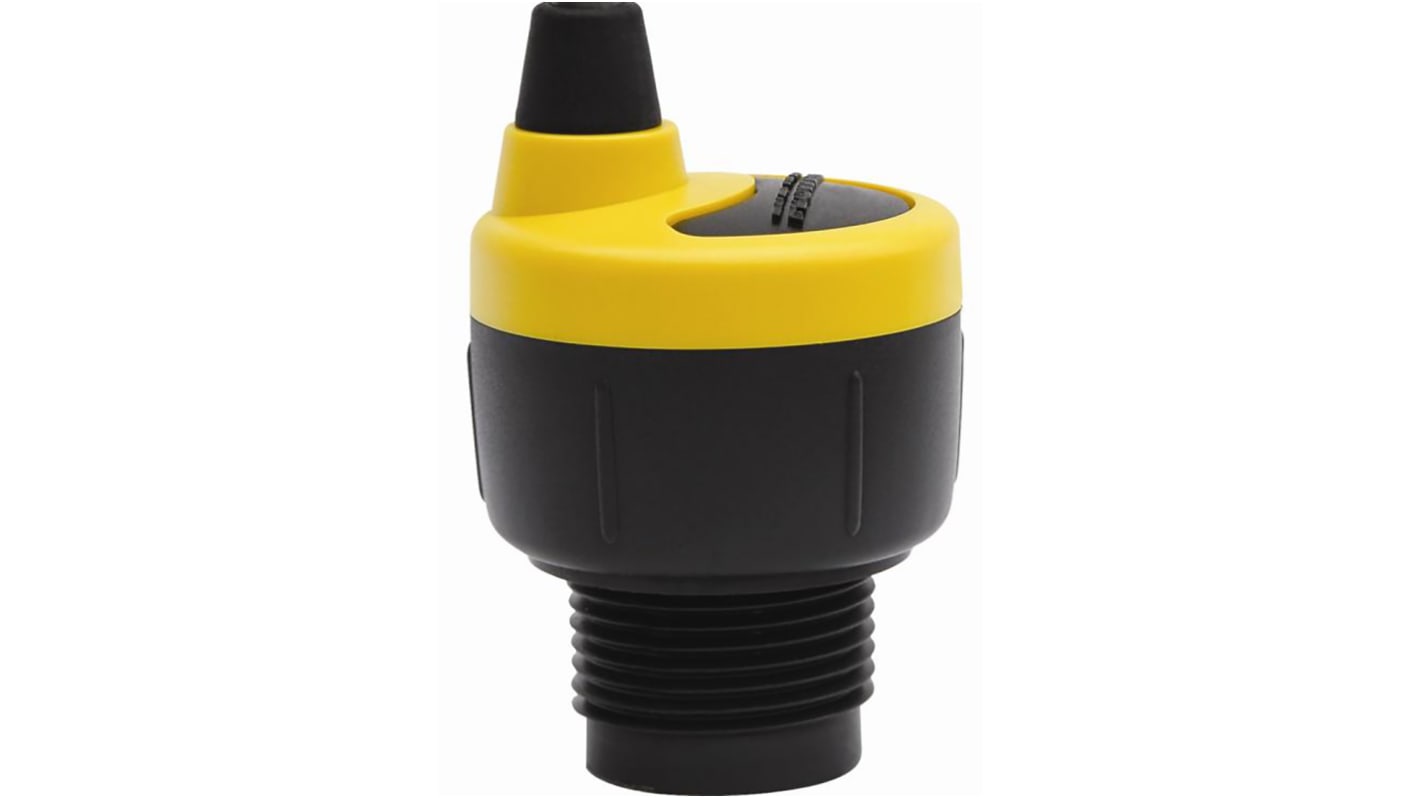

Flowline EchoPod DL14 Ultrasonic Sensor

Robust range of Ultrasonic level sensors provide the user with a non-contact continuous level solution. Thanks to the non-contact design, the Flowline EchoPod DL14 series is the ideal product for use within applications handling corrosive, sticky or dirty liquid. An embedded level controller within the DL14 series can reduce the price of installation, eliminating the cost of external hardware

Features and Benefits

Accurate measurement made possible thanks to automatic temperature compensation
Continuous non-contact measurement up to 49.2"
Optimised for small tank applicationswith a narrow 2" beam width and 2" short dead band
PVDF transducer and 6P Polycarbonate enclosure construction makes the EchoPod DL14 series suitable for corrosive applications

Quick & smiple configuration via Flowline's Free WebCal Software & USB Adapter

Note

Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint & Commander

規格
Attribute Value
Device Type Multi Function Ultrasonic Transmitter
Mounting Type Vertical
Switch Output Relay
Body Material Polycarbonate
Cable Length 1.2m
Minimum Operating Temperature -35°C
Maximum Operating Temperature +60°C
Maximum DC Voltage 24V
Maximum Current 20 mA
Maximum Pressure 30psi
Gasket Material Viton
Standards Met CE, CFMus, RoHS Compliant
Series EchoPod
3 現貨庫存,可於3工作日發貨。
單價 個
HK$ 4,032.83
(不含稅)
單位
Per unit
1 +
HK$4,032.83
