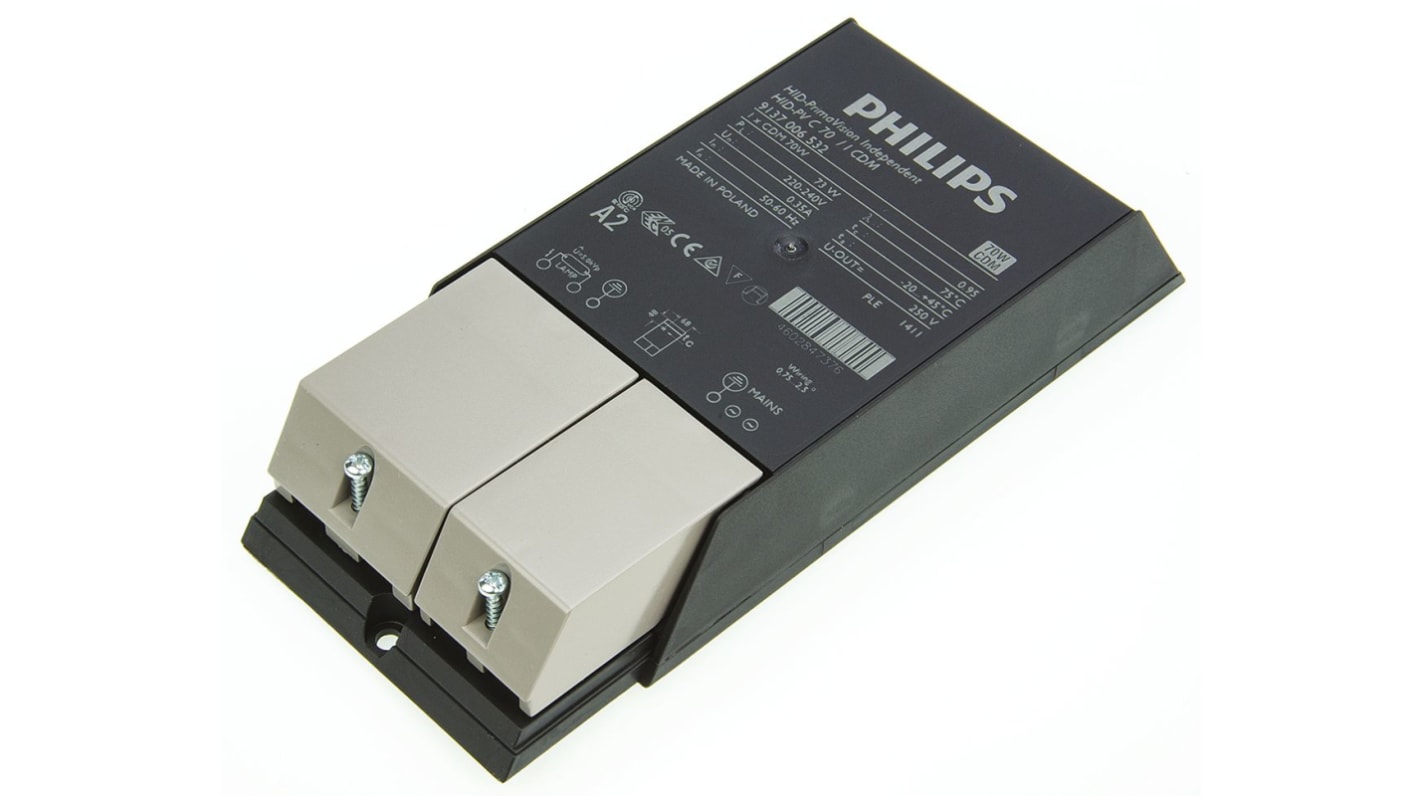

Philips Lighting 70 W Electronic Ceramic Metal Halide Lighting Ballast, 220 → 240 V
- RS庫存編號:
- 544-349
- 製造零件編號:
- HID-PV C 070I
- 製造商:
- Philips Lighting
- RS庫存編號:
- 544-349
- 製造零件編號:
- HID-PV C 070I
- 製造商:
- Philips Lighting
法例與合規
產品詳細資訊
High Frequency for Ceramic Metal Halide Lamps
High frequency, electronic microprocessor controlled ballasts for CDM and other ceramic metal halide lamps giving extended lamp life of 30% against magnetic ballasts
End of life detection
Low energy losses
Push in contacts for ease of wiring
Accurate control of lamp reduces colour differences and initial lumen spread
End of life detection
Low energy losses
Push in contacts for ease of wiring
Accurate control of lamp reduces colour differences and initial lumen spread
Independent - I type
Designed to be mounted behind a false ceiling
Integral strain relief
Integral strain relief
Standard – S type
Designed to be mounted with a luminaire
Horizontal or vertical mounting
Horizontal or vertical mounting
規格
Attribute | Value |
|---|---|
| Wattage | 70 W |
| Ballast Type | Electronic |
| Supported Lamp Type | Ceramic Metal Halide |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| High Frequency | Yes |
| Length | 188 mm |
| Width | 82.7 mm |
| Height | 35mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +45°C |
